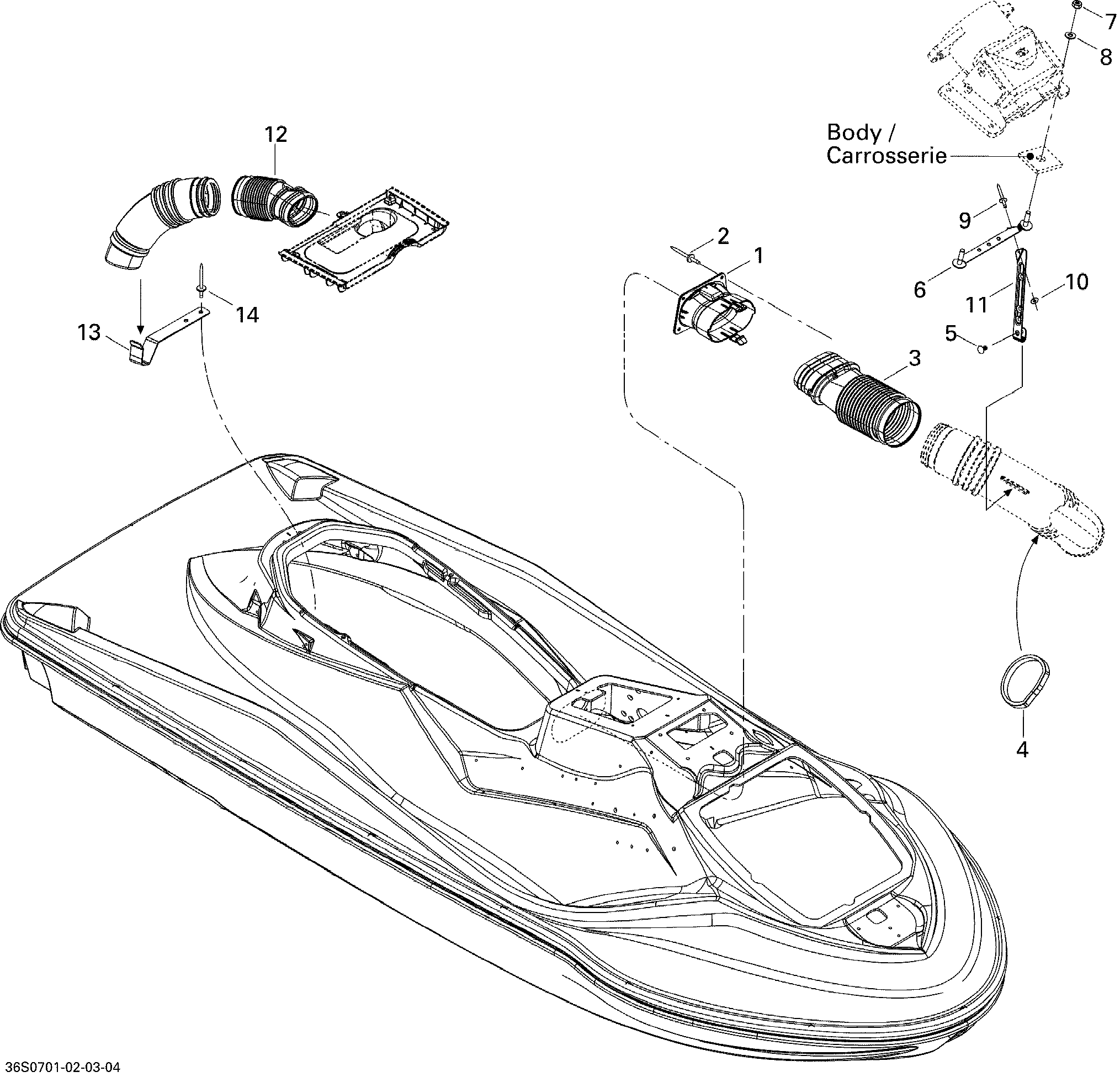

09- Ventilation для BRP GTX STD & Wake - 2007
-
№АртикулНазвание
-
1291001717 Front Air Collector Ass'yFront Air Collector Ass'y
-
2293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
3291001746 Flexible HoseFlexible Hose
-
4293200003 Seal, MeterSeal, Meter
-
5293730010 Dart, BlackDart, Black
-
6277001072 Steering SupportSteering Support
-
7232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
8234081600 Flat Washer 8 mmFlat Washer 8 mm
-
9293150026 Pop Rivet 1/8''Pop Rivet 1/8''
-
10234032600 Flat Washer 3 mmFlat Washer 3 mm
-
11291001886 Hose SupportHose Support
-
12291001748 Flexible HoseFlexible Hose
-
13291001749 Hose SupportHose Support
-
14293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
