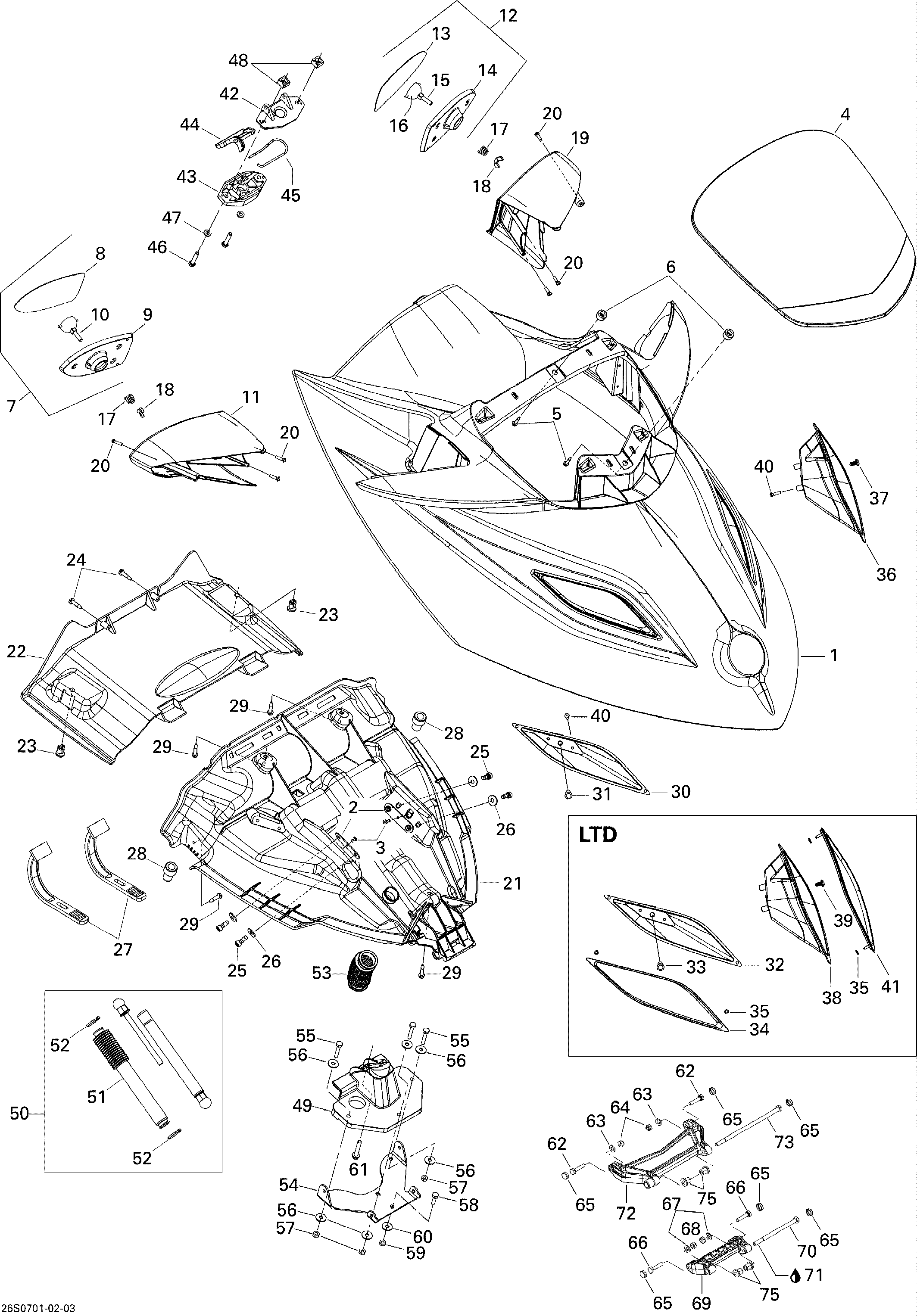

09- Front Storage Compartment для BRP GTX STD & Wake - 2007
-
№АртикулНазвание
-
1269501534 Storage Cover. STD, Includes 1 to 3Storage Cover. STD, Includes 1 to 3
-
1269501562 Storage Cover, Red. WAKE, Includes 1 to 3Storage Cover, Red. WAKE, Includes 1 to 3
-
2277001479 PlatePlate
-
3293150006 Pop Rivet 1/8''Pop Rivet 1/8''
-
4269501612 DeflectorDeflector
-
5243041660 Hex Plastite Screw M4.8 X 16Hex Plastite Screw M4.8 X 16
-
6291001203 SpacerSpacer
-
7269501602 RH Mirror. STDRH Mirror. STD
-
7269501604 RH Mirror. WAKERH Mirror. WAKE
-
8269501328 RH Mirror Ass'y. STDRH Mirror Ass'y. STD
-
8269501292 RH Mirror. WAKERH Mirror. WAKE
-
9269501330 Mirror Frame. STDMirror Frame. STD
-
9269500697 Frame Mirror. WAKEFrame Mirror. WAKE
-
10269501333 Mirror Ball Joint. STDMirror Ball Joint. STD
-
10269500079 Mirror Ball Joint. WAKEMirror Ball Joint. WAKE
-
11269501564 RH Mirror Housing, Red. WAKERH Mirror Housing, Red. WAKE
-
11269501607 RH Mirror Housing. STDRH Mirror Housing. STD
-
12269501603 LH Mirror Housing. STDLH Mirror Housing. STD
-
12269501605 LH Mirror Housing, Red. WAKELH Mirror Housing, Red. WAKE
-
13269501337 LH Mirror Ass'y. STDLH Mirror Ass'y. STD
-
13269501294 LH Mirror. WAKELH Mirror. WAKE
-
14269501330 Mirror Frame. STDMirror Frame. STD
-
14269500697 Frame Mirror. WAKEFrame Mirror. WAKE
-
15269501333 Mirror Ball Joint. STDMirror Ball Joint. STD
-
15269500079 Mirror Ball Joint. WAKEMirror Ball Joint. WAKE
-
16293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
17269500453 Mirror SpringMirror Spring
-
18232661600 Wing Nut M6Wing Nut M6
-
19269501565 LH mirror housing, Red. WAKELH mirror housing, Red. WAKE
-
19269501608 LH Mirror Housing. STDLH Mirror Housing. STD
-
20250000287 Allen Flanged Screw K40x16Allen Flanged Screw K40x16
-
21269501552 Storage Cover Sub-Ass'yStorage Cover Sub-Ass'y
-
22269501610 Access BoardAccess Board
-
23293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
24211000023 Hex Screw 10-14 X 7/8''Hex Screw 10-14 X 7/8''
-
25205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
26234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27269500408 StrapStrap
-
28293830119 Rubber BufferRubber Buffer
-
29211000023 Hex Screw 10-14 X 7/8''Hex Screw 10-14 X 7/8''
-
30269501614 RH Grill Ass'yRH Grill Ass'y
-
31293730016 Dart, BlackDart, Black
-
36269501615 LH Grill Ass'yLH Grill Ass'y
-
37293730016 Dart, BlackDart, Black
-
40250000287 Allen Flanged Screw K40x16Allen Flanged Screw K40x16
-
42269700076 Latch CoverLatch Cover
-
43269000015 Latch BaseLatch Base
-
44269700077 Latch LeverLatch Lever
-
45269700017 Latch SpringLatch Spring
-
46207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
47234061600 Flat Washer M6Flat Washer M6
-
48269501166 Nut Housing Ass'yNut Housing Ass'y
-
49269501553 Shock BaseShock Base
-
50269501555 Shock Ass'yShock Ass'y
-
51269501557 BellowBellow
-
52293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
53293720078 GrommetGrommet
-
54269501639 Pivot SupportPivot Support
-
55207163060 Hex Screw M6 X 30Hex Screw M6 X 30
-
56234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
57232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
58207162060 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
59232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
60234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
61243163560 Plastite Hex Screw M6.8 X 35Plastite Hex Screw M6.8 X 35
-
62211000022 Hex Special Screw M6 X 25Hex Special Screw M6 X 25
-
63234061600 Flat Washer M6Flat Washer M6
-
64232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
65414436900 Snap Cap, BlackSnap Cap, Black
-
66211000022 Hex Special Screw M6 X 25Hex Special Screw M6 X 25
-
67234061600 Flat Washer M6Flat Washer M6
-
68232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
69269501482 Front ArmFront Arm
-
70230060060 Hex Screw M6 X 100Hex Screw M6 X 100
-
71293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
72269501481 Rear ArmRear Arm
-
73230065060 Hex Screw M6 X 150Hex Screw M6 X 150
-
74293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
75269500706 SleeveSleeve
