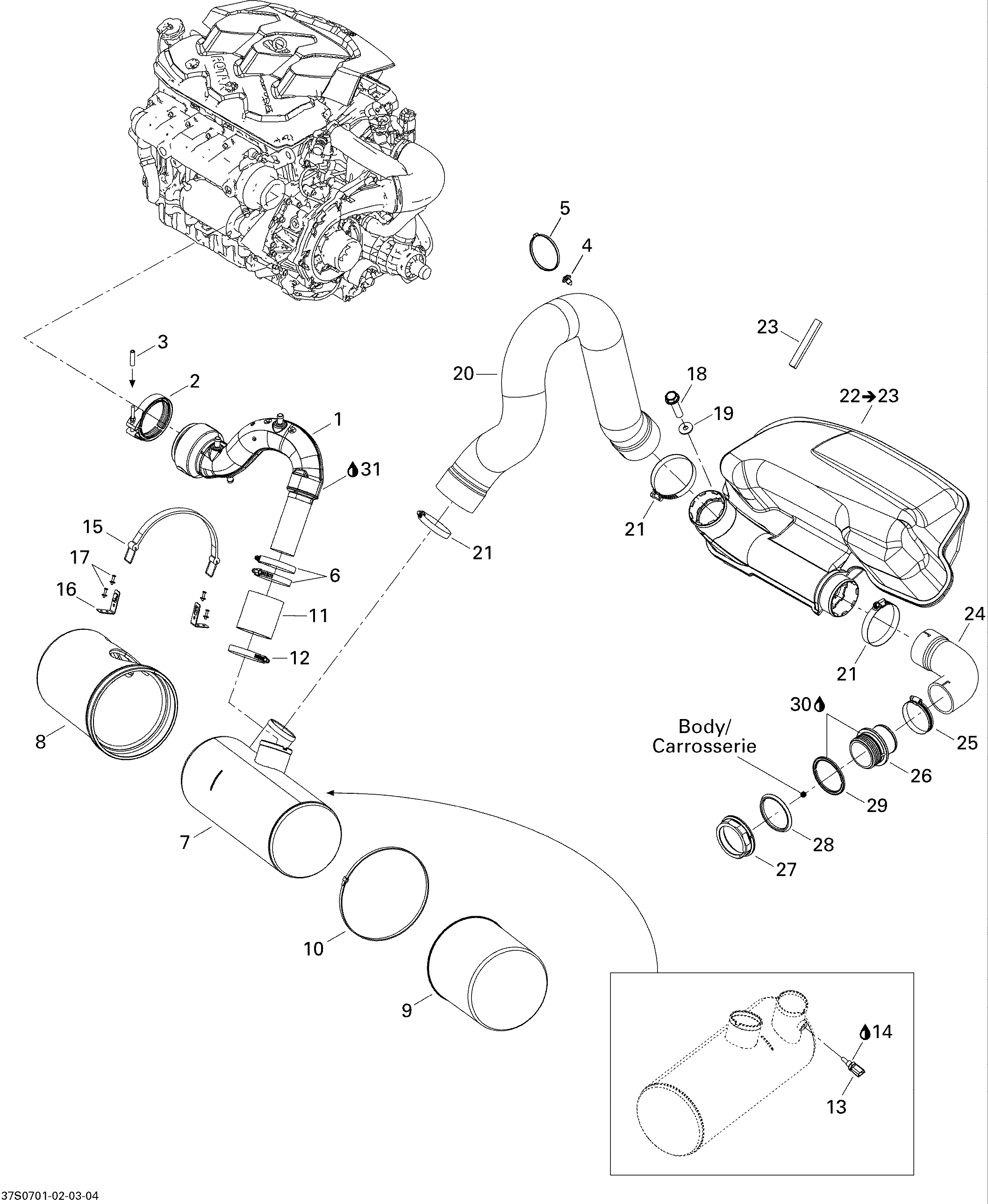

01- Exhaust System для BRP GTX STD & Wake - 2007
-
№АртикулНазвание
-
1274001030 Exhaust PipeExhaust Pipe
-
2274000959 Exhaust ClampExhaust Clamp
-
3415080200 Polyurethane HosePolyurethane Hose
-
4293730040 Mount DartMount Dart
-
5293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
6293650179 Tridon Gear ClampTridon Gear Clamp
-
7274001095 MufflerMuffler
-
8274001343 Muffler CoverMuffler Cover
-
9274001344 Muffler CoverMuffler Cover
-
10293750020 Tie-Rap 838 mmTie-Rap 838 mm
-
11274001302 Exhaust HoseExhaust Hose
-
12293650179 Tridon Gear ClampTridon Gear Clamp
-
13278001016 Temperature SensorTemperature Sensor
-
14293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
15293850036 Fuel Tank StrapFuel Tank Strap
-
16293850076 Strap Clip 90°Strap Clip 90°
-
17293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
18243162560 Hex Flanged Screw M6.3 X 25, PlastiteHex Flanged Screw M6.3 X 25, Plastite
-
19234082600 Flat Washer 8 mmFlat Washer 8 mm
-
20274001296 Front Exhaust HoseFront Exhaust Hose
-
21293650179 Tridon Gear ClampTridon Gear Clamp
-
22274001366 Resonator. Includes 22 to 23Resonator. Includes 22 to 23
-
23293200003 Seal, MeterSeal, Meter
-
24274001299 Rear Exhaust HoseRear Exhaust Hose
-
25293650179 Tridon Gear ClampTridon Gear Clamp
-
26274000843 Exhaust OutletExhaust Outlet
-
27274000224 Nut 72 mmNut 72 mm
-
28274000225 Stabilizing WasherStabilizing Washer
-
29293250041 GasketGasket
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
