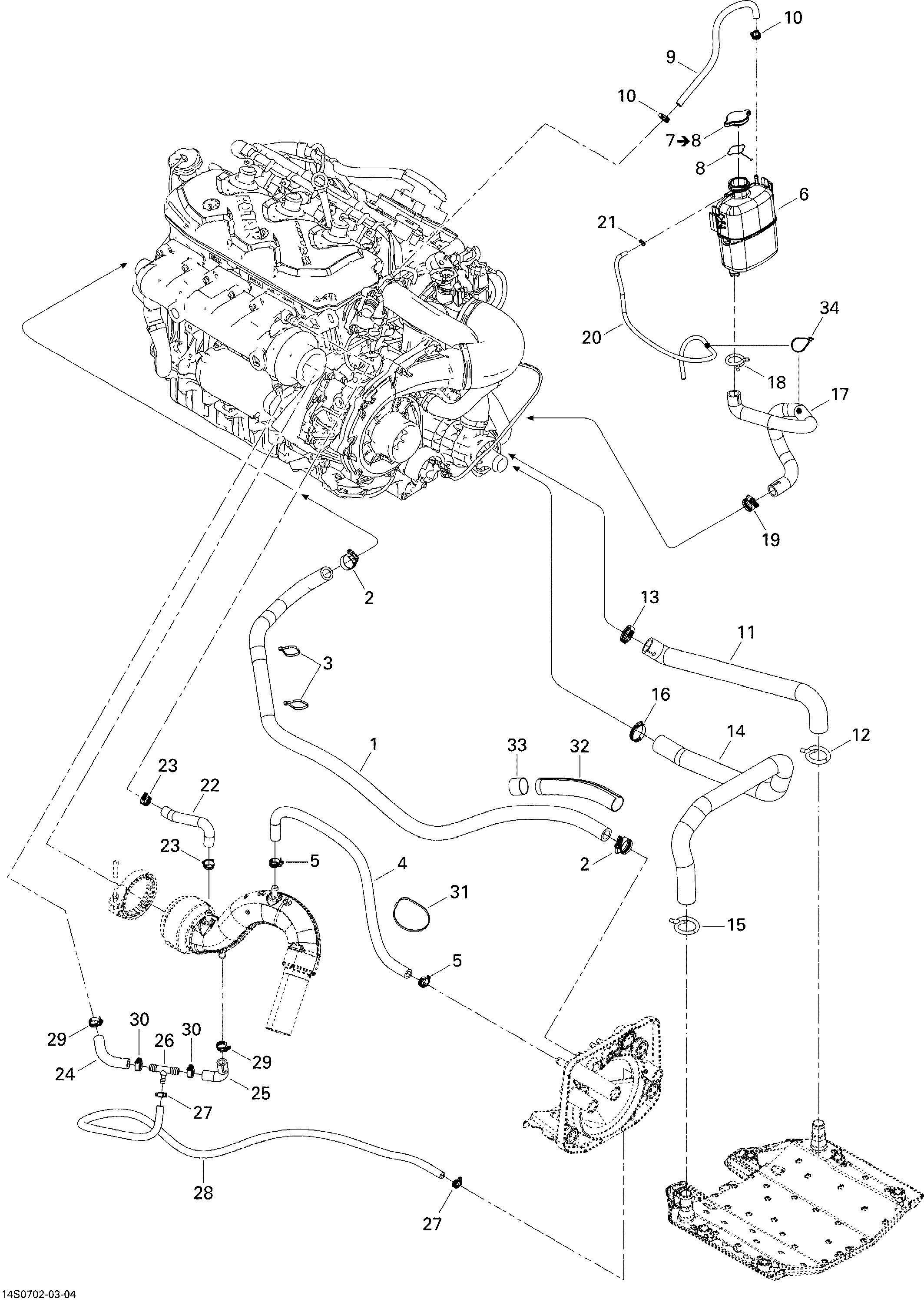

01- Cooling System для BRP GTX Wake - 2007
-
№АртикулНазвание
-
1276000138 Formed HoseFormed Hose
-
2293650051 Tridon Gear ClampTridon Gear Clamp
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4276000151 Hose 12.5 mmHose 12.5 mm
-
5293650172 Tridon ClampTridon Clamp
-
6276000086 Coolant TankCoolant Tank
-
7276000100 Pressure Cap Ass'y. Includes 7 to 8Pressure Cap Ass'y. Includes 7 to 8
-
8276000127 LatchLatch
-
9275500549 Hose 1/4''Hose 1/4''
-
10293650170 Hose ClampHose Clamp
-
11276000153 RH Radiator HoseRH Radiator Hose
-
12293650114 Spring ClampSpring Clamp
-
13293650045 Tridon Gear ClampTridon Gear Clamp
-
14276000154 LH Radiator HoseLH Radiator Hose
-
15293650114 Spring ClampSpring Clamp
-
16293650045 Tridon Gear ClampTridon Gear Clamp
-
17276000144 Formed Return HoseFormed Return Hose
-
18293650115 Spring ClampSpring Clamp
-
19293650019 Tridon ClampTridon Clamp
-
20415080200 Polyurethane HosePolyurethane Hose
-
21293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
22276000155 Formed HoseFormed Hose
-
23293650172 Tridon ClampTridon Clamp
-
24276000136 Lower Formed HoseLower Formed Hose
-
25276000137 Lower Formed HoseLower Formed Hose
-
26293710116 T-FittingT-Fitting
-
27293650171 Tridon Hose ClampTridon Hose Clamp
-
28509000093 Hose 8 mmHose 8 mm
-
29293650172 Tridon ClampTridon Clamp
-
30293650173 Tridon ClampTridon Clamp
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
32409902200 Tubing 25 mmTubing 25 mm
-
33276000125 Shrink TubingShrink Tubing
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
