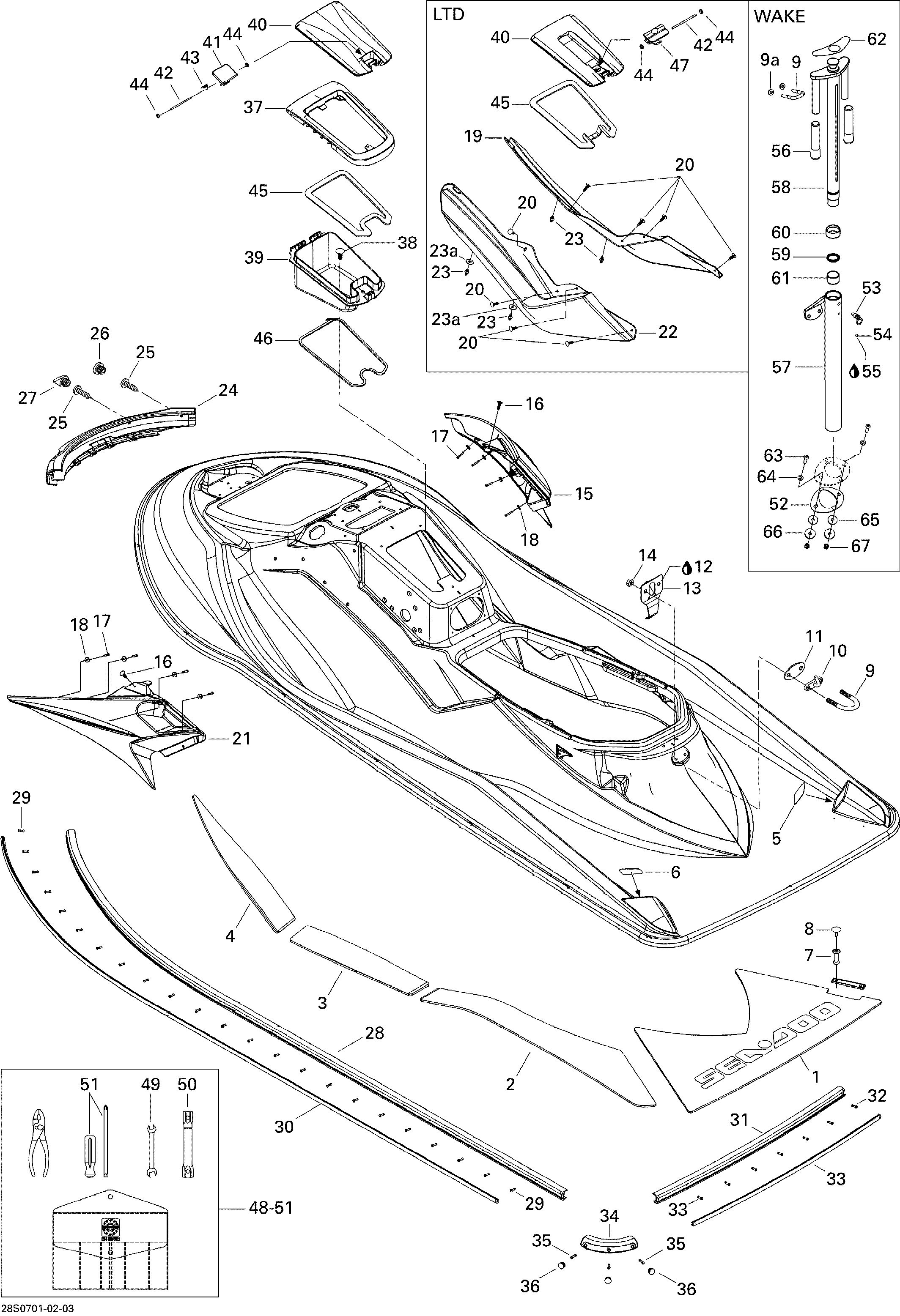

09- Body, Rear View для BRP GTX Wake - 2007
-
№АртикулНазвание
-
1291002316 Rear CarpetRear Carpet
-
2291002382 RH Center Rear CarpetRH Center Rear Carpet
-
2291002383 LH Center Rear CarpetLH Center Rear Carpet
-
3291002384 RH Center Front CarpetRH Center Front Carpet
-
3291002385 LH Center Front CarpetLH Center Front Carpet
-
4291002386 RH Front CarpetRH Front Carpet
-
4291002387 LH Front CarpetLH Front Carpet
-
5291001758 RH Anti-SkidRH Anti-Skid
-
6291001759 LH Anti-SkidLH Anti-Skid
-
7293150016 Rivet 1/8''Rivet 1/8''
-
8293000014 Snap CapSnap Cap
-
9292000933 U-Clamp. WAKEU-Clamp. WAKE
-
9a293050001 Flat Washer. WAKEFlat Washer. WAKE
-
12296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
13291001747 Retainer PlateRetainer Plate
-
14232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
15269501527 RH Front Moulding. STD, WAKERH Front Moulding. STD, WAKE
-
16293730006 Black DartBlack Dart
-
17241142560 Hex Flanged Screw K40 X 25Hex Flanged Screw K40 X 25
-
18250200055 Washer 4.3 mm, NylonWasher 4.3 mm, Nylon
-
21269501529 LH Front Moulding. STD, WAKELH Front Moulding. STD, WAKE
-
24291001942 Bumper Nose, BlackBumper Nose, Black
-
25250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
26291001519 Bumper Plug, BlackBumper Plug, Black
-
27291001040 Bumper Plug, BlackBumper Plug, Black
-
28291002503 Side BumperSide Bumper
-
29293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
30291002504 Side Bumper Trim. WAKESide Bumper Trim. WAKE
-
31291002242 Rear Bumper, BlackRear Bumper, Black
-
32293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
33291001484 Rear Bumper Trim, Viper Red. WAKERear Bumper Trim, Viper Red. WAKE
-
34291002244 Bumper CornerBumper Corner
-
35293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
36291000339 Bumper PlugBumper Plug
-
37269501031 Cover Trim, BlackCover Trim, Black
-
38293730006 Black DartBlack Dart
-
39269500968 Glove Box. STD, WAKE, Includes 39 to 46Glove Box. STD, WAKE, Includes 39 to 46
-
40269501648 Glove Box Door. STD, WAKEGlove Box Door. STD, WAKE
-
41269500553 Latch, BlackLatch, Black
-
42211400008 Pin. STD, WAKEPin. STD, WAKE
-
43291000922 Latch SpringLatch Spring
-
44211100002 Push Nut. STD, WAKEPush Nut. STD, WAKE
-
45293250126 Gasket. STD, WAKEGasket. STD, WAKE
-
46293250127 GasketGasket
-
48294000744 Tool KitTool Kit
-
49529017300 Fork WrenchFork Wrench
-
50529035731 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
51529000004 Driver ScrewDriver Screw
-
52293250151 Seal. WAKESeal. WAKE
-
53291002276 Retractable Spring Pin. WAKERetractable Spring Pin. WAKE
-
54206560860 Socket Set Screw M6 X 8. WAKESocket Set Screw M6 X 8. WAKE
-
55293800060 Loctite 243, 10 ml. WAKELoctite 243, 10 ml. WAKE
-
56M5340464 Grip Handle. WAKEGrip Handle. WAKE
-
57291002089 Welded Support. WAKEWelded Support. WAKE
-
58291002095 Welded Ski Pole. WAKEWelded Ski Pole. WAKE
-
59293300106 X-ring. WAKEX-ring. WAKE
-
60291002099 Upper Sleeve. WAKEUpper Sleeve. WAKE
-
61291002100 Lower Sleeve. WAKELower Sleeve. WAKE
-
62219902218 Warning Decal (Wake Bar). WAKEWarning Decal (Wake Bar). WAKE
-
63205484060 Socket Head Screw M8 X 40. WAKESocket Head Screw M8 X 40. WAKE
-
64234081600 Flat Washer 8 mm. WAKEFlat Washer 8 mm. WAKE
-
65293830037 Rubber Washer. WAKERubber Washer. WAKE
-
66250200011 Flat Washer 8 mm, Stainless. WAKEFlat Washer 8 mm, Stainless. WAKE
-
67232581200 Brass Hex Elastic Nut, M8. WAKEBrass Hex Elastic Nut, M8. WAKE
