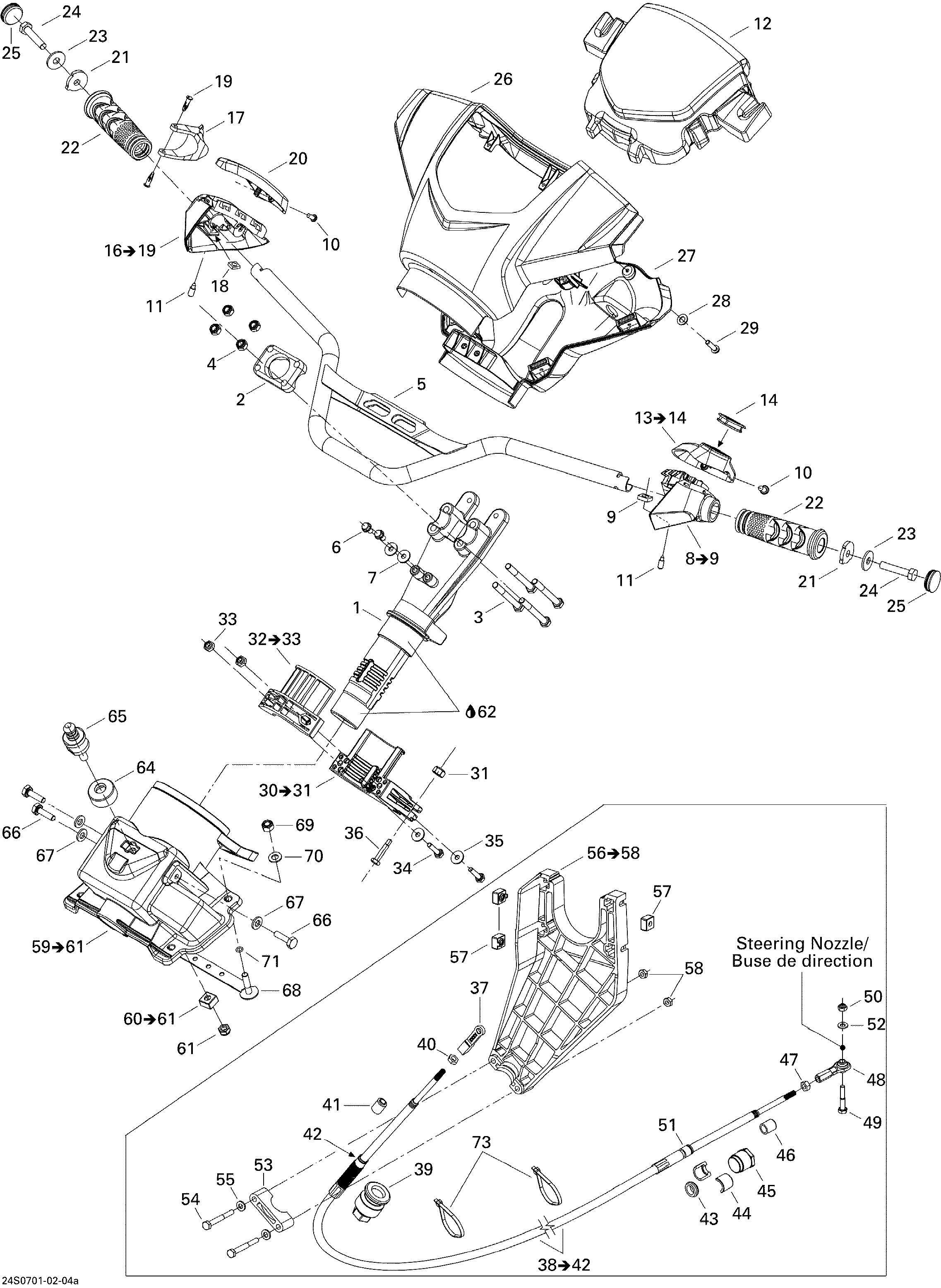

07- Steering System для BRP GTX Wake - 2007
-
№АртикулНазвание
-
1277001507 Steering StemSteering Stem
-
2277000142 Steering ClampSteering Clamp
-
3207087060 Hex Screw M8 X 70Hex Screw M8 X 70
-
4232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
5277001498 Handle BarHandle Bar
-
6211000036 Hex Flanged Screw 1/4''-20 X 1/2''Hex Flanged Screw 1/4''-20 X 1/2''
-
7234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8277001481 Housing Ass'y. Includes 8 to 9Housing Ass'y. Includes 8 to 9
-
9232860600 Square Nut M6Square Nut M6
-
10209630960 Phillips Screw M3.9 X 9.5Phillips Screw M3.9 X 9.5
-
11250000036 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
12277001544 HAndle PadHAndle Pad
-
13277001440 Housing Cover. Includes 13 to 14Housing Cover. Includes 13 to 14
-
14278001713 Stop KnobStop Knob
-
16277001483 Throttle Housing Ass'y. Includes 16 to 19Throttle Housing Ass'y. Includes 16 to 19
-
17277001485 Throttle HandleThrottle Handle
-
18232860600 Square Nut M6Square Nut M6
-
19277000381 PinPin
-
20277001023 Throttle Housing CoverThrottle Housing Cover
-
21277000554 Handle Grip InsertHandle Grip Insert
-
22277001336 Handle Grip, Slate GreyHandle Grip, Slate Grey
-
23234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
24250000002 Hex Screw M6 X 30, Scotch GripHex Screw M6 X 30, Scotch Grip
-
25277000203 Cap, BlackCap, Black
-
26277001518 Upper Steering CoverUpper Steering Cover
-
27277001519 Lower Steering CoverLower Steering Cover
-
28234051600 Flat Washer M5Flat Washer M5
-
29241141660 Flanged Hex Screw K40 X 16Flanged Hex Screw K40 X 16
-
30277001520 Support. Includes 30 to 31Support. Includes 30 to 31
-
31232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
32277001521 Arm Thrust. Includes 32 to 33Arm Thrust. Includes 32 to 33
-
33232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
34207162560 Hex Screw M6 X 25Hex Screw M6 X 25
-
35234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
36211000081 Hex Screw M6 X 30Hex Screw M6 X 30
-
37277001180 Ball JointBall Joint
-
38277001438 Steering Cable. Includes 38 to 42Steering Cable. Includes 38 to 42
-
39277000782 Ajustment KnobAjustment Knob
-
40211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
41277000849 WiperWiper
-
42277000846 Large BootLarge Boot
-
43293830063 Rubber WasherRubber Washer
-
44277001527 Half RingHalf Ring
-
45277000784 Steering Cable LockSteering Cable Lock
-
46277000849 WiperWiper
-
47211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
48277000775 Ball JointBall Joint
-
49207063560 Hex Screw M6 X 35Hex Screw M6 X 35
-
50232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
51277000846 Large BootLarge Boot
-
52234061600 Flat Washer M6Flat Washer M6
-
53277001528 Support ThrustSupport Thrust
-
54207065060 Hex Screw M6 X 50Hex Screw M6 X 50
-
55234061600 Flat Washer M6Flat Washer M6
-
56277001522 Cable Support. Includes 56 to 58Cable Support. Includes 56 to 58
-
57269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
58232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
59277001523 Steering Support. Includes 59 to 61Steering Support. Includes 59 to 61
-
60271000598 Nut Housing Ass'y. Includes 60 to 61Nut Housing Ass'y. Includes 60 to 61
-
61232501600 Hex Elastic Nut M10Hex Elastic Nut M10
-
62293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
64293830078 Rubber PadRubber Pad
-
65291002147 Latch StudLatch Stud
-
66207162060 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
67234061600 Flat Washer M6Flat Washer M6
-
68277001072 Steering SupportSteering Support
-
69232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
70234081600 Flat Washer 8 mmFlat Washer 8 mm
-
71293300123 O-ringO-ring
-
73293750008 Tie-Rap 350 mmTie-Rap 350 mm
