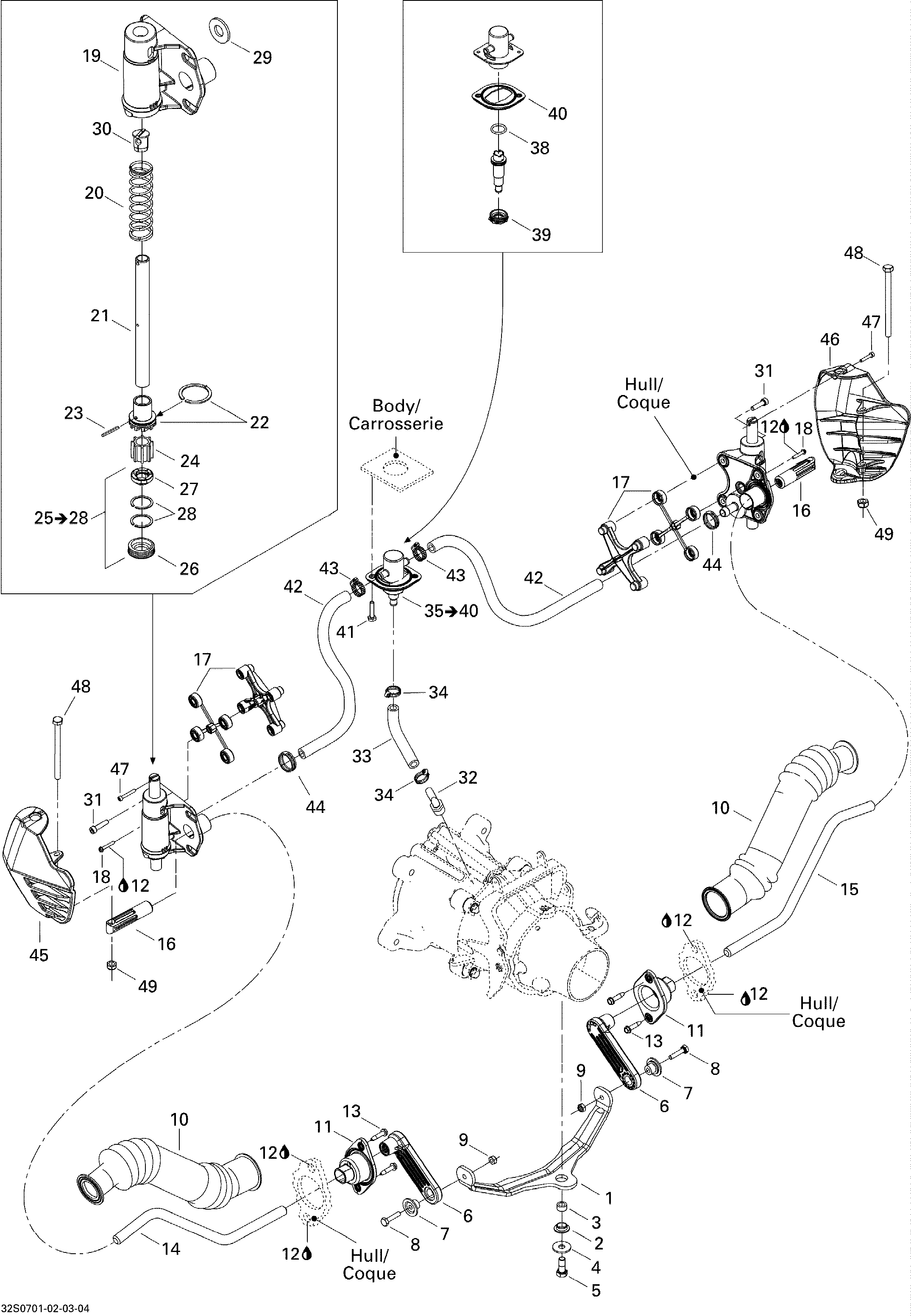

07- Off Power Assisted Steering для BRP GTX Wake - 2007
-
№АртикулНазвание
-
1277000979 U LeverU Lever
-
2271000321 Venturi BushingVenturi Bushing
-
3277000980 BushingBushing
-
4234082600 Flat Washer 8 mmFlat Washer 8 mm
-
5207382060 Hex Screw M8 X 20, Scotch GripHex Screw M8 X 20, Scotch Grip
-
6265000013 LeverLever
-
7293900042 Flanged BushingFlanged Bushing
-
8207162560 Hex Screw M6 X 25Hex Screw M6 X 25
-
9232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
10277001123 Seal TubeSeal Tube
-
11277001164 Rod GrommetRod Grommet
-
12296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
13211000023 Hex Screw 10-14 X 7/8''Hex Screw 10-14 X 7/8''
-
14277000976 LH Tie RodLH Tie Rod
-
15277001063 RH Tie RodRH Tie Rod
-
16265000014 Fitting StabilisatorFitting Stabilisator
-
17277001177 Support Plate Ass'ySupport Plate Ass'y
-
18241142560 Hex Flanged Screw K40 X 25Hex Flanged Screw K40 X 25
-
19265000035 LH Cylinder SupportLH Cylinder Support
-
19265000036 RH Cylinder SupportRH Cylinder Support
-
20277000962 SpringSpring
-
21277001091 Pivot RodPivot Rod
-
22277001080 Piston Ass'yPiston Ass'y
-
23250400014 Spring PinSpring Pin
-
24277001168 SpacerSpacer
-
25265000008 Cover Ass'Y. Includes 25 to 28Cover Ass'Y. Includes 25 to 28
-
26265000009 Threaded CoverThreaded Cover
-
27277000985 Wear RingWear Ring
-
28277000986 Split RingSplit Ring
-
29293250119 SealSeal
-
30277001185 Locking InsertLocking Insert
-
31205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
32271001298 Elbow Ass'YElbow Ass'Y
-
33276000139 Formed HoseFormed Hose
-
34293650149 Norma ClampNorma Clamp
-
35277001178 Valve Ass'Y. Includes 35 to 40Valve Ass'Y. Includes 35 to 40
-
38414542700 O-RingO-Ring
-
39265000009 Threaded CoverThreaded Cover
-
40293250144 SealSeal
-
41211000023 Hex Screw 10-14 X 7/8''Hex Screw 10-14 X 7/8''
-
42276000151 Hose 12.5 mmHose 12.5 mm
-
43293650172 Tridon ClampTridon Clamp
-
44293650123 Oetiker ClampOetiker Clamp
-
45277001486 LH Side VaneLH Side Vane
-
46277001487 RH Side VaneRH Side Vane
-
47205042560 Socket Head Screw M4 X 25Socket Head Screw M4 X 25
-
48250000077 Hex Screw M8 X 110Hex Screw M8 X 110
-
49232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
