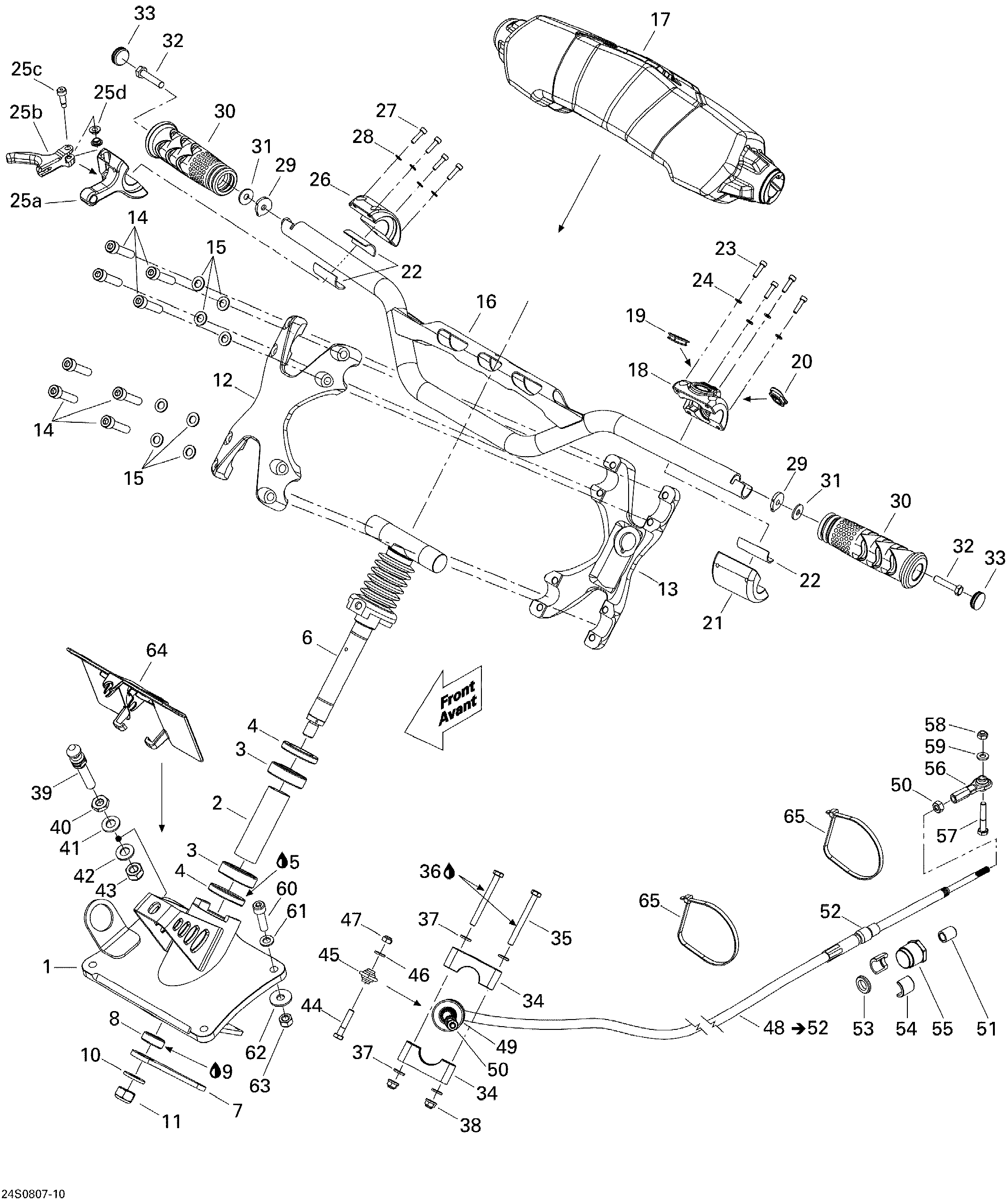

07- Steering для BRP RXP X 255 - 2008
-
№АртикулНазвание
-
1277001614 Steering SupportSteering Support
-
2277001572 SpacerSpacer
-
3503190396 Ball BearingBall Bearing
-
4293200115 Oil SealOil Seal
-
5293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
6277001548 Steering Shaft Ass'ySteering Shaft Ass'y
-
7277001566 Mobile ArmMobile Arm
-
8277001584 RingRing
-
9293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
10250200053 Flat Washer M12Flat Washer M12
-
11250100078 Elastic Stop Nut M12Elastic Stop Nut M12
-
12277001552 Handle Bar Extension, UpperHandle Bar Extension, Upper
-
13277001569 Handle Bar Extension, LowerHandle Bar Extension, Lower
-
14205083560 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
15234080600 Flat Washer 8 mmFlat Washer 8 mm
-
16277001610 Handle BarHandle Bar
-
17277001557 Handle PadHandle Pad
-
18277001560 Housing CoverHousing Cover
-
19277000306 Switch KnobSwitch Knob
-
20278002066 VTS KnobVTS Knob
-
21277001559 Lower HousingLower Housing
-
22293250202 PadPad
-
23205041660 Socket Head Screw M4 X 16Socket Head Screw M4 X 16
-
24234040600 Flat Washer 4 mmFlat Washer 4 mm
-
25a277001570 RH HousingRH Housing
-
25b277001564 Throttle HandleThrottle Handle
-
25c250000343 Socket Head ScrewSocket Head Screw
-
25d293900090 BushingBushing
-
26277001563 Upper HousingUpper Housing
-
27205041660 Socket Head Screw M4 X 16Socket Head Screw M4 X 16
-
28234040600 Flat Washer 4 mmFlat Washer 4 mm
-
29277000554 Handle Grip InsertHandle Grip Insert
-
30277001336 Handle Grip, Slate GreyHandle Grip, Slate Grey
-
31234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
32250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
33277000203 Cap, BlackCap, Black
-
34277001528 Support ThrustSupport Thrust
-
35207166060 Hexagonal Cap ScrewHexagonal Cap Screw
-
36296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
37234061600 Flat Washer M6Flat Washer M6
-
38232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
39291002717 Latch StudLatch Stud
-
40232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
41234001600 Flat Washer 10 mmFlat Washer 10 mm
-
42234001600 Flat Washer 10 mmFlat Washer 10 mm
-
43232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
44207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
45277000775 Ball JointBall Joint
-
46234061600 Flat Washer M6Flat Washer M6
-
47232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
48277001532 Steering Cable. Includes 48 to 52Steering Cable. Includes 48 to 52
-
49277000782 Ajustment KnobAjustment Knob
-
50211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
51277000849 Small BootSmall Boot
-
52277000846 Large BootLarge Boot
-
53293830063 Rubber WasherRubber Washer
-
54277001527 Half RingHalf Ring
-
55277000784 Steering Cable LockSteering Cable Lock
-
56277000775 Ball JointBall Joint
-
57207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
58232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
59234061600 Flat Washer M6Flat Washer M6
-
60205083560 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
61234081600 Flat Washer 8 mmFlat Washer 8 mm
-
62234082600 Flat Washer 8 mmFlat Washer 8 mm
-
63232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
64277001623 CapCap
-
65293750008 Tie-Rap 350 mmTie-Rap 350 mm
