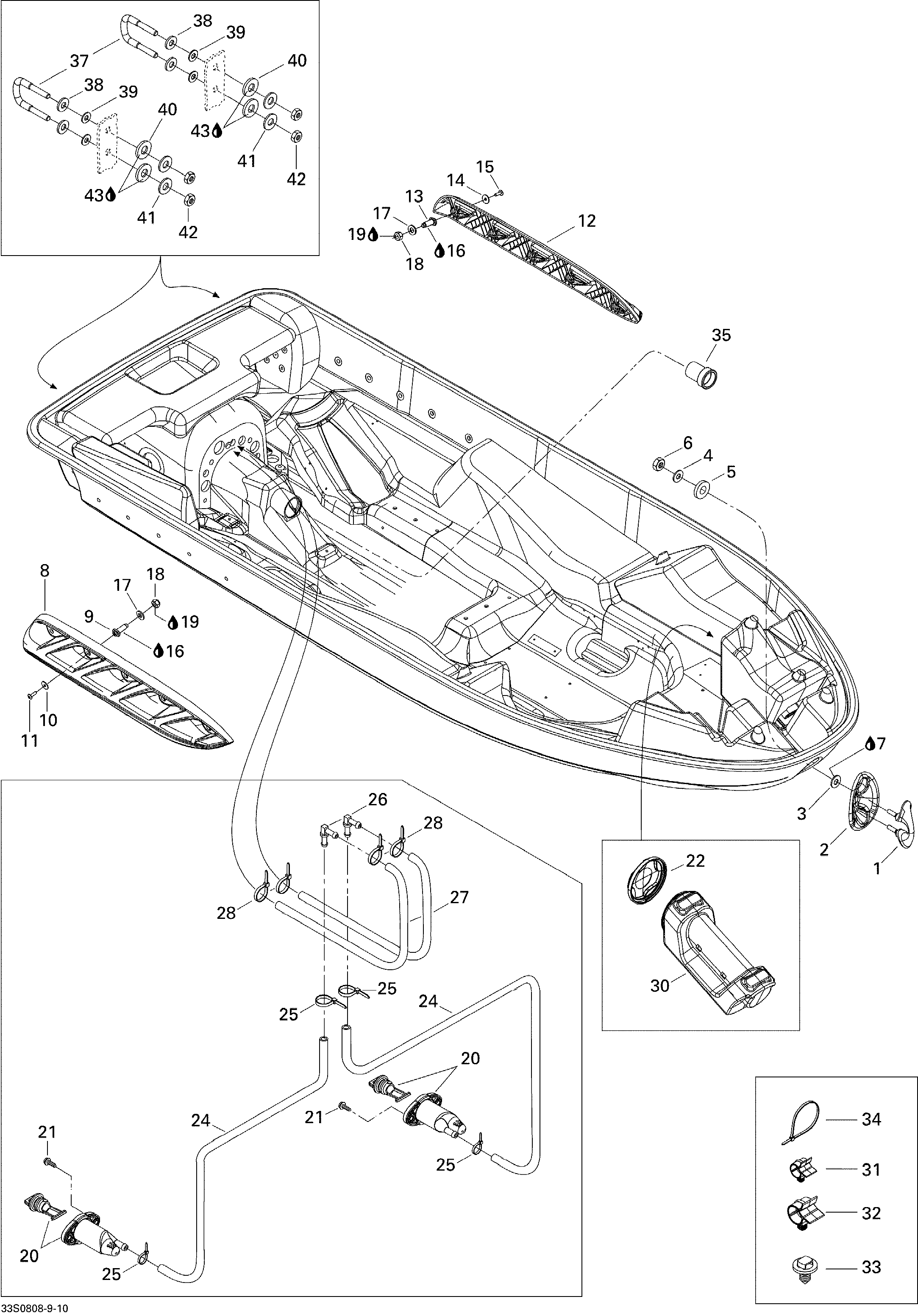

09- Hull для BRP RXP X 255 - 2008
-
№АртикулНазвание
-
1292000708 Bow Eye Ass'y, BlackBow Eye Ass'y, Black
-
2292000453 Shell, BlackShell, Black
-
3234081600 Flat Washer 8 mmFlat Washer 8 mm
-
4250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
5293830037 Rubber WasherRubber Washer
-
6232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8292001174 RH SponsonRH Sponson
-
9292001046 Sponson AdapterSponson Adapter
-
10250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
11250000299 Torx Screw M6.6 x 20, StainlessTorx Screw M6.6 x 20, Stainless
-
12292001175 LH SponsonLH Sponson
-
13292001046 Sponson AdapterSponson Adapter
-
14250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
15250000299 Torx Screw M6.6 x 20, StainlessTorx Screw M6.6 x 20, Stainless
-
16296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
17250200053 Flat Washer M12Flat Washer M12
-
18250100078 Elastic Stop Nut M12Elastic Stop Nut M12
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20292001252 Drain PlugDrain Plug
-
21211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
22269500603 Extinguish CapExtinguish Cap
-
24275000007 Hose 8 mmHose 8 mm
-
25293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
26293710117 Elbow Fitting 90°Elbow Fitting 90°
-
27415080700 LineLine
-
28293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
30269500606 Extinguish HousingExtinguish Housing
-
32275500527 RetainerRetainer
-
33293730040 Mount DartMount Dart
-
34293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35292000974 Hull Insert, 50 mmHull Insert, 50 mm
-
37292000933 U-ClampU-Clamp
-
38293050001 Flat WasherFlat Washer
-
39234081100 Flat Washer 8 mmFlat Washer 8 mm
-
40293830037 Rubber WasherRubber Washer
-
41250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
42232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
43296000309 Sealant Silicone, ClearSealant Silicone, Clear
