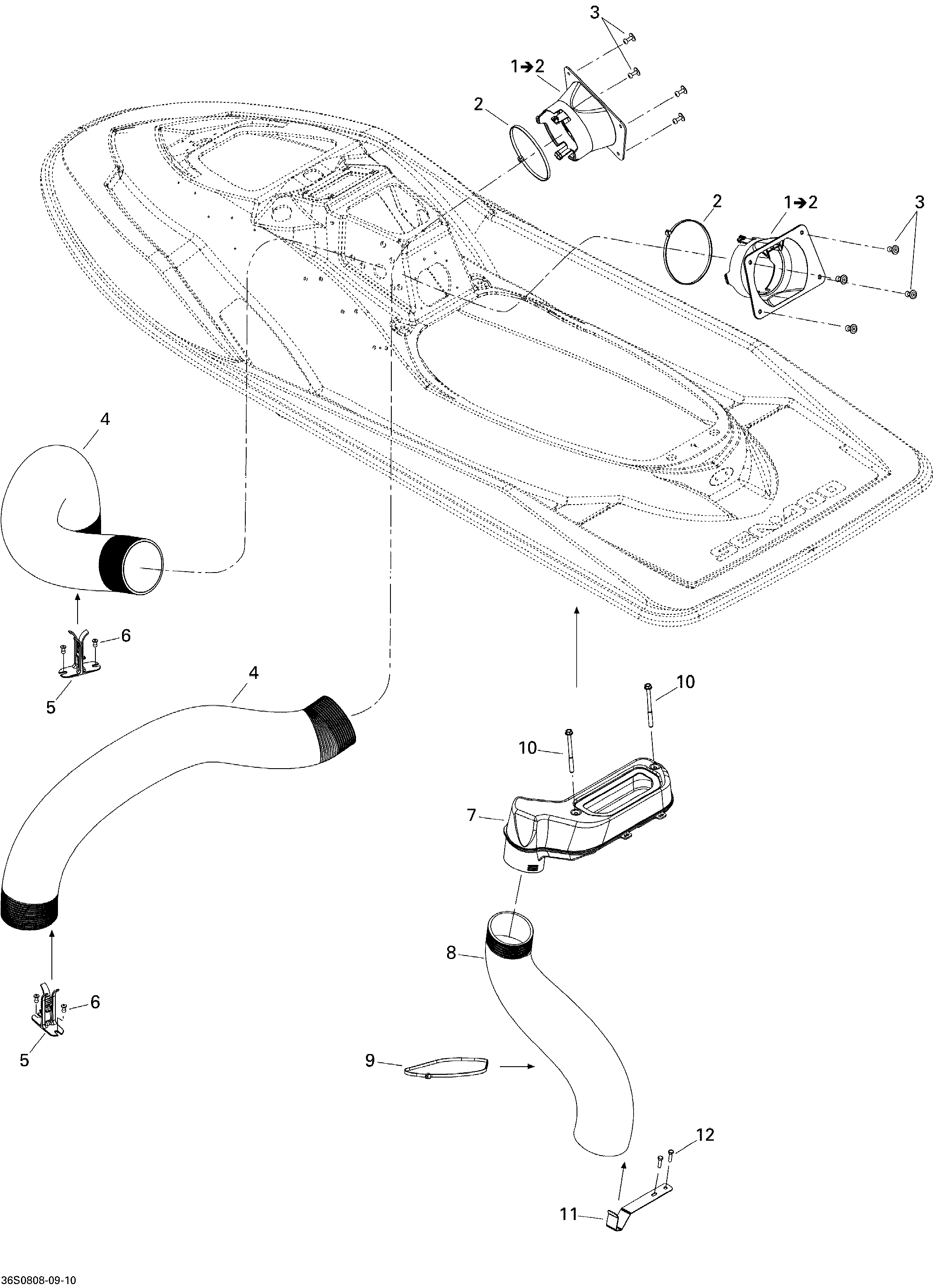

09- Ventilation для BRP RXP X 255 - 2008
-
№АртикулНазвание
-
1291002547 Front Air Collector Ass'y. Includes 1 to 2Front Air Collector Ass'y. Includes 1 to 2
-
2293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
3293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
4291002549 Flexible HoseFlexible Hose
-
5291002527 Hose ClipHose Clip
-
6293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
7291002701 Air AdapterAir Adapter
-
8291002544 Rear Hose VentRear Hose Vent
-
9293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
10243168060 Hex. Plastite Screw M6, 3 X 80Hex. Plastite Screw M6, 3 X 80
-
11291002627 Hose SupportHose Support
-
12243042060 Hex. Plastite Screw M4, 8 X 20Hex. Plastite Screw M4, 8 X 20
