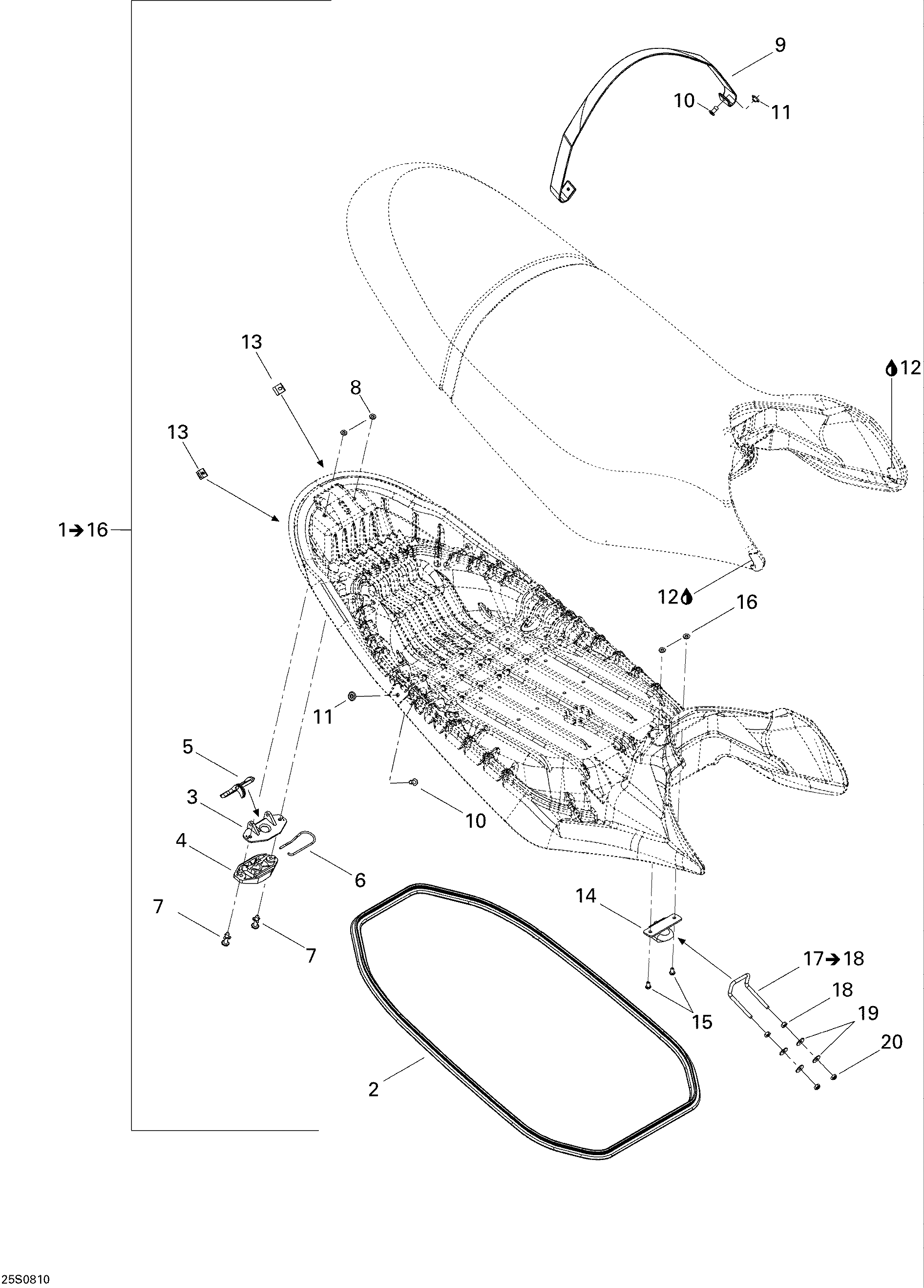

09- Seat для BRP RXP X 255 - 2008
-
№АртикулНазвание
-
1269001473 Seat Ass'y. Includes 1 to 16Seat Ass'y. Includes 1 to 16
-
2293200107 Seal, MeterSeal, Meter
-
3269700076 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150151 Rivet 1/4''Rivet 1/4''
-
8234061600 Flat Washer M6Flat Washer M6
-
9269001499 Seat StrapSeat Strap
-
10293150078 Pop RivetPop Rivet
-
11293720067 GrommetGrommet
-
12413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
13250100032 NutNut
-
14291002012 Seat HookSeat Hook
-
15293150151 Rivet 1/4''Rivet 1/4''
-
16234061600 Flat Washer M6Flat Washer M6
-
17291001937 U-Clamp Rod. Includes 17 to 18U-Clamp Rod. Includes 17 to 18
-
18232061600 Hex. Nut M6Hex. Nut M6
-
19234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
20232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
