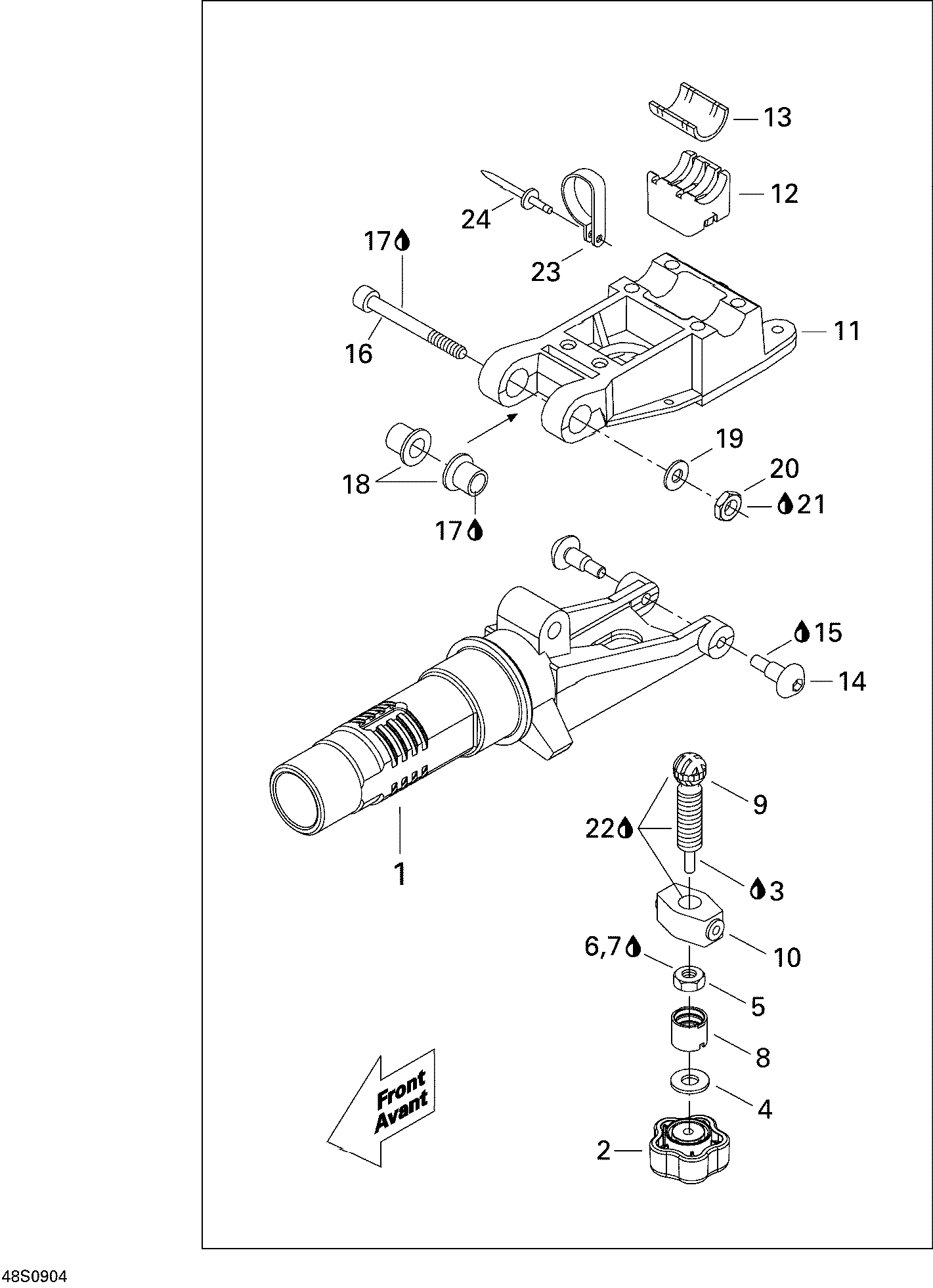

07- Adjustable Handle Bar International для BRP RXT 215 - 2009
-
№АртикулНазвание
-
1277000758400 Steering StemSteering Stem
-
2277000764 Adjuster HandleAdjuster Handle
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
5232180600 Nut M8Nut M8
-
6293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
7293800041 Loctite, Primer N, 128 GLoctite, Primer N, 128 G
-
8277001529 Stopper BushingStopper Bushing
-
9277001531 ScrewScrew
-
10277001530 BlockBlock
-
11277000901 Steering SupportSteering Support
-
12277000762 StopperStopper
-
13293830098 Rubber PadRubber Pad
-
14277000763 Threaded PivotThreaded Pivot
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16250000004 Socket Head Screw M10 X 73 Scotch GripSocket Head Screw M10 X 73 Scotch Grip
-
17293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
18277000844 Support BushingSupport Bushing
-
19234001600 Flat Washer 10 mmFlat Washer 10 mm
-
20232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
21293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
22293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
23293750021 Clamp TieClamp Tie
-
24293150008 Pop Rivet 3/16''Pop Rivet 3/16''
