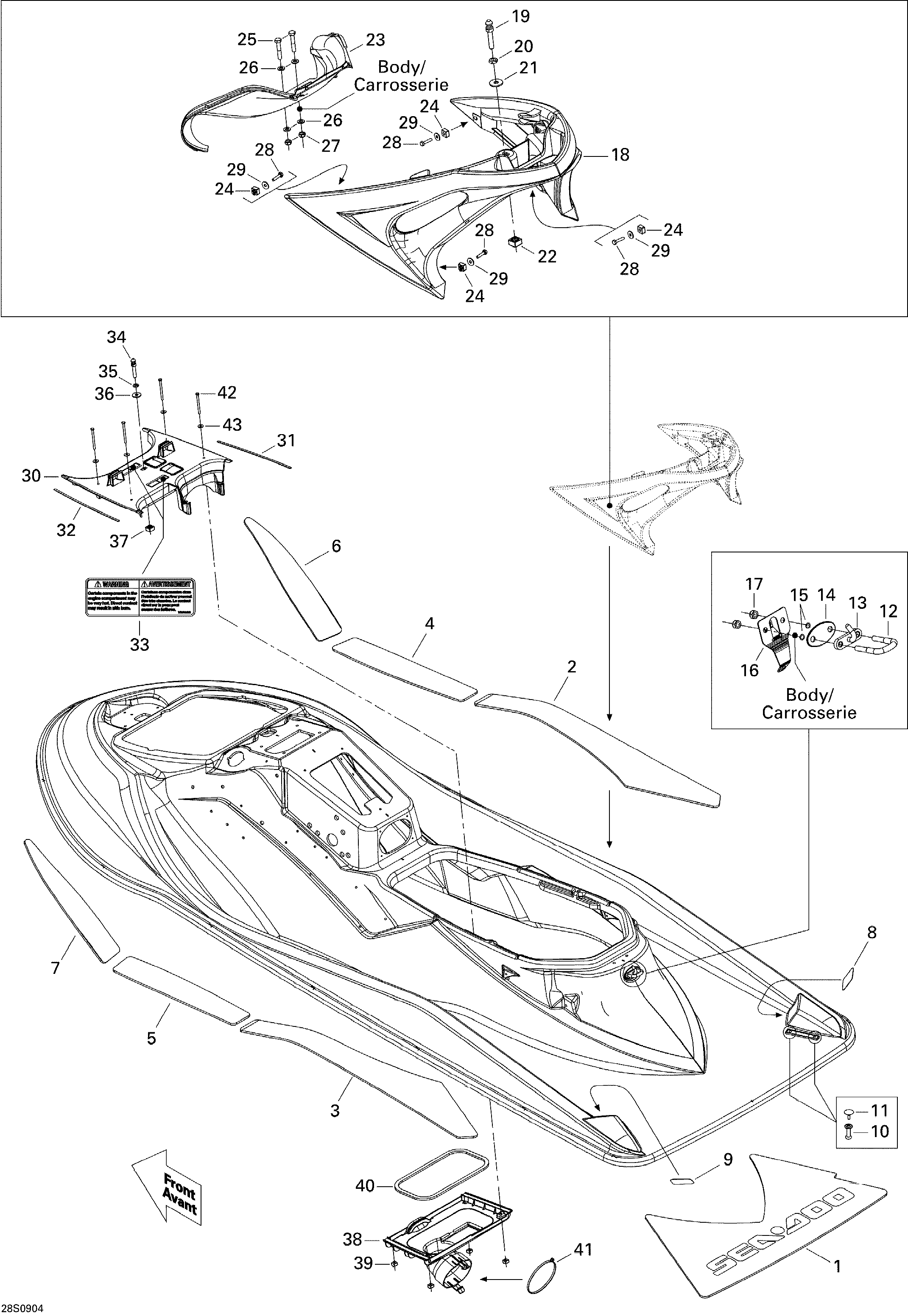

09- Body, Rear View для BRP RXT 215 - 2009
-
№АртикулНазвание
-
1291002316 Rear CarpetRear Carpet
-
2291002382 RH Center Rear CarpetRH Center Rear Carpet
-
3291002383 LH Center Rear CarpetLH Center Rear Carpet
-
4291002384 RH Center Front CarpetRH Center Front Carpet
-
5291002385 LH Center Front CarpetLH Center Front Carpet
-
6291002386 RH Front CarpetRH Front Carpet
-
7291002387 LH Front CarpetLH Front Carpet
-
8291001758 RH Anti-SkidRH Anti-Skid
-
9291001759 LH Anti-SkidLH Anti-Skid
-
10293150016 Rivet 1/8''Rivet 1/8''
-
11293000014 Snap CapSnap Cap
-
12292000011 U-ClampU-Clamp
-
13291002351 HookHook
-
14291001386 Finition Plate, BlackFinition Plate, Black
-
15293300123 O-RingO-Ring
-
16291001747 Retainer PlateRetainer Plate
-
17232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
18269000722 Grab Handle, BlackGrab Handle, Black
-
19291000945 Seat StudSeat Stud
-
20232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
21234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
22271000598 Nut Housing Ass'yNut Housing Ass'y
-
23269000749 Handle Cover, BlackHandle Cover, Black
-
24269501166 Nut Housing Ass'yNut Housing Ass'y
-
25207084560 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
26234081600 Flat Washer 8 mmFlat Washer 8 mm
-
27232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
28207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
29234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
30291002136 Upper Bridge, BlackUpper Bridge, Black
-
31293250008 GasketGasket
-
32293250008 GasketGasket
-
33219902643 Warning Label, SecurityWarning Label, Security
-
34291000945 Seat StudSeat Stud
-
35232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
36234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
37271000598 Nut Housing Ass'yNut Housing Ass'y
-
38291002614 Lower BridgeLower Bridge
-
39269501166 Nut Housing Ass'yNut Housing Ass'y
-
40293200090 GasketGasket
-
41293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
42207167560 Hex. Screw M6 X 75Hex. Screw M6 X 75
-
43234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
