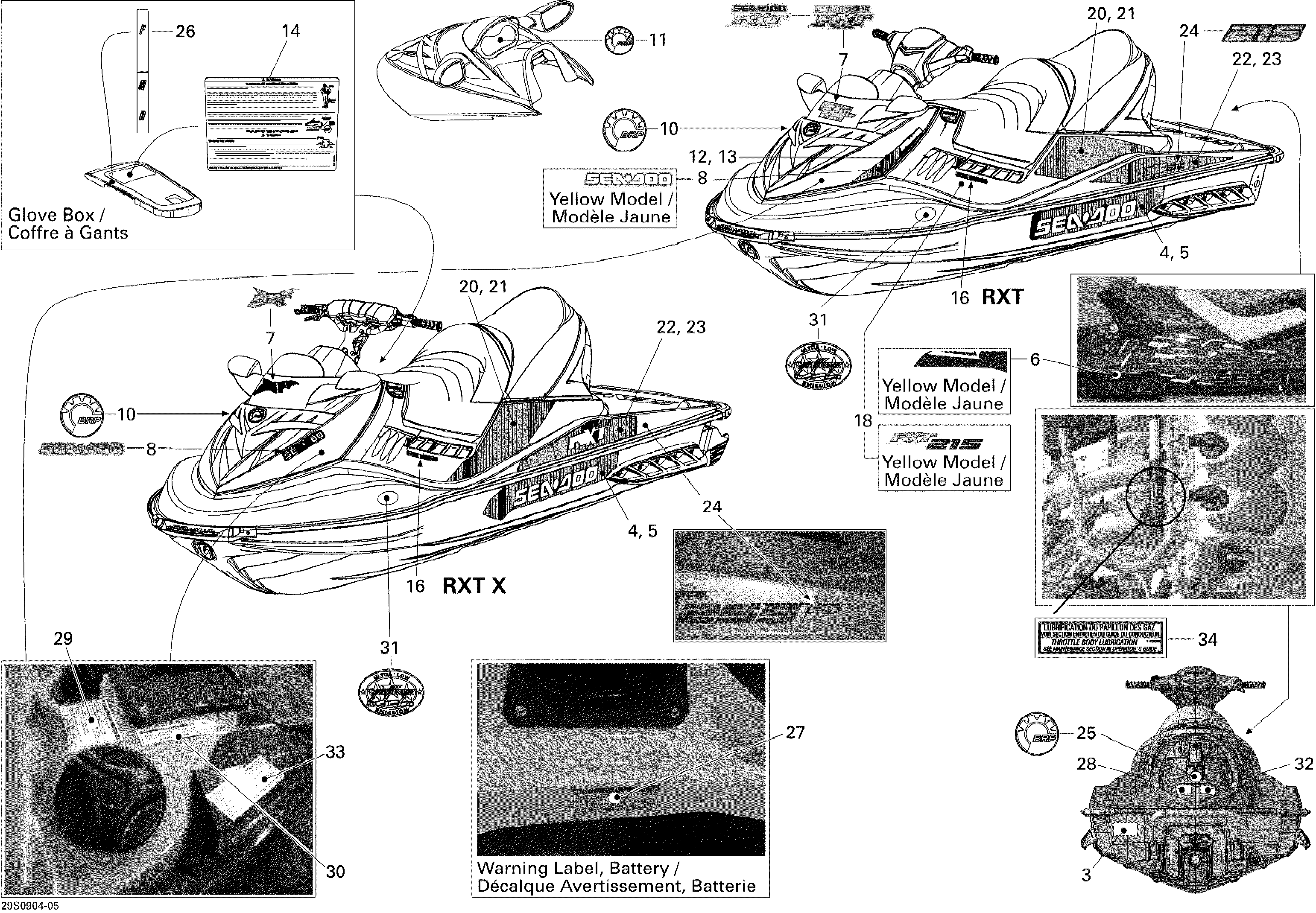

09- Decals для BRP RXT 215 - 2009
-
№АртикулНазвание
-
3219902650 Warning Label, HeatWarning Label, Heat
-
4219902933 LH Sea-Doo Hull Decal. Silver MetallicLH Sea-Doo Hull Decal. Silver Metallic
-
4219902987 LH Sea-Doo Hull Decal. YellowLH Sea-Doo Hull Decal. Yellow
-
5219902950 RH Sea-Doo Hull Decal. Silver MetallicRH Sea-Doo Hull Decal. Silver Metallic
-
5219902988 RH Sea-Doo Hull Decal. YellowRH Sea-Doo Hull Decal. Yellow
-
6219902989 RH Sea-Doo Hull Decal. YellowRH Sea-Doo Hull Decal. Yellow
-
7219902934 Deflector Decal. Silver MetallicDeflector Decal. Silver Metallic
-
7219902990 Deflector Decal. YellowDeflector Decal. Yellow
-
8219902991 Sea-Doo Decal. YellowSea-Doo Decal. Yellow
-
10219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
11219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
12219902936 LH DecalLH Decal
-
13219902937 RH DecalRH Decal
-
14219902545 Warning LabelWarning Label
-
16219902849 ROTAX 4-TEC DecalROTAX 4-TEC Decal
-
18219902992 HP DecalHP Decal
-
20219902939 LH Rear Decal. Silver MetallicLH Rear Decal. Silver Metallic
-
20219902993 LH Rear Decal. YellowLH Rear Decal. Yellow
-
21219902940 RH Rear Decal. Silver MetallicRH Rear Decal. Silver Metallic
-
21219902994 RH Rear Decal. YellowRH Rear Decal. Yellow
-
22219902941 Outside Lateral Decal. Silver MetallicOutside Lateral Decal. Silver Metallic
-
22219902995 LH Rear Lateral Outside Decal. YellowLH Rear Lateral Outside Decal. Yellow
-
23219902942 RH Rear Lateral Outside Decal. Silver MetallicRH Rear Lateral Outside Decal. Silver Metallic
-
23219902996 RH Rear Lateral Outside Decal. YellowRH Rear Lateral Outside Decal. Yellow
-
24219902949 Identification Decal 215Identification Decal 215
-
25219902471 BRP LogoBRP Logo
-
26219902818 Reverse DecalReverse Decal
-
27219902641 Warning Label, BatteryWarning Label, Battery
-
28219902656 Brp Exemption LabelBrp Exemption Label
-
29219902652 Warning Label, FuelWarning Label, Fuel
-
30219903071 Warning Label Vented Fuel CapWarning Label Vented Fuel Cap
-
31219902679 Emission LabelEmission Label
-
32219902657 Warning Label, StepWarning Label, Step
-
33219902653 Warning Label, FuelWarning Label, Fuel
-
34219902695 Label, MaintenanceLabel, Maintenance
