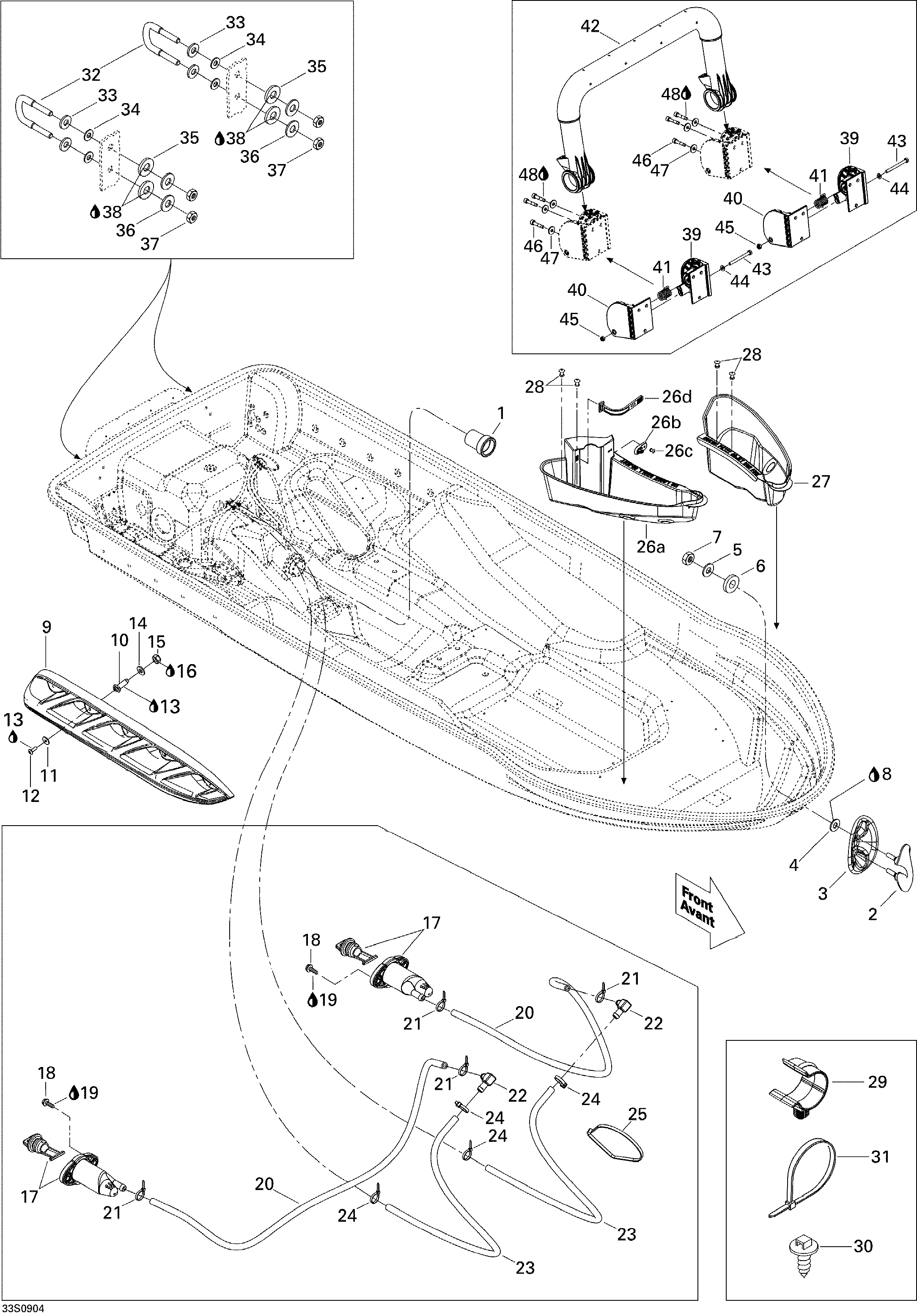

09- Hull для BRP RXT 215 - 2009
-
№АртикулНазвание
-
1292000974 Hull Insert, 50 mmHull Insert, 50 mm
-
2292000708 Bow Eye Ass'y, BlackBow Eye Ass'y, Black
-
3292000453 Shell, BlackShell, Black
-
4234081600 Flat Washer 8 mmFlat Washer 8 mm
-
5250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6293830037 Rubber WasherRubber Washer
-
7232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
8296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
9292001174 RH SponsonRH Sponson
-
9292001175 LH SponsonLH Sponson
-
10292001046 Sponson AdapterSponson Adapter
-
11250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
12250000299 Torx Screw M6.6 x 20, StainlessTorx Screw M6.6 x 20, Stainless
-
13296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
14250200053 Flat Washer M12Flat Washer M12
-
15250100078 Elastic Stop Nut M12Elastic Stop Nut M12
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17292001252 Drain PlugDrain Plug
-
18211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20275000007 Hose 8 mmHose 8 mm
-
21293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
22293710117 Elbow Fitting 90°Elbow Fitting 90°
-
23415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
24293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
25293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
26a292001158 RH Storage TrayRH Storage Tray
-
26b269500521 HookHook
-
26c293150027 Avdel RivetAvdel Rivet
-
26d269500408 StrapStrap
-
27292001307 LH Storage TrayLH Storage Tray
-
28293150169 Pop RivetPop Rivet
-
30293730040 Mount DartMount Dart
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
32292000933 U-ClampU-Clamp
-
33293050001 Flat WasherFlat Washer
-
34234081100 Flat Washer 8 mmFlat Washer 8 mm
-
35293830037 Rubber WasherRubber Washer
-
36250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
37232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
38296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
39292001201 Support ASupport A
-
40292001202 Support BSupport B
-
41292001259 SpringSpring
-
42292001204 Overmolded BarOvermolded Bar
-
43207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
44234061600 Flat Washer M6Flat Washer M6
-
45232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
46250000386 Socket Screw M6 X 30, Scotch GripSocket Screw M6 X 30, Scotch Grip
-
47234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
48293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
