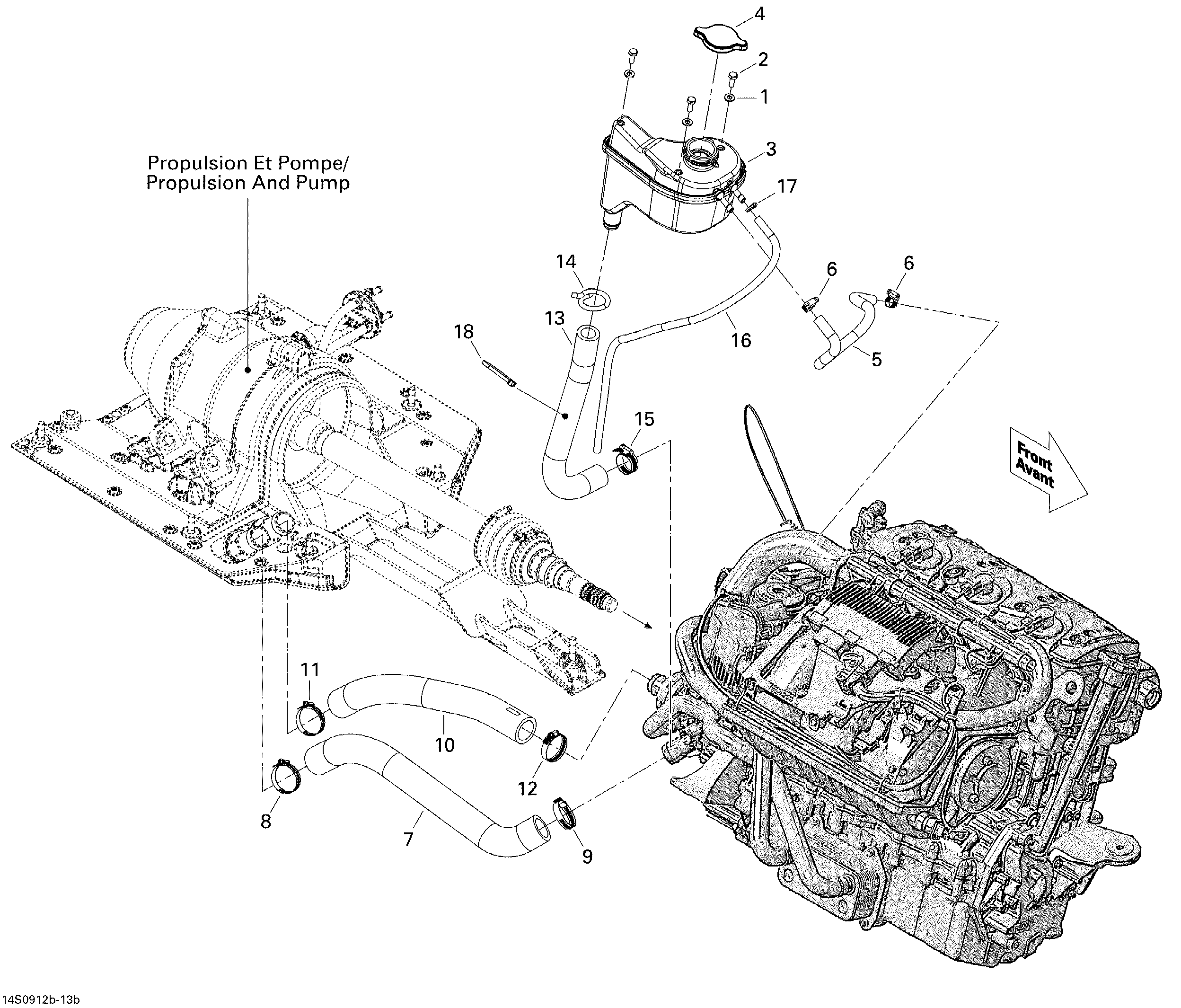

01- Cooling System 2 для BRP RXT iS 255 - 2009
-
№АртикулНазвание
-
1234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
3276000198 Coolant TankCoolant Tank
-
4276000100 Pressure Cap Ass'yPressure Cap Ass'y
-
5275500549 Hose 1/4''Hose 1/4''
-
6293650170 Tridon Gear ClampTridon Gear Clamp
-
7276000216 Radiator HoseRadiator Hose
-
8293650045 Tridon Gear ClampTridon Gear Clamp
-
9293650045 Tridon Gear ClampTridon Gear Clamp
-
10276000217 Radiator HoseRadiator Hose
-
11293650045 Tridon Gear ClampTridon Gear Clamp
-
12293650045 Tridon Gear ClampTridon Gear Clamp
-
13276000099 Hose 19 mmHose 19 mm
-
14293650115 Spring ClampSpring Clamp
-
15293650019 Tridon ClampTridon Clamp
-
16415080200 Polyurethane HosePolyurethane Hose
-
17293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
