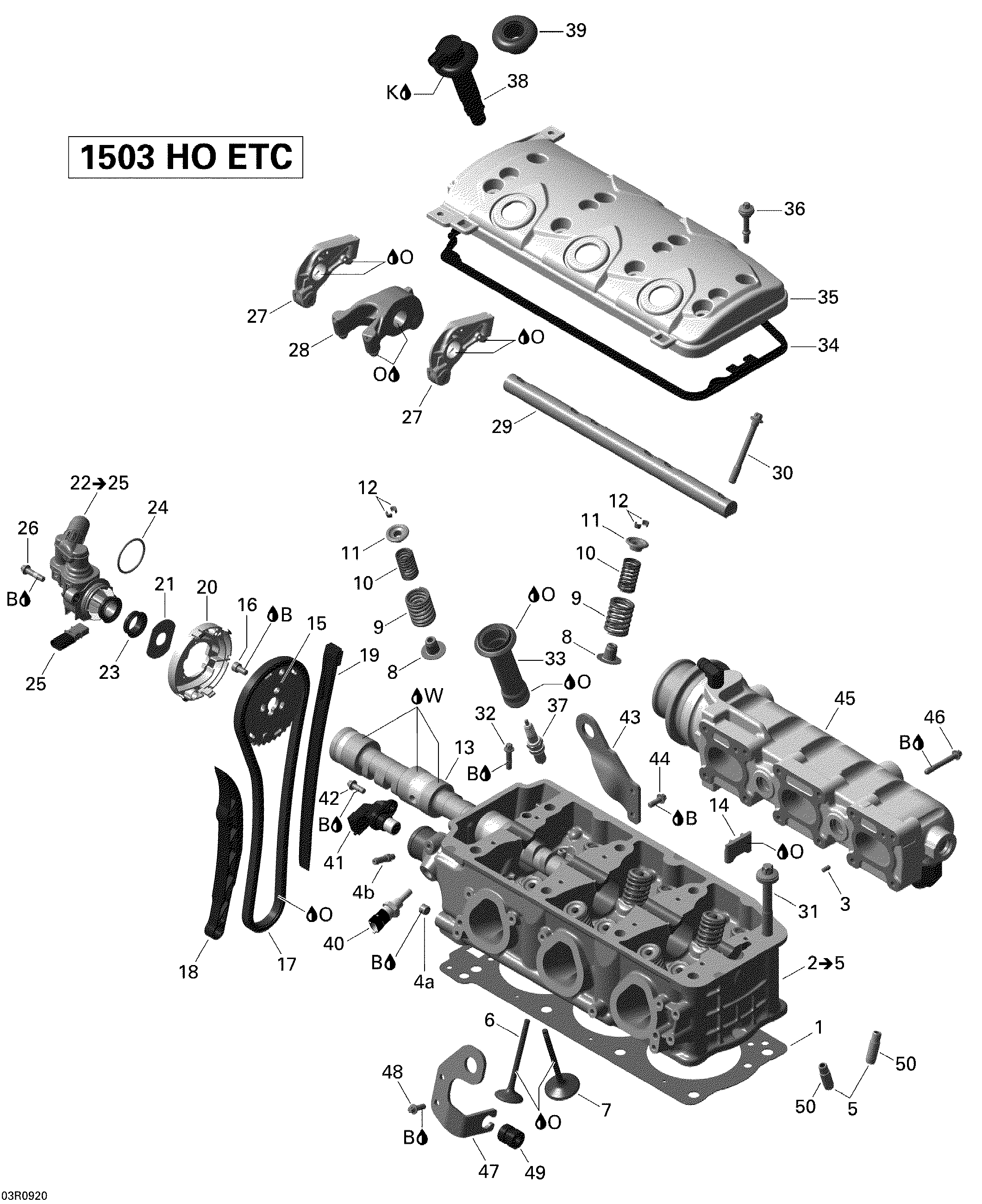

01- Cylinder Head для BRP RXT iS 255 - 2009
-
№АртикулНазвание
-
1420950770 Cylinder Head GasketCylinder Head Gasket
-
2420613978 Cylinder Head Ass'y. Includes 2 to 5Cylinder Head Ass'y. Includes 2 to 5
-
3420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
4a420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
4b420924720 Hose NippleHose Nipple
-
5420253929 Valve GuideValve Guide
-
6420254682 Exhaust Valve, 31 mmExhaust Valve, 31 mm
-
7420254293 Intake Valve, 38 mmIntake Valve, 38 mm
-
8420630200 Valve Stem SealValve Stem Seal
-
9420238180 Valve SpringValve Spring
-
10420838280 Valve Spring InsideValve Spring Inside
-
11420254283 Valve Spring RetainerValve Spring Retainer
-
12420253645 Valve CotterValve Cotter
-
13420837851 CamshaftCamshaft
-
14420851693 Camshaft GuideCamshaft Guide
-
15420254307 Timing Gear, 38 TeethTiming Gear, 38 Teeth
-
16420840031 Screw M6 X 12Screw M6 X 12
-
17420898042 Camshaft ChainCamshaft Chain
-
18420236541 Chain Tension GuideChain Tension Guide
-
19420236501 Chain GuideChain Guide
-
20420660037 CoverCover
-
21420627494 Thrust WasherThrust Washer
-
22420856502 Vent Valve Ass'y. Includes 22 to 25Vent Valve Ass'y. Includes 22 to 25
-
23420630125 V-RingV-Ring
-
24420950870 O-RingO-Ring
-
25420665950 TOPS SwitchTOPS Switch
-
26420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
27420254329 Rocker Arm, ExhaustRocker Arm, Exhaust
-
28420254316 Rocker Arm, InnerRocker Arm, Inner
-
29420854594 Rocker Arm, ShaftRocker Arm, Shaft
-
30420641080 Torx Screw M8 X 72Torx Screw M8 X 72
-
31420641110 Torx Flanged Screw M11 X 147Torx Flanged Screw M11 X 147
-
32420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
33420851751 Spark Plug PipeSpark Plug Pipe
-
34420950820 Valve Cover GasketValve Cover Gasket
-
35420811589 Valve CoverValve Cover
-
36420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
37707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
38420664020 Stick CoilStick Coil
-
39420460830 Sealing CupSealing Cup
-
40420222425 Temperature SensorTemperature Sensor
-
41420664043 Camshaft Position SensorCamshaft Position Sensor
-
42420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
43420851618 Transport Bracket PTOTransport Bracket PTO
-
44420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
45420673293 Exhaust ManifoldExhaust Manifold
-
46420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
47420851614 Transport Bracket FrontTransport Bracket Front
-
48420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
49420660090 Rubber BracketRubber Bracket
-
50420253929 Valve GuideValve Guide
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
K413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
W293550021 Isoflex Grease, TOPAS NB52, 50 gIsoflex Grease, TOPAS NB52, 50 g
