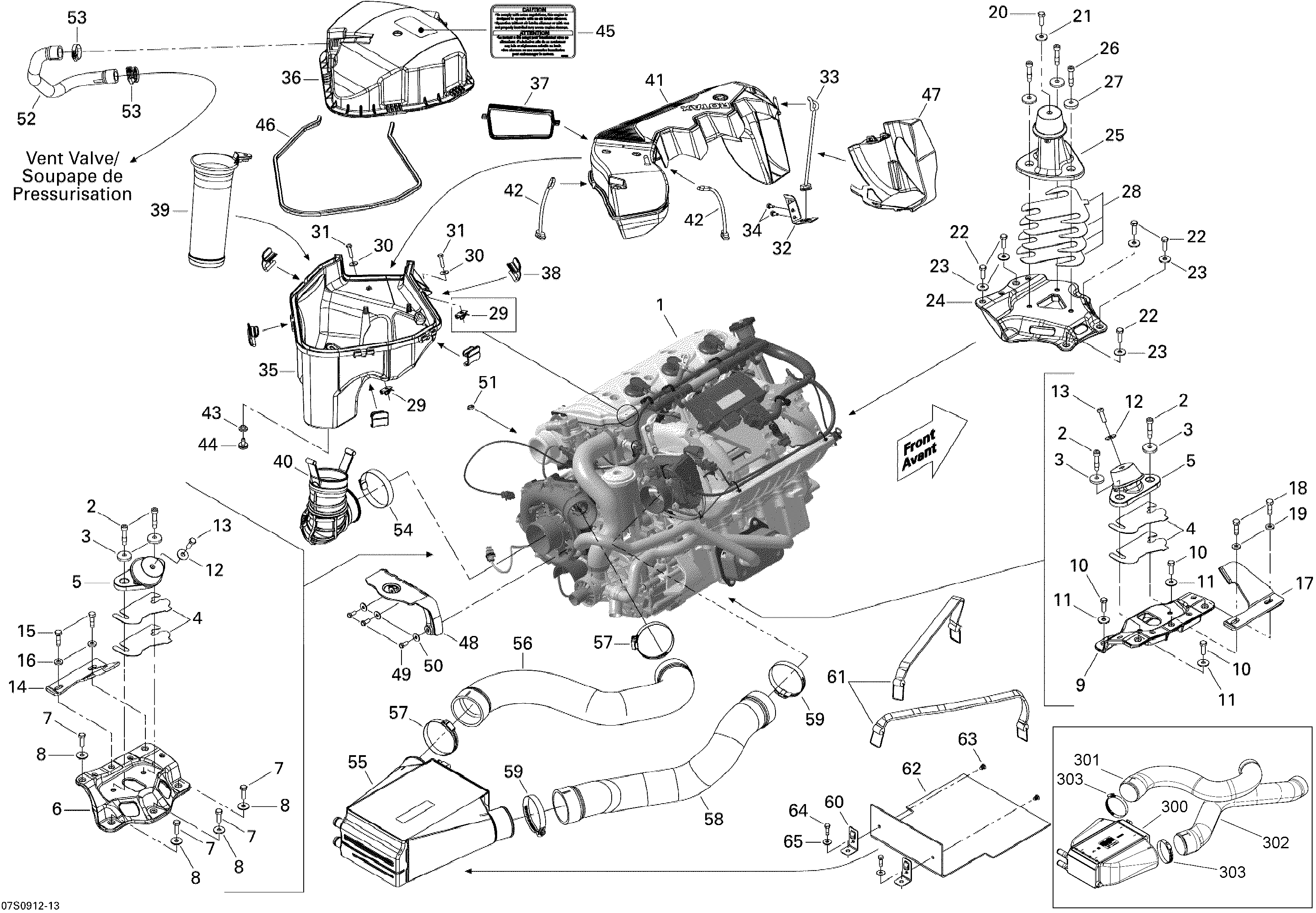

01- Engine And Air Intake Silencer для BRP RXT iS 255 - 2009
-
№АртикулНазвание
-
1420150365 Engine Long BlockEngine Long Block
-
2250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
3250200018 Cone WasherCone Washer
-
4270000762 Shim 1.3 mmShim 1.3 mm
-
5270000688 Rubber MountRubber Mount
-
6270000763 SpacerSpacer
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9270000766 SpacerSpacer
-
10207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
11234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
13207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
14270000796 LH StopperLH Stopper
-
15207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
16293050001 Flat WasherFlat Washer
-
17270000799 RH StopperRH Stopper
-
18207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
19293050001 Flat WasherFlat Washer
-
20207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
21234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
22207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
23234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
24270000767 SpacerSpacer
-
25270000738 Rubber MountRubber Mount
-
26250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
27250200018 Cone WasherCone Washer
-
28270000770 Shim 1.3 mmShim 1.3 mm
-
29420942108 ClipClip
-
30234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
31207362560 Hex Screw M6 X 25 With ThreadlockerHex Screw M6 X 25 With Threadlocker
-
32273000260 Air Intake Tube SupportAir Intake Tube Support
-
33273000261 Rubber LatchRubber Latch
-
34207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
35273000250 Exh. Emission Component Air Intake SilencesExh. Emission Component Air Intake Silences
-
36273000249 Exh. Emission Component Air Silencer CoverExh. Emission Component Air Silencer Cover
-
37293250190 SealSeal
-
38269501718 ClipClip
-
39273000252 Air Intake Silencer BaffleAir Intake Silencer Baffle
-
40273000251 Air Intake Silencer Outlet HoseAir Intake Silencer Outlet Hose
-
41273000253 Air Intake TubeAir Intake Tube
-
42269501299 Rubber LatchRubber Latch
-
43293720064 GrommetGrommet
-
44275500454 Check ValveCheck Valve
-
45219902673 Caution Decal, Air SilencerCaution Decal, Air Silencer
-
46293200123 Neoprene SealNeoprene Seal
-
47273000271 DeflectorDeflector
-
48270000735 Air Intake Silencer SupportAir Intake Silencer Support
-
49207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
50234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
51293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
52270000761 Formed HoseFormed Hose
-
53293650051 Tridon Gear ClampTridon Gear Clamp
-
54293650179 Tridon Gear ClampTridon Gear Clamp
-
55276000179 IntercoolerIntercooler
-
56273000254 Inlet Hose CoolerInlet Hose Cooler
-
57293650107 Tridon ClampTridon Clamp
-
58273000255 Outlet Hose CoolerOutlet Hose Cooler
-
59293650107 Tridon ClampTridon Clamp
-
60275500743 Strap Clip 90°Strap Clip 90°
-
61293850067 StrapStrap
-
62293830138 Rubber PadRubber Pad
-
63293730016 Dart, BlackDart, Black
-
64243162060 Hex. Flanged Screw M6.3 x 20Hex. Flanged Screw M6.3 x 20
-
65234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
