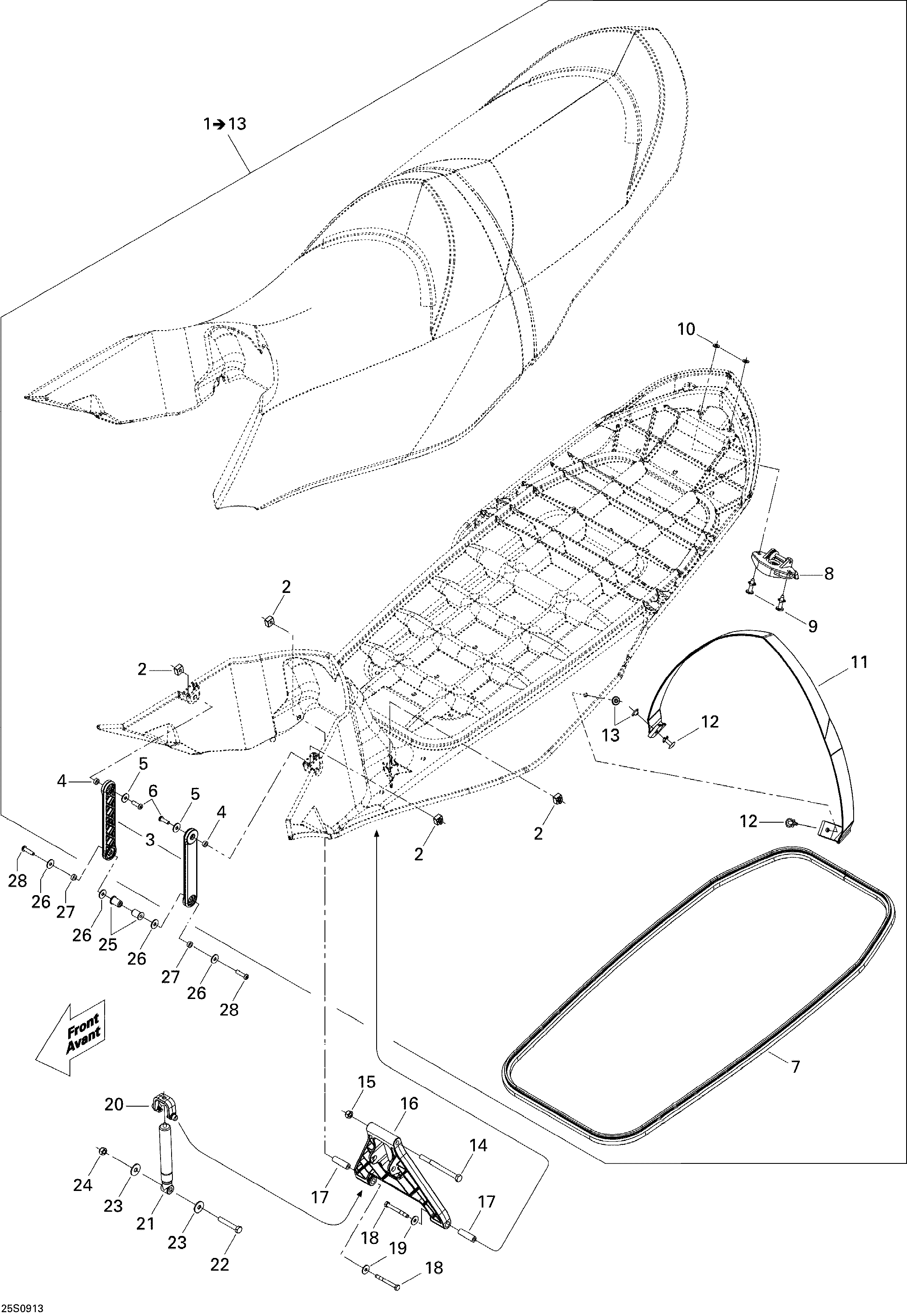

09- Seat для BRP RXT iS 255 - 2009
-
№АртикулНазвание
-
1269001577 Seat Ass'y. Includes 1 to 13Seat Ass'y. Includes 1 to 13
-
2269501166 Nut Housing Ass'yNut Housing Ass'y
-
3296000299 Lateral Arm. Includes Spacer 269001588 (2x)Lateral Arm. Includes Spacer 269001588 (2x)
-
5234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6205462060 Socket Screw M6 X 20Socket Screw M6 X 20
-
7293200124 SealSeal
-
8269700109 Latch Ass'yLatch Ass'y
-
9293150151 Rivet 1/4''Rivet 1/4''
-
10234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11269001580 Seat StrapSeat Strap
-
12293150067 RivetRivet
-
13293720067 GrommetGrommet
-
14230080060 Hex. Screw M8 X 100Hex. Screw M8 X 100
-
15232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
16269501699 Center ArmCenter Arm
-
17269001589 SpacerSpacer
-
18207265560 Hex. Screw M6 X 55, Scotch GripHex. Screw M6 X 55, Scotch Grip
-
19234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
20269001575 End FittingEnd Fitting
-
21269001537 ShockShock
-
22207085060 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
23234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
24232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
25250100083 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
26234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27269001588 SpacerSpacer
-
28205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
