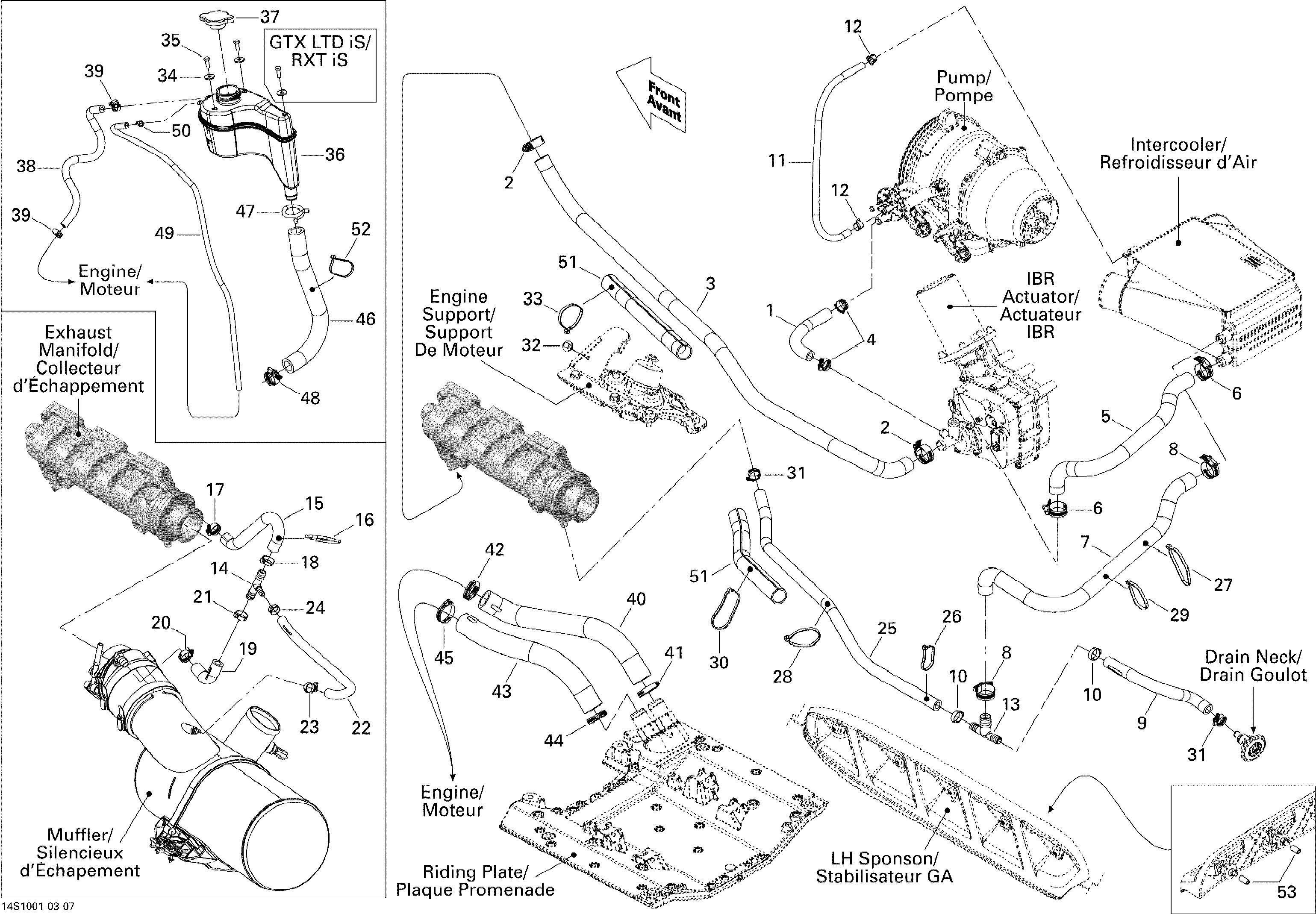

01- Cooling System для BRP RXT-X and X RS 260 - 2010
-
№АртикулНазвание
-
1276000237 Formed HoseFormed Hose
-
2293650051 Tridon Gear ClampTridon Gear Clamp
-
3276000238 Formed HoseFormed Hose
-
4293650172 Tridon Gear ClampTridon Gear Clamp
-
5276000099 Hose 19 mmHose 19 mm
-
6293650051 Tridon Gear ClampTridon Gear Clamp
-
7276000099 Hose 19 mmHose 19 mm
-
8293650051 Tridon Gear ClampTridon Gear Clamp
-
9276000239 Formed HoseFormed Hose
-
10293650012 Oetiker ClampOetiker Clamp
-
11275500548 Hose 5/16''Hose 5/16''
-
12293650171 Tridon Gear ClampTridon Gear Clamp
-
13293710132 T-FittingT-Fitting
-
14293710116 T-FittingT-Fitting
-
15276000244 Formed HoseFormed Hose
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
17293650172 Tridon Gear ClampTridon Gear Clamp
-
18293650012 Oetiker ClampOetiker Clamp
-
19276000245 Lower Formed HoseLower Formed Hose
-
20293650172 Tridon Gear ClampTridon Gear Clamp
-
21293650012 Oetiker ClampOetiker Clamp
-
22276000246 Formed HoseFormed Hose
-
23293650171 Tridon Gear ClampTridon Gear Clamp
-
24293650030 Oetiker ClampOetiker Clamp
-
25276000151 Hose 12.5 mmHose 12.5 mm
-
26293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
28293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
29293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
31293650172 Tridon Gear ClampTridon Gear Clamp
-
32293730040 Mount DartMount Dart
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
34234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
35207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
36276000265 Coolant TankCoolant Tank
-
37276000100 Pressure Cap Ass'yPressure Cap Ass'y
-
38275500549 Hose 1/4''Hose 1/4''
-
39293650170 Tridon Gear ClampTridon Gear Clamp
-
40276000240 Radiator HoseRadiator Hose
-
41293650185 Tridon Gear ClampTridon Gear Clamp
-
42293650185 Tridon Gear ClampTridon Gear Clamp
-
43276000241 Radiator HoseRadiator Hose
-
44293650185 Tridon Gear ClampTridon Gear Clamp
-
45293650185 Tridon Gear ClampTridon Gear Clamp
-
46276000099 Hose 19 mmHose 19 mm
-
47293650115 Spring ClampSpring Clamp
-
48293650019 Tridon Gear ClampTridon Gear Clamp
-
49415080200 Hose, PolyurethaneHose, Polyurethane
-
50293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
51409902200 Tubing 25 mmTubing 25 mm
-
52414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
53415080200 Hose, PolyurethaneHose, Polyurethane
