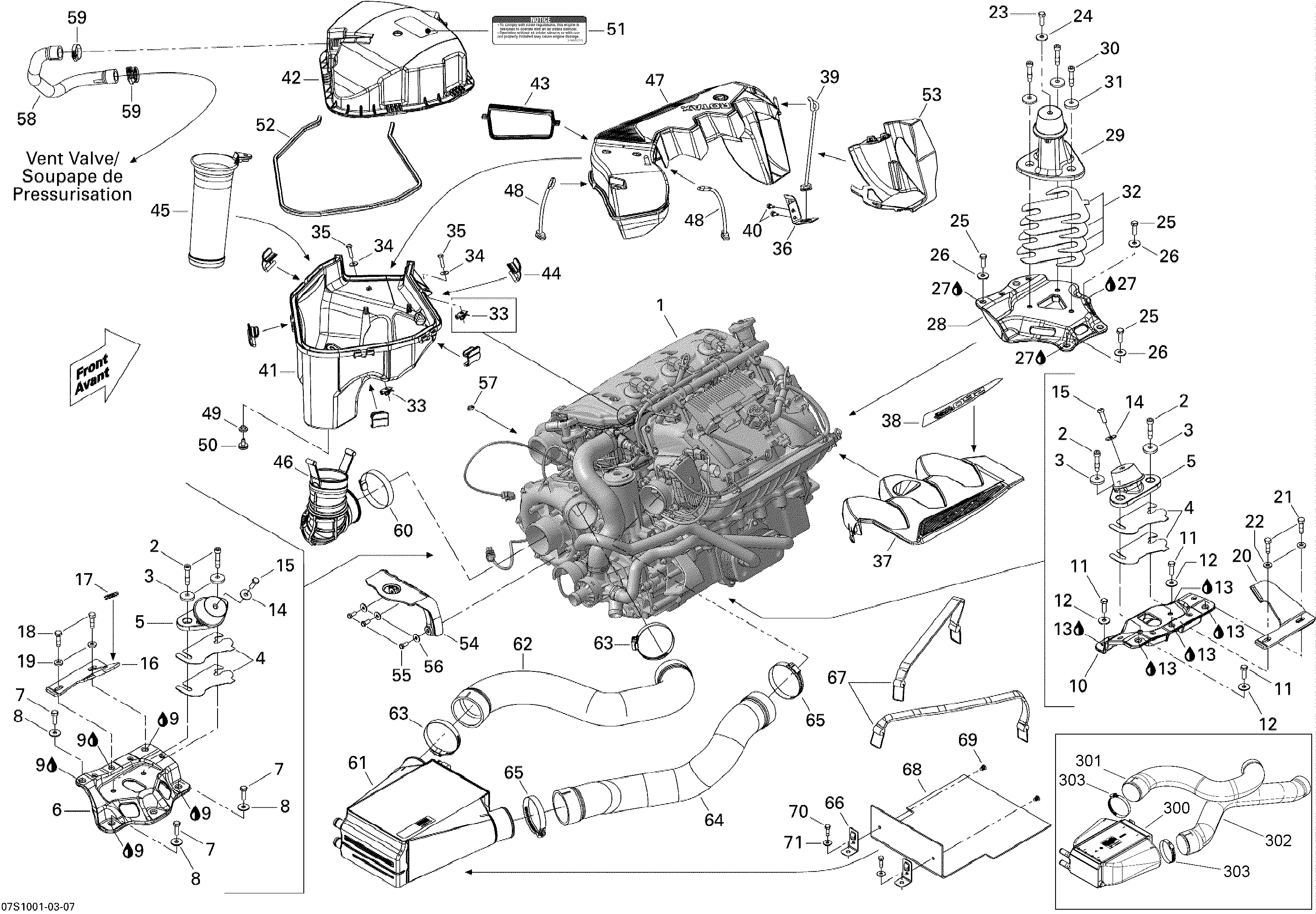

01- Engine And Air Intake Silencer для BRP RXT-X and X RS 260 - 2010
-
№АртикулНазвание
-
1420150365 Engine Long BlockEngine Long Block
-
2250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
3250200018 Cone WasherCone Washer
-
4270000762 Shim 1.3 mmShim 1.3 mm
-
5270000669 Rubber MountRubber Mount
-
6270000763 SpacerSpacer
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
10270000766 SpacerSpacer
-
11207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
12234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
13293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
16270000796 LH StopperLH Stopper
-
17204610371 Trim, BlackTrim, Black
-
18207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
19293050001 Flat WasherFlat Washer
-
20270000799 RH StopperRH Stopper
-
21207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
22293050001 Flat WasherFlat Washer
-
23207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
24234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
25207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
26234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
27293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
28270000767 SpacerSpacer
-
29270000738 Rubber MountRubber Mount
-
30250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
31250200018 Cone WasherCone Washer
-
32270000770 Shim 1.3 mmShim 1.3 mm
-
33420942108 ClipClip
-
34234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
35207362560 Hex Screw M6 X 25 With ThreadlockerHex Screw M6 X 25 With Threadlocker
-
36273000260 Air Intake Tube SupportAir Intake Tube Support
-
37270000804 Engine CoverEngine Cover
-
38219903235 Engine Decal, 260 4-TECEngine Decal, 260 4-TEC
-
39273000261 Rubber LatchRubber Latch
-
40207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
41273000250 Exh. Emission Component Air Intake SilencesExh. Emission Component Air Intake Silences
-
42273000249 Exh. Emission Component Air Silencer CoverExh. Emission Component Air Silencer Cover
-
43293250190 SealSeal
-
44269501718 ClipClip
-
45273000252 Air Intake Silencer BaffleAir Intake Silencer Baffle
-
46273000251 Air Intake Silencer Outlet HoseAir Intake Silencer Outlet Hose
-
47273000253 Air Intake TubeAir Intake Tube
-
48269501299 Rubber LatchRubber Latch
-
49293720064 GrommetGrommet
-
50275500454 Check ValveCheck Valve
-
51219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
52293200123 Neoprene SealNeoprene Seal
-
53273000271 DeflectorDeflector
-
54270000735 Air Intake Silencer SupportAir Intake Silencer Support
-
55207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
56234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
57293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
58270000807 Formed HoseFormed Hose
-
59293650051 Tridon Gear ClampTridon Gear Clamp
-
60293650179 Tridon Gear ClampTridon Gear Clamp
-
61276000179 IntercoolerIntercooler
-
62273000282 Intercooler Inlet HoseIntercooler Inlet Hose
-
63293650179 Tridon Gear ClampTridon Gear Clamp
-
64273000283 Outlet Hose CoolerOutlet Hose Cooler
-
65293650179 Tridon Gear ClampTridon Gear Clamp
-
66275500743 Strap Clip 90°Strap Clip 90°
-
67293850093 StrapStrap
-
68293830138 Rubber PadRubber Pad
-
69293730016 Dart, BlackDart, Black
-
70243162060 Hex. Flanged Screw M6.3 x 20Hex. Flanged Screw M6.3 x 20
-
71234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
300276000397 Intercooler. Incl Zinc Anode 271001942Intercooler. Incl Zinc Anode 271001942
-
301273000361 Formed HoseFormed Hose
-
302273000362 Formed HoseFormed Hose
-
303293650244 Tridon Gear Clamp. Ref Service Bulletin 2015-7Tridon Gear Clamp. Ref Service Bulletin 2015-7
