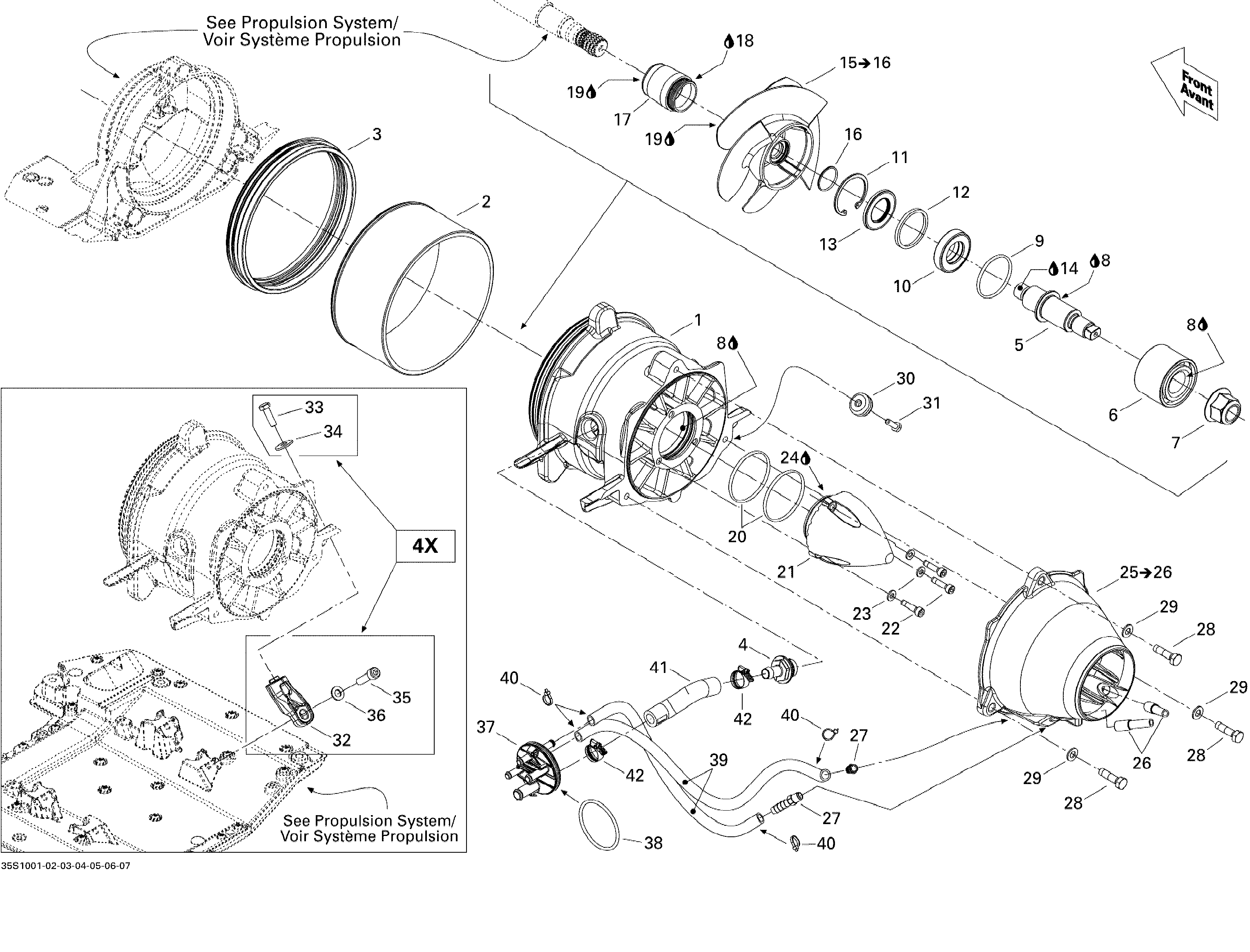

05- Pump для BRP RXT-X and X RS 260 - 2010
-
№АртикулНазвание
-
1267000380 Impeller HousingImpeller Housing
-
2267000372 Wear RingWear Ring
-
3293200122 Neoprene SealNeoprene Seal
-
4267000387 FittingFitting
-
5267000388 Impeller ShaftImpeller Shaft
-
6267000030 Angled BearingAngled Bearing
-
7250100104 Elastic Flanged NutElastic Flanged Nut
-
8293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
9293300090 O-RingO-Ring
-
10293200086 Oil SealOil Seal
-
11293370038 CirclipCirclip
-
12271001393 SpacerSpacer
-
13293200089 Oil SealOil Seal
-
14293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
15267000507 Stainless Steel Impeller. Includes 15 to 16Stainless Steel Impeller. Includes 15 to 16
-
16293300114 O-RingO-Ring
-
17267000458 Impeller Boot Ass'yImpeller Boot Ass'y
-
18293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
19293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
20293300086 O-RingO-Ring
-
21267000428 Impeller CoverImpeller Cover
-
22205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
23234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
24293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
25267000503 Venturi Ass'y. Includes 25 to 26Venturi Ass'y. Includes 25 to 26
-
26271001133 Siphon TubeSiphon Tube
-
27293710017 Male ConnectorMale Connector
-
28207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
29234081600 Flat Washer 8 mmFlat Washer 8 mm
-
30271001487 Anode ZincAnode Zinc
-
31207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
32267000482 AdaptorAdaptor
-
33207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
34234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
35205583060 Socket Head Screw M8 X 30, Scotch GripSocket Head Screw M8 X 30, Scotch Grip
-
36293050001 Flat WasherFlat Washer
-
37267000474 Fitting PlateFitting Plate
-
38267000477 O-RingO-Ring
-
39415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
40293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
41267000512 HoseHose
-
42293650172 Tridon Gear ClampTridon Gear Clamp
