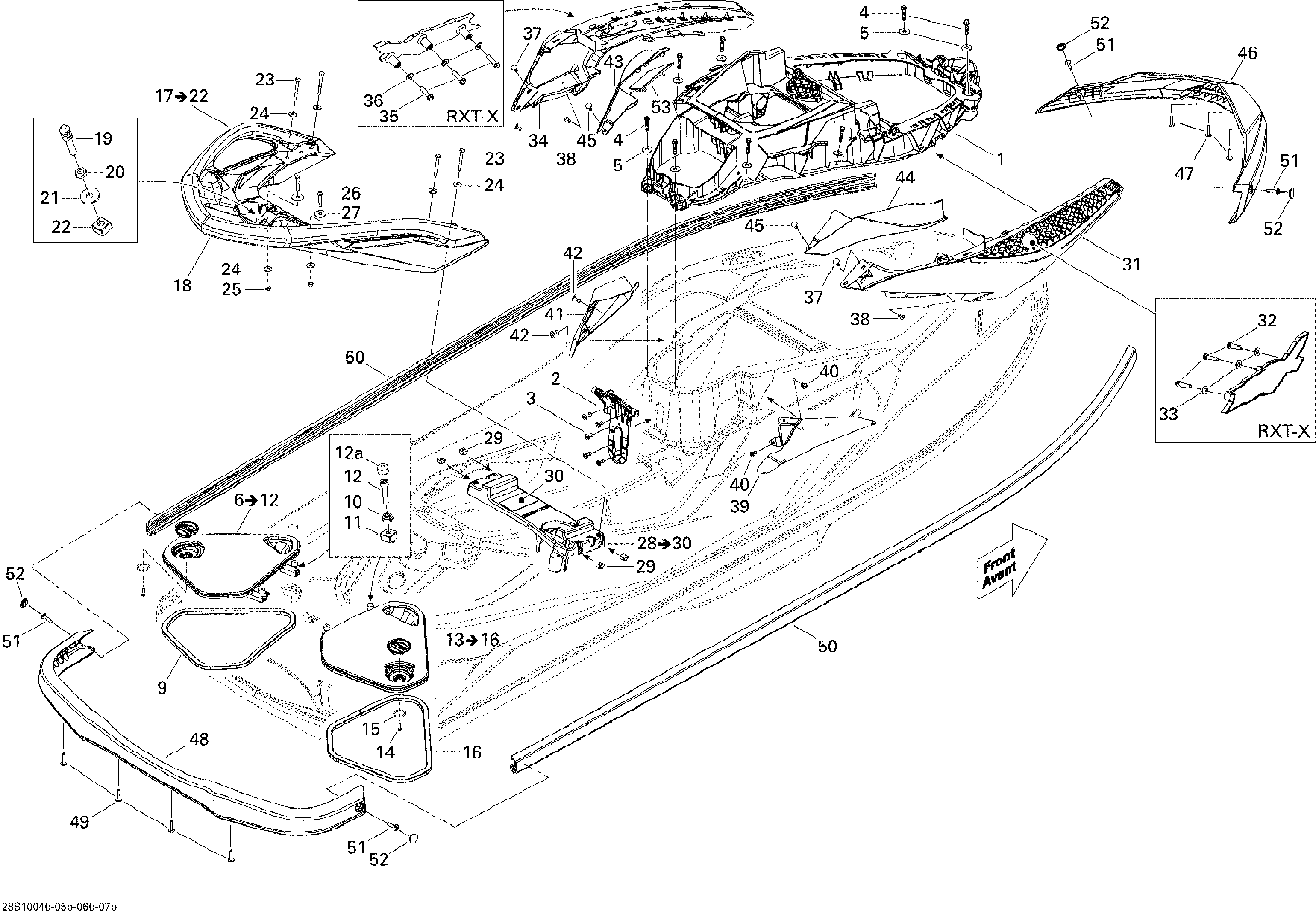

09- Body, Rear View 2 для BRP RXT-X and X RS 260 - 2010
-
№АртикулНазвание
-
1291003017 Front ModuleFront Module
-
2269001691 Mounting Case AbsorberMounting Case Absorber
-
3293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
4243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
5234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6291003253 LH Access Cover Ass'y. Includes 6 to 12LH Access Cover Ass'y. Includes 6 to 12
-
9293200093 Neoprene SealNeoprene Seal
-
12a291003038 RubberRubber
-
13291003254 RH Access Cover Ass'y. Includes 13 to 16RH Access Cover Ass'y. Includes 13 to 16
-
14211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
15293300121 O-RingO-Ring
-
16293200093 Neoprene SealNeoprene Seal
-
18269001657 Rear Grab HandleRear Grab Handle
-
19291002784 Seat StudSeat Stud
-
20232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
21234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
22271000598 Nut Housing Ass'yNut Housing Ass'y
-
23207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
24234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
25232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
26207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
27250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
28291002947 Lower Deck Ass'y. Includes 28 to 30Lower Deck Ass'y. Includes 28 to 30
-
29269501166 Nut Housing Ass'yNut Housing Ass'y
-
30219903184 Caution Engine OilCaution Engine Oil
-
31291002941 RH Front Cover Ass'yRH Front Cover Ass'y
-
32241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
33234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
34291002945 LH Front Cover Ass'yLH Front Cover Ass'y
-
35241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
36234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
37293730006 Dart, BlackDart, Black
-
38293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
39291002596 RH Seat Pad, BlackRH Seat Pad, Black
-
40293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
41291002595 LH Seat Pad, BlackLH Seat Pad, Black
-
42293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
43291002920 LH Upper CapLH Upper Cap
-
44291002922 RH Upper CapRH Upper Cap
-
45293730006 Dart, BlackDart, Black
-
46291002588 Front BumberFront Bumber
-
47250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
48291002592 Rear BumberRear Bumber
-
49250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
50291003050 Lateral BumperLateral Bumper
-
51250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
52291002744 Bumber CapBumber Cap
-
53291002756 Front Rewinder CapFront Rewinder Cap
