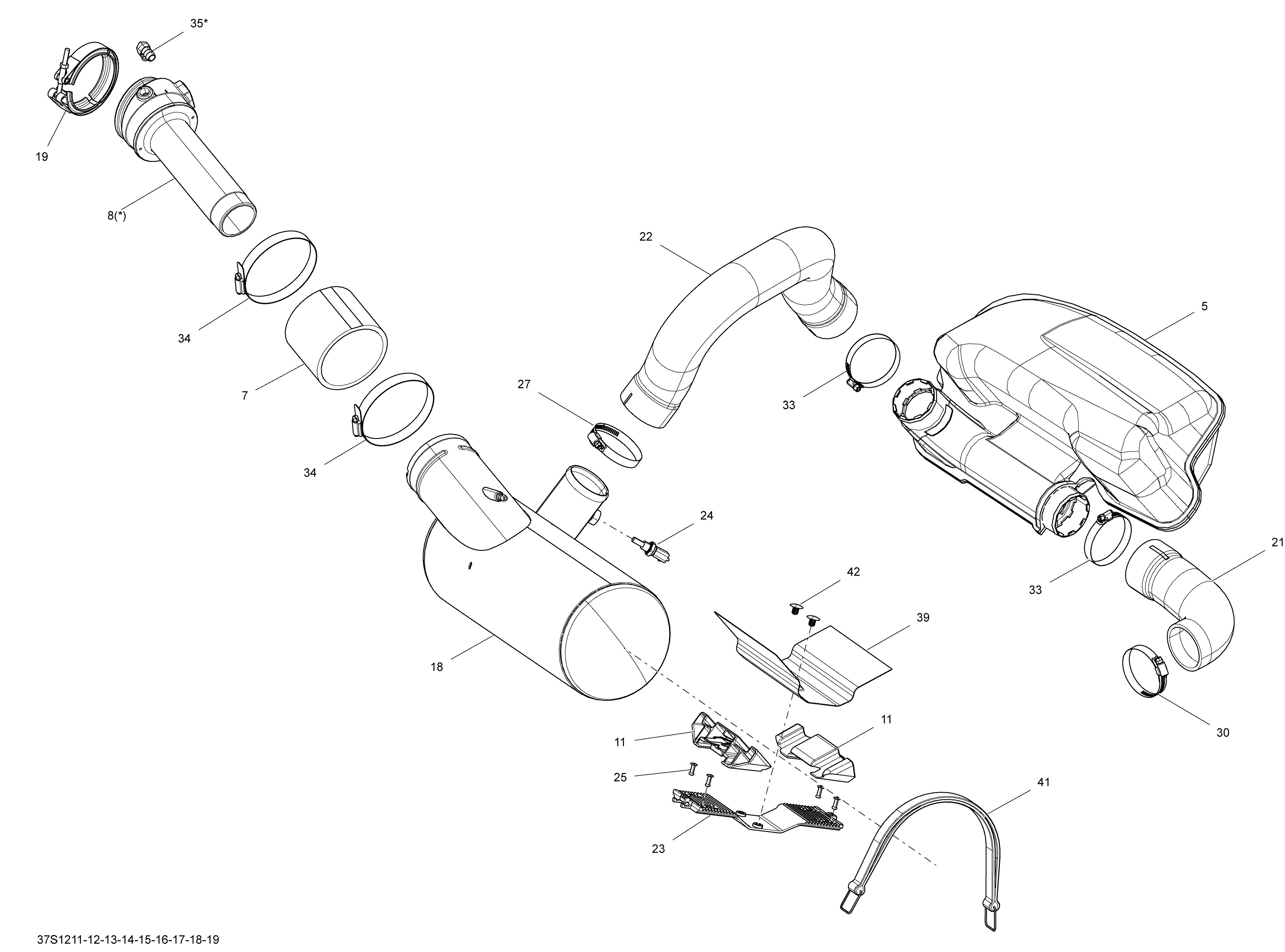

01- Exhaust System для BRP GTX LTD iS 260 (18CA, 18CB) - 2012
-
№АртикулНазвание
-
5274001366 ResonatorResonator
-
7274001348 HoseHose
-
8274001489 Head Pipe Ass'yHead Pipe Ass'y
-
11274001358 StopperStopper
-
18274001384 MufflerMuffler
-
19274001417 Exhaust ClampExhaust Clamp
-
21274001423 Exhaust Hose, RearExhaust Hose, Rear
-
22274001458 Front Formed Exhaust HoseFront Formed Exhaust Hose
-
23274001479 Exhaust Muffler SupportExhaust Muffler Support
-
24278001016 Temperature SensorTemperature Sensor
-
25293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
27293650179 Tridon ClampTridon Clamp
-
30293650179 Tridon ClampTridon Clamp
-
33293650179 Tridon ClampTridon Clamp
-
34293650202 Gear ClampGear Clamp
-
35293700023 Elbow Fitting 90°Elbow Fitting 90°
-
39293830150 Rubber PadRubber Pad
-
41293850093 Fuel Tank StrapFuel Tank Strap
-
42414939500 DartDart
