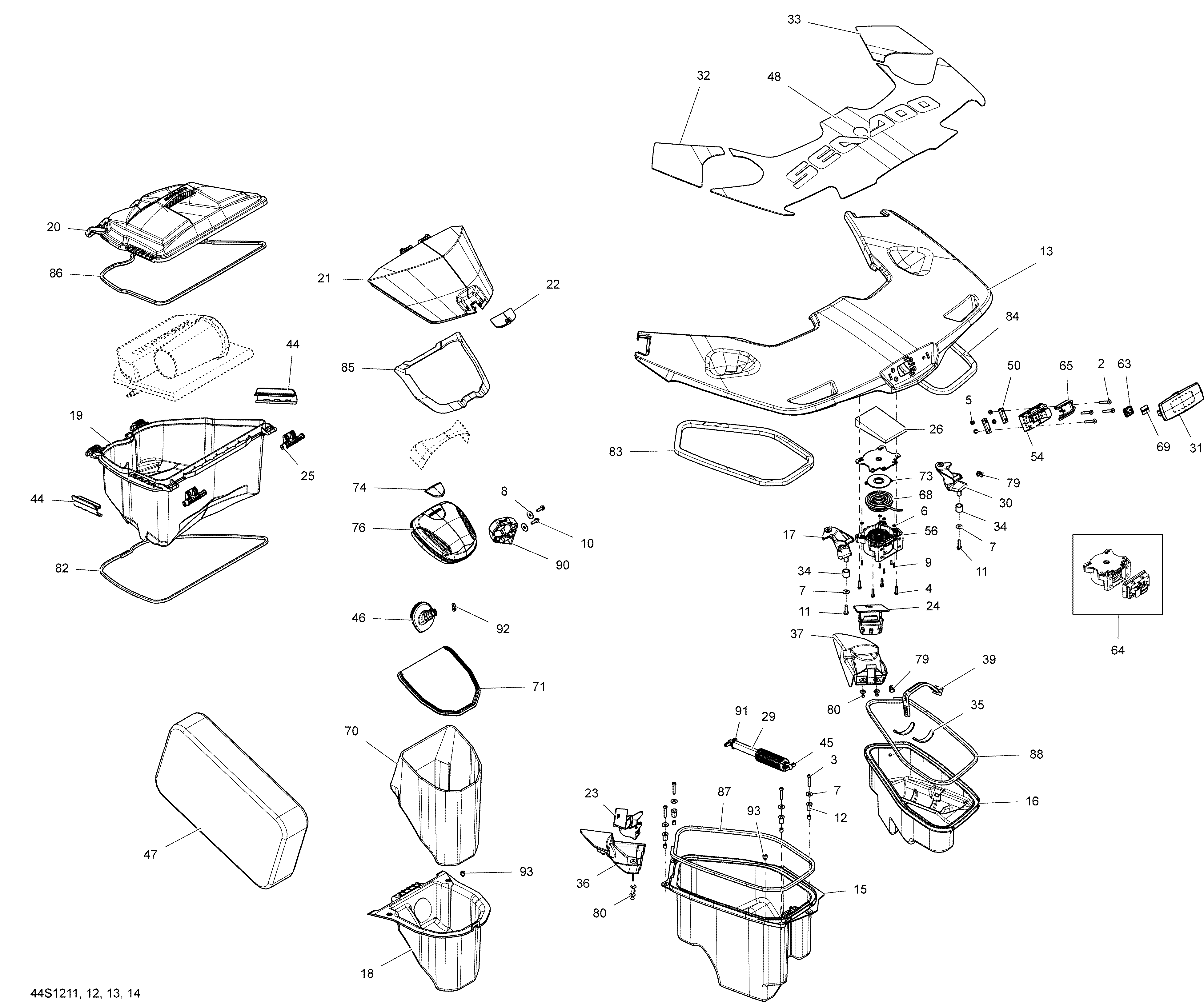

09- Storage Compartments для BRP GTX LTD iS 260 (18CA, 18CB) - 2012
-
№АртикулНазвание
-
2205364560 Socket Screw Head M6 X 45. LTDSocket Screw Head M6 X 45. LTD
-
3205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
4211000023 Hex. Screw 10-14 X 7/8''. LTDHex. Screw 10-14 X 7/8''. LTD
-
5232561200 Elastic Stop Nut M6, Brass. LTDElastic Stop Nut M6, Brass. LTD
-
6234032600 Flat Washer M3, Stainless. LTDFlat Washer M3, Stainless. LTD
-
7234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9241731260 Oval Philipp Screw KA30 x 12. LTDOval Philipp Screw KA30 x 12. LTD
-
11243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
12250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
13264000034 Rear Platform Ass'yRear Platform Ass'y
-
15264000001 LH Rear TrayLH Rear Tray
-
16264000002 RH Rear TrayRH Rear Tray
-
17264000003 LH Pivot SupportLH Pivot Support
-
18264000031 Glove Box Ass'yGlove Box Ass'y
-
19264000087 Storage Bin Ass'yStorage Bin Ass'y
-
20264000009 Storage Bin Cover Ass'yStorage Bin Cover Ass'y
-
21264000067 Glove Door, White. LTDGlove Door, White. LTD
-
22264000019 Latch, Black. LTDLatch, Black. LTD
-
23264000020 LH LatchLH Latch
-
24264000021 RH LatchRH Latch
-
25264000024 LatchLatch
-
26264000025 Platform Foam. LTDPlatform Foam. LTD
-
29264000026 Shock Ass'yShock Ass'y
-
30264000032 RH Pivot SupportRH Pivot Support
-
31291002725 Rear Rewind Frame. LTDRear Rewind Frame. LTD
-
32264000040 LH Platform CarpetLH Platform Carpet
-
33264000041 RH Platform CarpetRH Platform Carpet
-
34264000042 SpacerSpacer
-
35264000043 Tray PadTray Pad
-
36264000055 LH Latch Base, BlackLH Latch Base, Black
-
37264000056 RH Latch Base, BlackRH Latch Base, Black
-
39269500408 StrapStrap
-
44269501609 ClipClip
-
45269501717 Shock End PieceShock End Piece
-
47280000460 Cover, GTX LTD IS. LTDCover, GTX LTD IS. LTD
-
48291002585 Rear Platform CarpetRear Platform Carpet
-
50291002755 Double Cage Nut Ass'y. LTDDouble Cage Nut Ass'y. LTD
-
54291003023 Jam Cleat System Ass'y. LTDJam Cleat System Ass'y. LTD
-
63291002726 Button. LTDButton. LTD
-
64291003022 Retractable Rope Ass'y. LTDRetractable Rope Ass'y. LTD
-
65291002727 Under Cam. LTDUnder Cam. LTD
-
68291002733 Rope 3/16''. LTDRope 3/16''. LTD
-
69291002754 Button Cap. LTDButton Cap. LTD
-
73291002762 Inside Cover. LTDInside Cover. LTD
-
74291002793 Sea-Doo Decal. LTDSea-Doo Decal. LTD
-
76291002814 Removable Case Ass'y. LTDRemovable Case Ass'y. LTD
-
79293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
80293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
82293250161 GasketGasket
-
83293250186 GasketGasket
-
84293250186 GasketGasket
-
85293250204 GasketGasket
-
86293250210 Neoprene SealNeoprene Seal
-
87293250218 GasketGasket
-
88293250218 GasketGasket
-
91293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
93293830005 Rubber PlugRubber Plug
