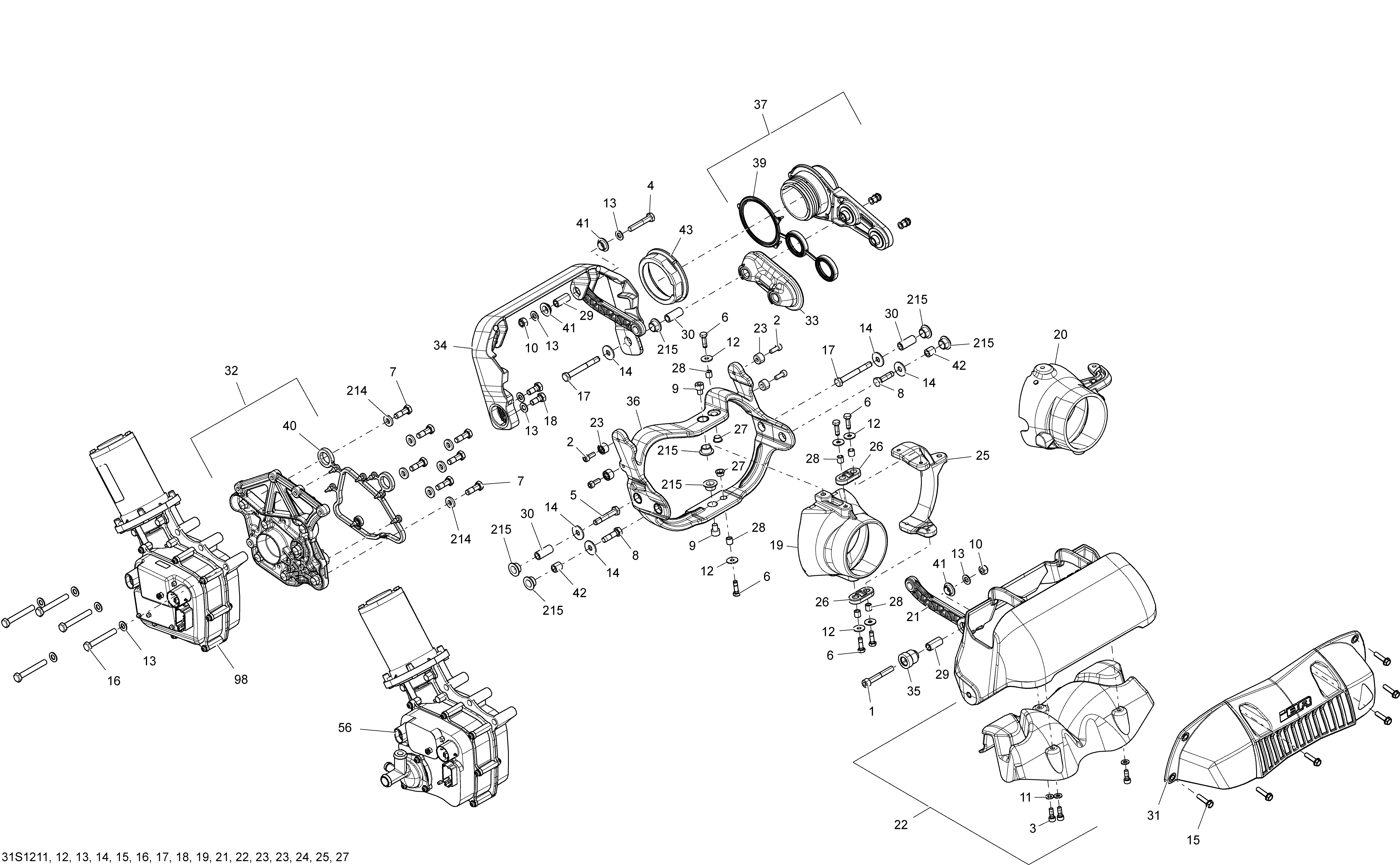

05- Reverse для BRP GTX LTD iS 260 (18CA, 18CB) - 2012
-
№АртикулНазвание
-
1205085560 Socket Head Screw M8 X 55Socket Head Screw M8 X 55
-
2205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
3205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
4207084560 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
5207284560 Hex. Screw S. Grip M8 X 45Hex. Screw S. Grip M8 X 45
-
6207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
9211000127 Socket Head Screw M8 X 10, Scotch GripSocket Head Screw M8 X 10, Scotch Grip
-
10232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
11234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
13234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
16250000187 Hex. Screw M8 X 60, Scotch GripHex. Screw M8 X 60, Scotch Grip
-
17250000506 Hex. Screw M8 X 70, Scotch GripHex. Screw M8 X 70, Scotch Grip
-
18250000595 Hex Screw S.Grip M8 X 20Hex Screw S.Grip M8 X 20
-
19267000397 Direction Nozzle, BlackDirection Nozzle, Black
-
21268000042 Linkage ArmLinkage Arm
-
22268000048 Reverse Gate Ass'yReverse Gate Ass'y
-
23268000045 Friction SleeveFriction Sleeve
-
25268000064 Direction Nozzle Lever, BlackDirection Nozzle Lever, Black
-
26268000058 Direction Lever ArmDirection Lever Arm
-
27268000059 BushingBushing
-
28268000060 SpacerSpacer
-
29268000062 SpacerSpacer
-
30268000063 SpacerSpacer
-
31268000066 GuardGuard
-
32268000111 LH Fixing Plate Ass'yLH Fixing Plate Ass'y
-
33268000085 RH Support PlateRH Support Plate
-
34268000087 U Arm, BlackU Arm, Black
-
35268000099 BushingBushing
-
36268000100 Trimming Ring, BlackTrimming Ring, Black
-
37268000130 RH Fixing Plate Ass'yRH Fixing Plate Ass'y
-
39268000105 RH Formed SealRH Formed Seal
-
40268000129 LH Formed SealLH Formed Seal
-
41271000321 Venturi BushingVenturi Bushing
-
42271001039 SpacerSpacer
-
43274000224 Nut 72 mmNut 72 mm
-
56278002846 IBR ActuatorIBR Actuator
-
214293050001 Flat WasherFlat Washer
-
215293900007 Venturi BushingVenturi Bushing
