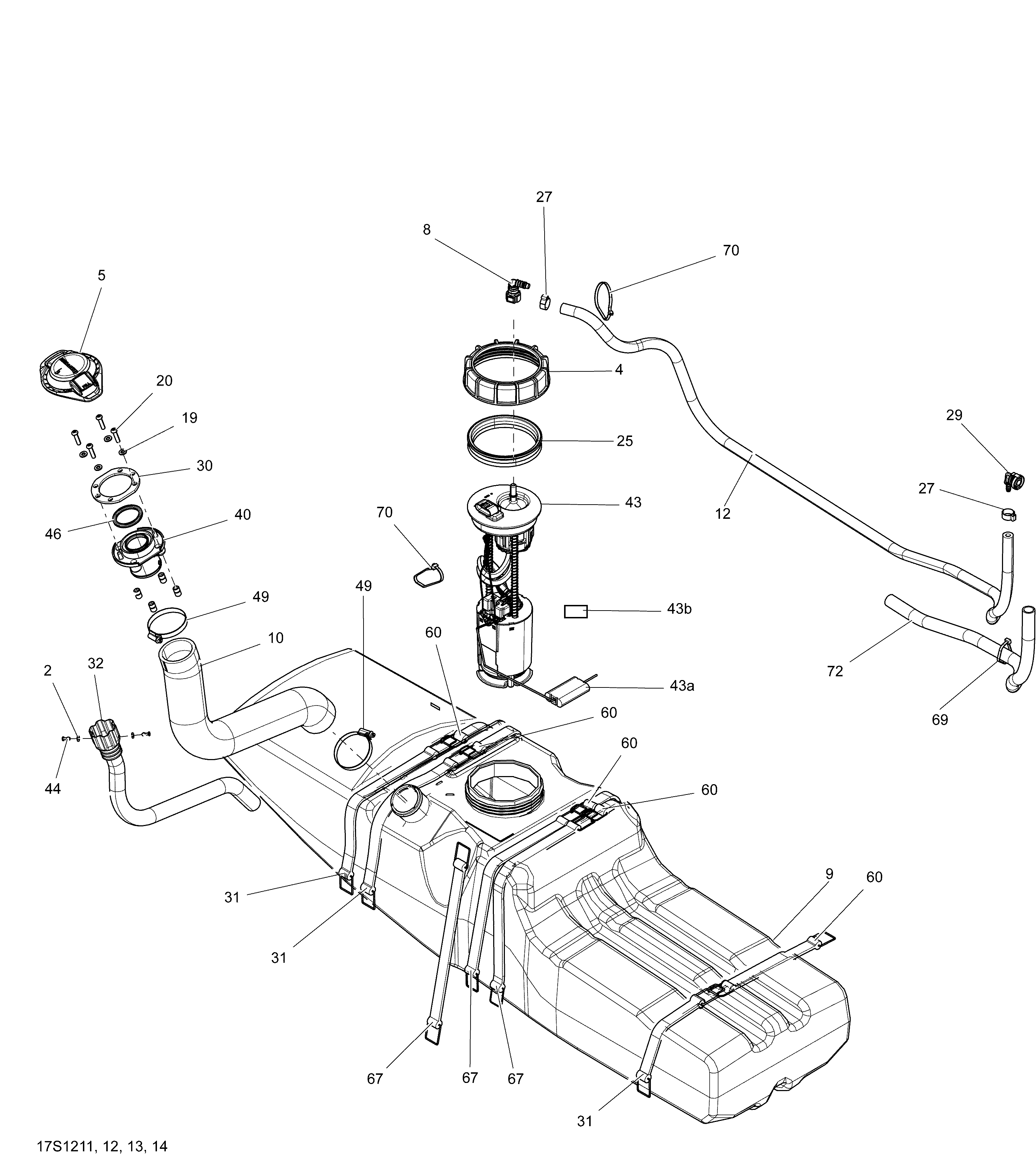

02- Fuel System для BRP GTX LTD iS 260 (18CA, 18CB) - 2012
-
№АртикулНазвание
-
2234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
4250100062 Special Nut M130Special Nut M130
-
5275500832 Fuel Cap Ass'yFuel Cap Ass'y
-
8275500700 Quick Attach 90°Quick Attach 90°
-
9275500783 Fuel Tank Ass'yFuel Tank Ass'y
-
10275500778 Filler Neck HoseFiller Neck Hose
-
12296000331 BoyauBoyau
-
19234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
20250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
25293250173 GasketGasket
-
27293650053 Crimp ClampCrimp Clamp
-
29293710105 Elbow Fitting 90°Elbow Fitting 90°
-
31293850087 Fuel Tank StrapFuel Tank Strap
-
32275500757 Filler Neck, InteriorFiller Neck, Interior
-
40275500848 Fuel Filler NeckFuel Filler Neck
-
43275500850 Fuel Pump Ass'yFuel Pump Ass'y
-
43a275500780 Sensor LeverSensor Lever
-
43b270600108 Fuel FilterFuel Filter
-
44293150032 Pop Rivet 1/8''Pop Rivet 1/8''
-
46293300139 X-RingX-Ring
-
49293650081 Norma ClampNorma Clamp
-
60293850094 Fuel Tank StrapFuel Tank Strap
-
67293850095 Fuel Tank StrapFuel Tank Strap
-
69293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
70414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
72415080000 Tubing 16 mmTubing 16 mm
