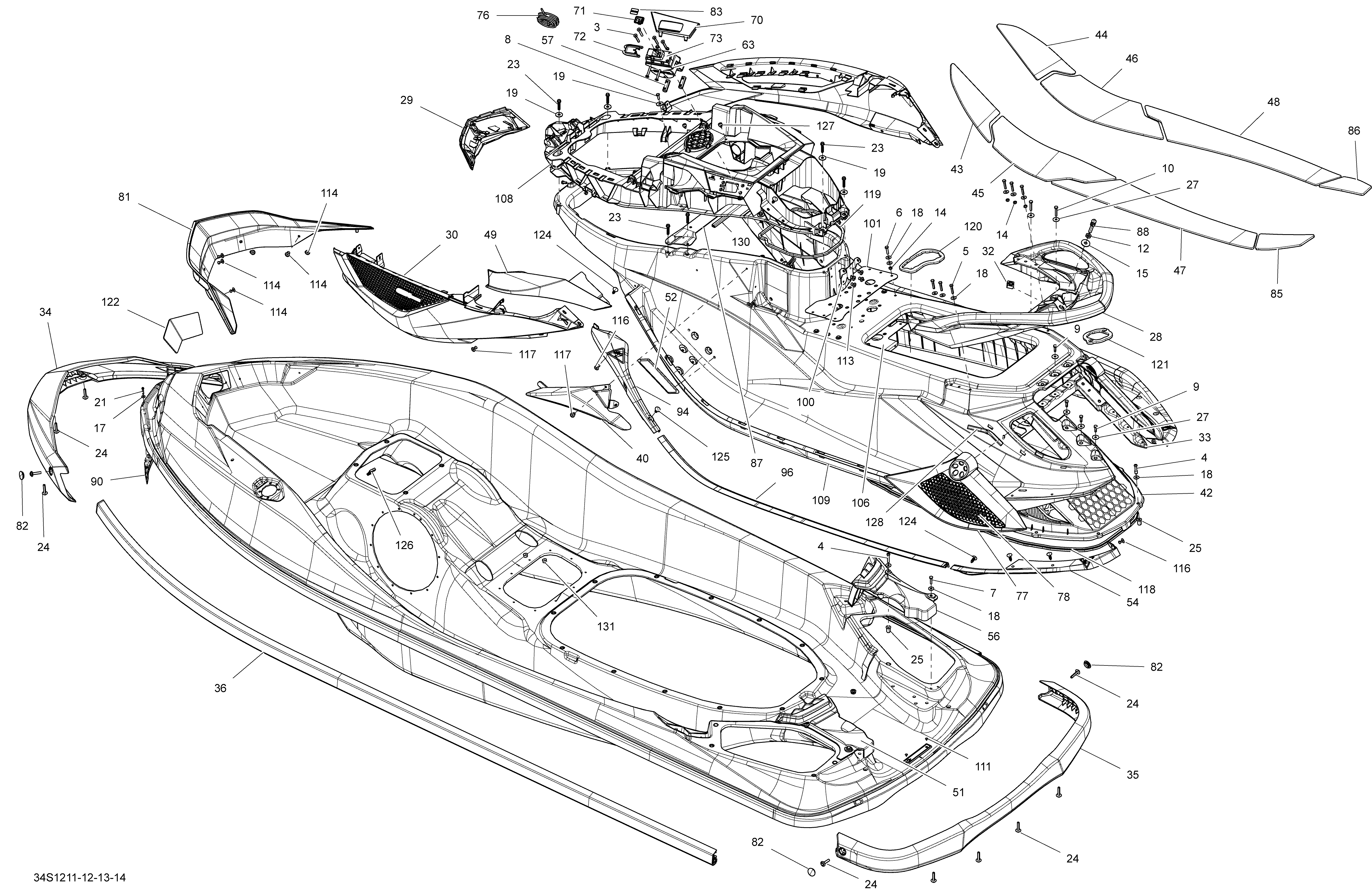

09- Body для BRP GTX S 155 - 2012
-
№АртикулНазвание
-
4205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
5207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
6207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
7207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
8207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
9207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
10207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
12232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
14232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
15234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
17234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
18234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
19234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
23243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
24250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
25250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
27250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
28291004621 Black Rear HandleBlack Rear Handle
-
29269501797 Front GridFront Grid
-
30291003502 RH Front Moulding Ass'yRH Front Moulding Ass'y
-
30291003505 LH Front Moulding Ass'yLH Front Moulding Ass'y
-
32271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
33279000214 Rear Pivot Ass'yRear Pivot Ass'y
-
34291002588 Front BumberFront Bumber
-
35291002592 Rear BumberRear Bumber
-
36291003050 Lateral BumperLateral Bumper
-
40291003192 RH Seat Pad, BlackRH Seat Pad, Black
-
40291003193 LH Seat Pad, BlackLH Seat Pad, Black
-
42291002763 Deck Extension Ass'yDeck Extension Ass'y
-
43291002607 LH Front CarpetLH Front Carpet
-
44291002608 RH Front CarpetRH Front Carpet
-
45291003463 LH Center Front CarpetLH Center Front Carpet
-
46291003464 RH Center Front CarpetRH Center Front Carpet
-
47291003465 LH Center Rear CarpetLH Center Rear Carpet
-
48291003466 RH Center Rear CarpetRH Center Rear Carpet
-
49291003515 LH Upper Body Cap CoverLH Upper Body Cap Cover
-
49291003516 RH Upper Body Cap CoverRH Upper Body Cap Cover
-
51291002658 LH Rear GrillLH Rear Grill
-
52291002694 LH Footrest CoverLH Footrest Cover
-
52291002695 RH Footrest CoverRH Footrest Cover
-
54291002696 LH Rear Scraper JointLH Rear Scraper Joint
-
54291002697 RH Rear Scraper JointRH Rear Scraper Joint
-
56291002698 RH Rear GrillRH Rear Grill
-
70291002756 Front Rewinder CapFront Rewinder Cap
-
71291002726 ButtonButton
-
77291002739 LH Lateral Rear TrimLH Lateral Rear Trim
-
77291002741 RH Lateral Rear TrimRH Lateral Rear Trim
-
78291002740 LH Rear Side GrilleLH Rear Side Grille
-
78291002742 RH Rear Side GrilleRH Rear Side Grille
-
81291003081 Body DeflectorBody Deflector
-
82291002744 Bumber CapBumber Cap
-
83291002754 Button CapButton Cap
-
85291002775 LH Rear CarpetLH Rear Carpet
-
86291002776 RH Rear CarpetRH Rear Carpet
-
87291002778 Module StifnerModule Stifner
-
88291002784 Seat StudSeat Stud
-
90291002818 Deck NoseDeck Nose
-
94291002837 LH Front Scraper JointLH Front Scraper Joint
-
94291002838 RH Front Scraper JointRH Front Scraper Joint
-
96291002839 Midle Sraper JointMidle Sraper Joint
-
100291002865 Seat PivotSeat Pivot
-
101291003416 Upper ReinforcementUpper Reinforcement
-
106291003306 Central ReinforcementCentral Reinforcement
-
108291003680 Front ModuleFront Module
-
109291003462 Upper Body Ass'yUpper Body Ass'y
-
111293000014 Snap Cap, BlackSnap Cap, Black
-
113293150186 Pop Rivet 3/16Pop Rivet 3/16
-
114293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
116293150186 Pop Rivet 3/16Pop Rivet 3/16
-
117293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
118293250185 Lip SealLip Seal
-
119293250200 Neoprene SealNeoprene Seal
-
120293250205 Lip SealLip Seal
-
121293250209 Lip SealLip Seal
-
122293250231 GasketGasket
-
124293730006 Dart, BlackDart, Black
-
125293730010 Dart, BlackDart, Black
-
126293750025 Tie-Rap MountTie-Rap Mount
-
127293830005 Rubber PlugRubber Plug
-
128293250087 Gasket, NeopreneGasket, Neoprene
-
130271000110 Protection TrimProtection Trim
-
131572051500 CapCap
-
131293000112 CapCap
