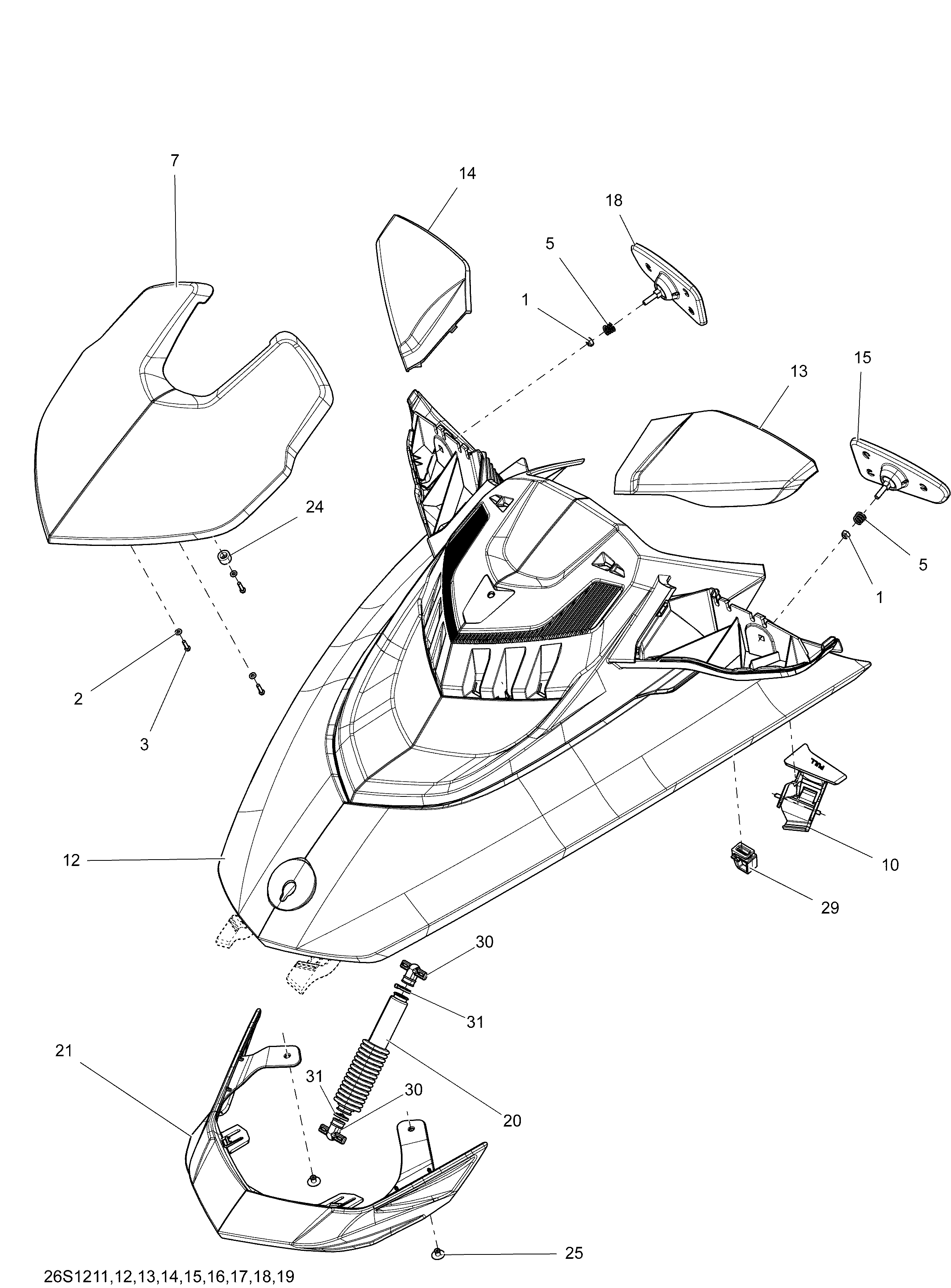

09- Front Cover для BRP GTX S 155 - 2012
-
№АртикулНазвание
-
1232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
3241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
5269500453 Mirror SpringMirror Spring
-
7269501663 Front Upper Deflector, Black. GTX SFront Upper Deflector, Black. GTX S
-
10269501697 LH LatchLH Latch
-
10269501702 RH LatchRH Latch
-
12269501883 Hood Ass'y, STD White. GTX SHood Ass'y, STD White. GTX S
-
13269501891 LH Mirror Housing, Gold. GTX SLH Mirror Housing, Gold. GTX S
-
14269501889 RH Mirror Housing, Gold. GTX SRH Mirror Housing, Gold. GTX S
-
15269501918 LH Mirror Ass'yLH Mirror Ass'y
-
18269501920 RH Mirror Ass'yRH Mirror Ass'y
-
20269501664 Shock Absorber. Includes 30 and 31Shock Absorber. Includes 30 and 31
-
24291001203 SpacerSpacer
-
29293830135 Rubber BumperRubber Bumper
-
30269501717 Shock End PieceShock End Piece
-
31293750001 Tie-Rap 94 mmTie-Rap 94 mm
