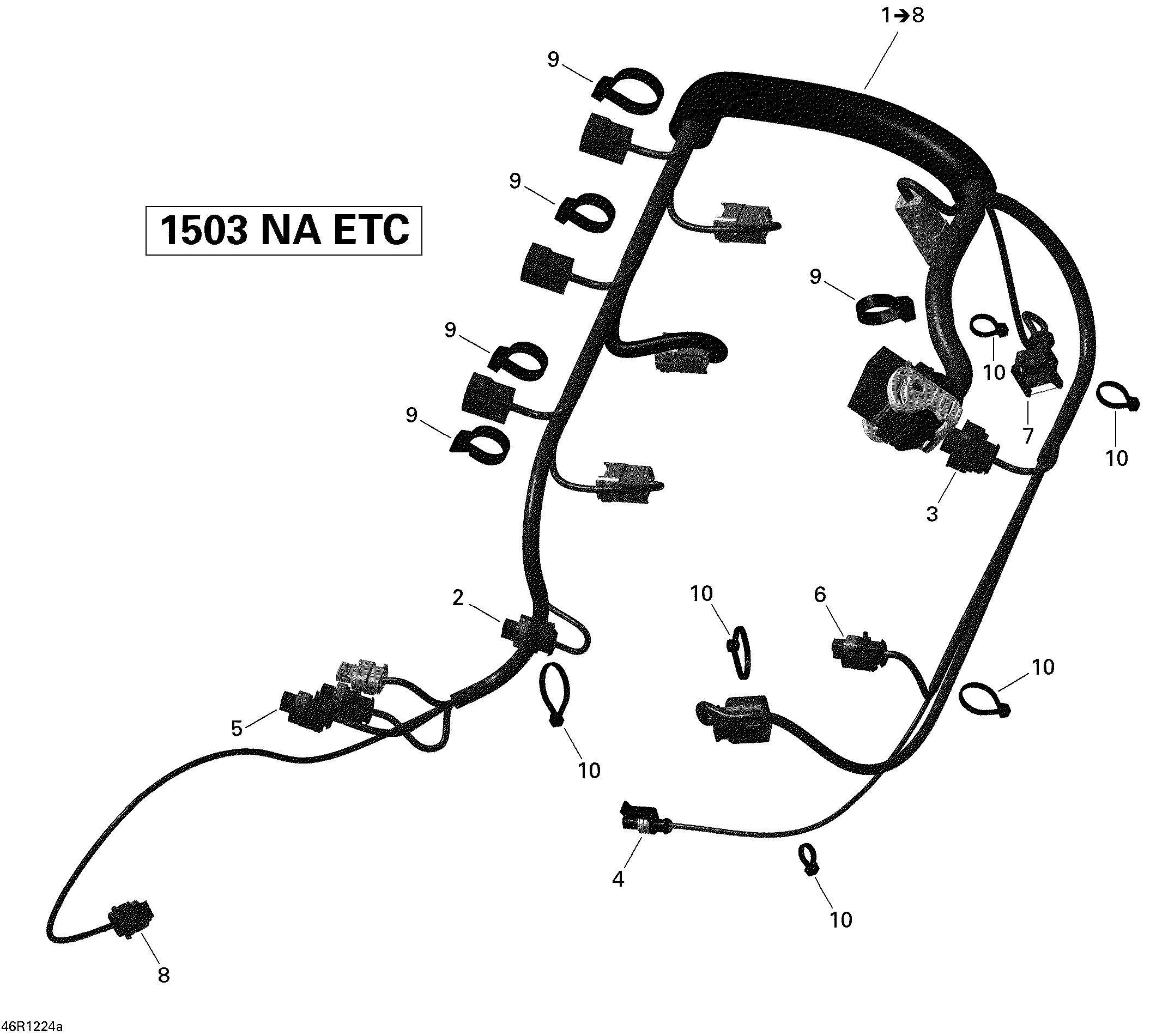

10- Engine Harness 1_GTX S 155 для BRP GTX S 155 - 2012
-
№АртикулНазвание
-
1420665204 Engine Wiring Harness Ass'y. Includes 1 to 8Engine Wiring Harness Ass'y. Includes 1 to 8
-
2278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
3278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
4278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
5278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
6278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
7415128566 Male Housing, 2 Circuits, AmpMale Housing, 2 Circuits, Amp
-
8278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
9420866716 Tie-RapTie-Rap
-
10420866714 Tie RapTie Rap
