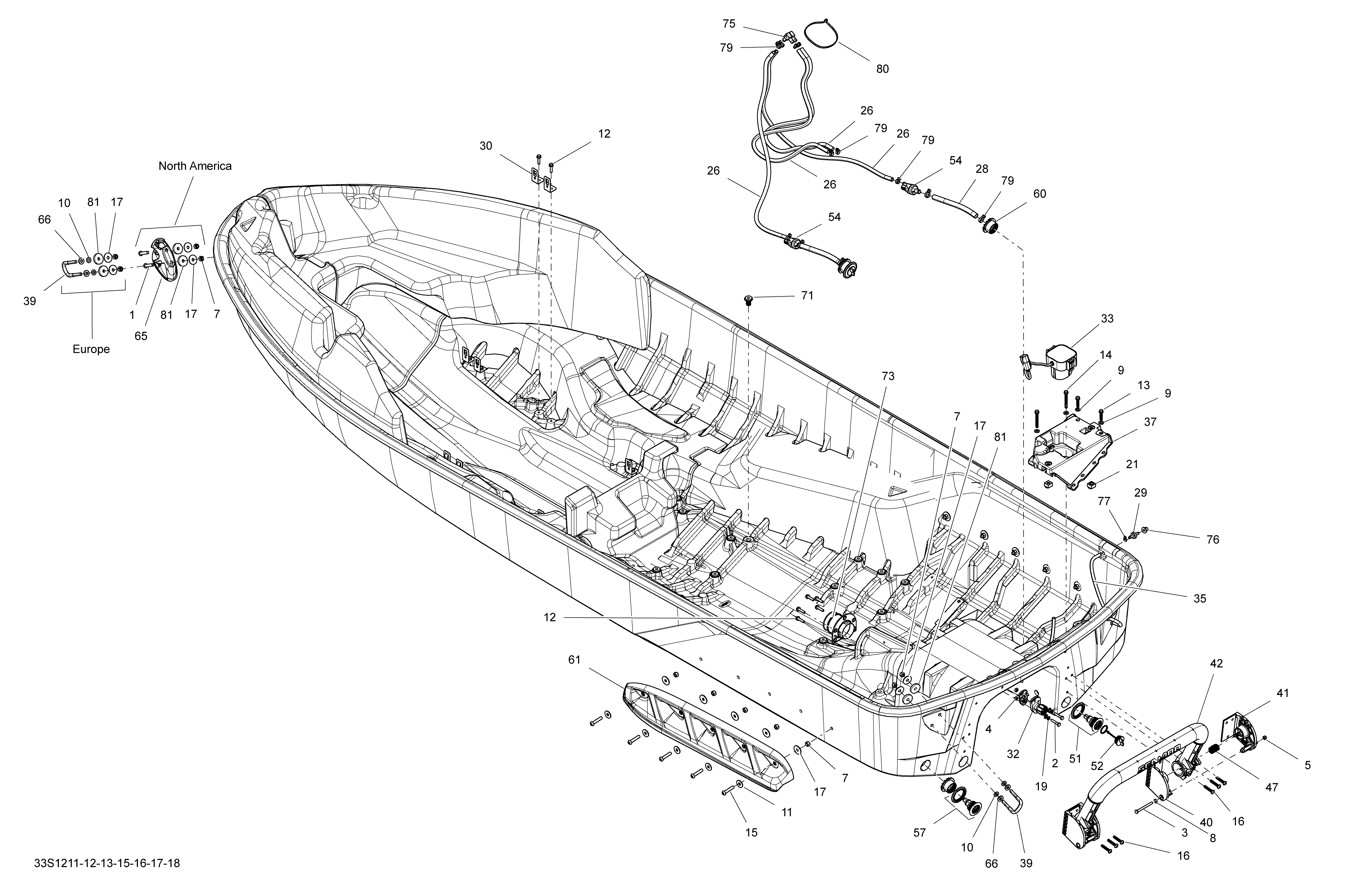

09- Hull для BRP GTX S 155 - 2012
-
№АртикулНазвание
-
1205483560 Socket Screw, M8 X 35Socket Screw, M8 X 35
-
2207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
3207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
7232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234080600 Flat Washer 8 mmFlat Washer 8 mm
-
10234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
11234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
13243163060 Flanged Hex. Screw M6.81 X 30Flanged Hex. Screw M6.81 X 30
-
14243165560 Flanged Hex. Screw M6.81 X 55Flanged Hex. Screw M6.81 X 55
-
15250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
16250000468 Torx ScrewTorx Screw
-
17250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19250200114 Sealing WasherSealing Washer
-
21269501387 Nut Housing Ass'yNut Housing Ass'y
-
26415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
28275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
29275500499 Check ValveCheck Valve
-
30275500743 Strap Clip 90°Strap Clip 90°
-
32277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
35275500446 Hose 6 mmHose 6 mm
-
37278002343 Battery Base Ass'yBattery Base Ass'y
-
39292000933 U-ClampU-Clamp
-
40292001509 A Section SupportA Section Support
-
41292001510 B Section SupportB Section Support
-
42292001204 Overmolded BarOvermolded Bar
-
47292001259 SpringSpring
-
51292001315 Drain Neck Ass'yDrain Neck Ass'y
-
52292001352 Plug Drain Ass'yPlug Drain Ass'y
-
54292001310 Bailer Ass'yBailer Ass'y
-
57292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
60292001371 BushingBushing
-
61292001514 RH SponsonRH Sponson
-
61292001513 LH SponsonLH Sponson
-
65292001489 Cup Ass'y. North AmericaCup Ass'y. North America
-
66293050001 Flat WasherFlat Washer
-
71293450290 Insert Capuchon M8Insert Capuchon M8
-
73293450306 Hull InsertHull Insert
-
75293710117 Elbow Fitting 90°Elbow Fitting 90°
-
76293720029 GrommetGrommet
-
77293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
79293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
80293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
81293830037 Rubber WasherRubber Washer
