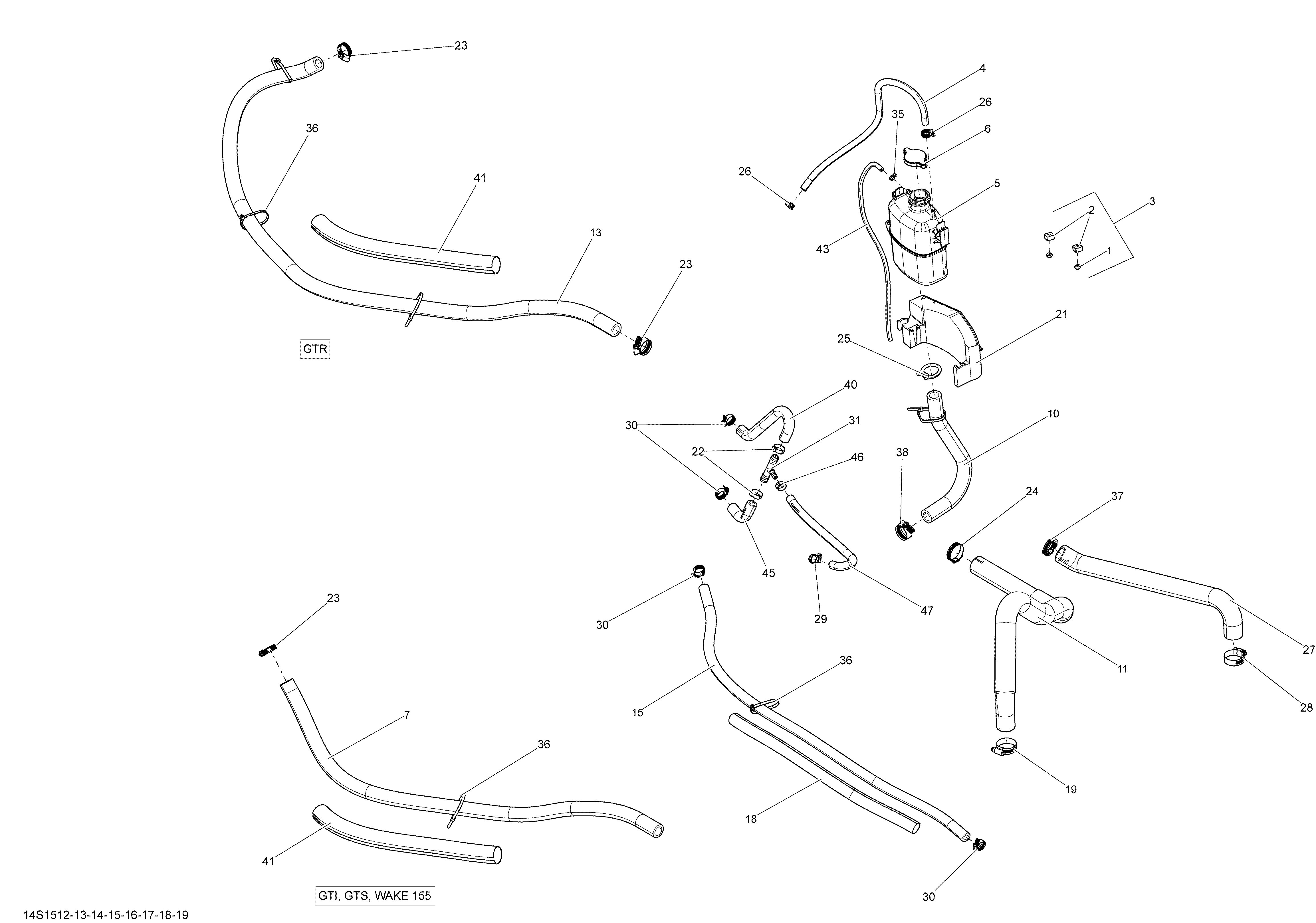

01- Cooling System _14S1514 для BRP GTI SE 130 - 2015
-
№АртикулНазвание
-
1232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
3269501166 Nut Housing Ass'yNut Housing Ass'y
-
4204300184 Hose 1/4''Hose 1/4''
-
5276000086 Coolant TankCoolant Tank
-
6276000100 Pressure CapPressure Cap
-
7276000158 Hose 19 mmHose 19 mm
-
10276000099 Hose 19 mmHose 19 mm
-
11276000249 LH Radiator HoseLH Radiator Hose
-
15276000151 Hose 12.5 mmHose 12.5 mm
-
18515175319 Tubing 22 mmTubing 22 mm
-
19293650185 Tridon Gear ClampTridon Gear Clamp
-
21291003082 Support Ass'ySupport Ass'y
-
22293650012 Oetiker ClampOetiker Clamp
-
23293650051 Tridon Gear ClampTridon Gear Clamp
-
24293650185 Tridon Gear ClampTridon Gear Clamp
-
25293650115 Spring ClampSpring Clamp
-
26293650170 Tridon Gear ClampTridon Gear Clamp
-
27276000248 RH Radiator HoseRH Radiator Hose
-
28293650185 Tridon Gear ClampTridon Gear Clamp
-
29293650171 Tridon Gear ClampTridon Gear Clamp
-
30293650172 Tridon Gear ClampTridon Gear Clamp
-
31293710116 T-FittingT-Fitting
-
35293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
36293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
37293650185 Tridon Gear ClampTridon Gear Clamp
-
38293650019 Tridon Gear ClampTridon Gear Clamp
-
40276000244 Formed HoseFormed Hose
-
41409902200 Tubing 25 mmTubing 25 mm
-
43415080200 Hose, PolyurethaneHose, Polyurethane
-
45276000245 Lower Formed HoseLower Formed Hose
-
46293650030 Oetiker ClampOetiker Clamp
-
47276000246 Formed HoseFormed Hose
