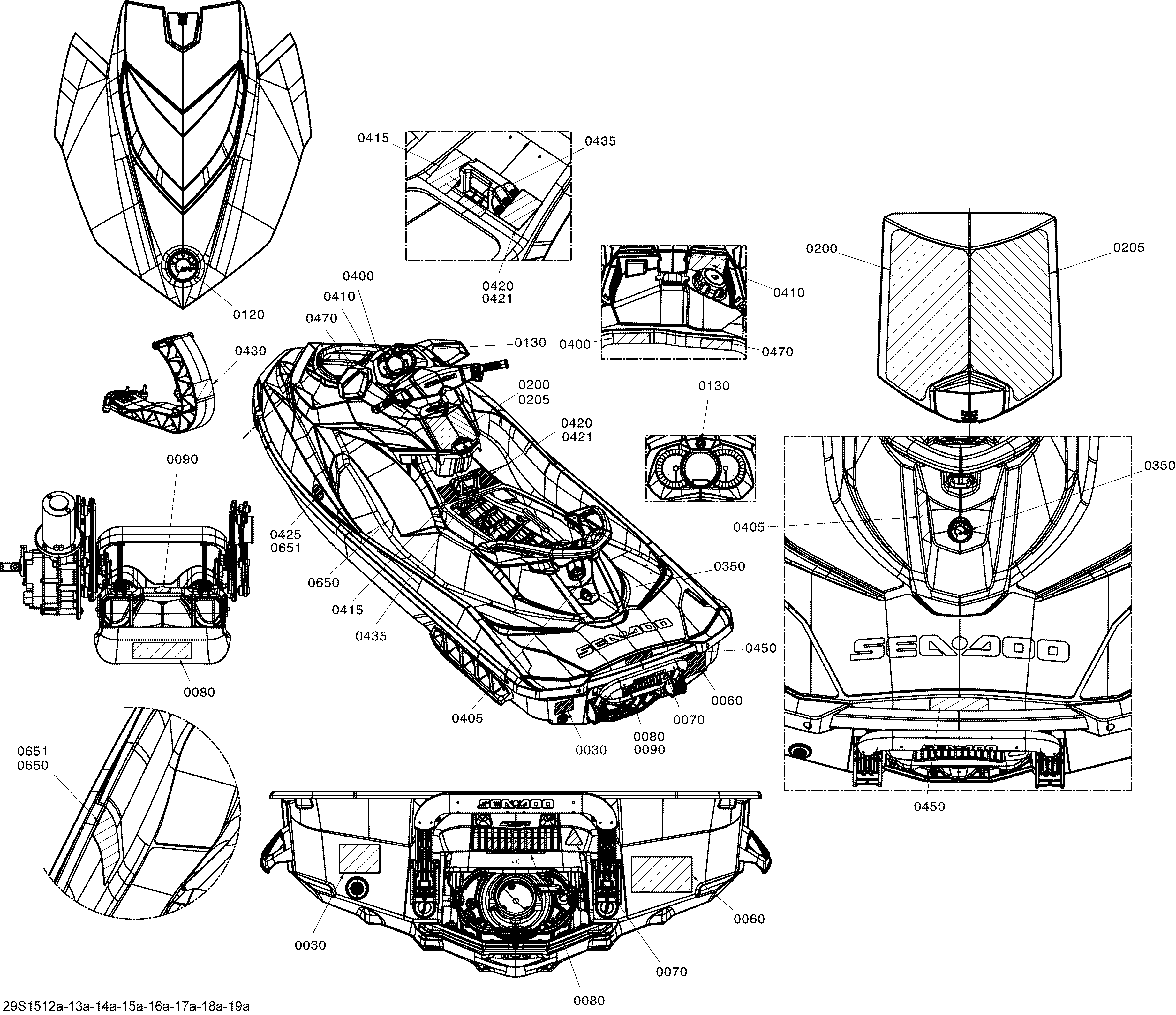

09- Decals _29S1514a для BRP GTI SE 130 - 2015
-
№АртикулНазвание
-
0030219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
0070219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
0080219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
0090219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
0120704904613 BRP Logo, 68 mmBRP Logo, 68 mm
-
0130704904616 BRP Logo, 20mmBRP Logo, 20mm
-
0200219904484 Warning LabelWarning Label
-
0205219903448 RH Warning Decal, SecurityRH Warning Decal, Security
-
0350704904612 BRP Logo, 48 mmBRP Logo, 48 mm
-
0400219903082 Warning Decal, BatteryWarning Decal, Battery
-
0405219903510 Decal, Exemption. Assembled In CanadaDecal, Exemption. Assembled In Canada
-
0405219904272 Decal, Exemption. Assembled In MexicoDecal, Exemption. Assembled In Mexico
-
0410219903501 Warning Decal, FuelWarning Decal, Fuel
-
0415219903184 Caution Engine OilCaution Engine Oil
-
0425219902679 Decal, Emission ControlDecal, Emission Control
-
0430219903502 Warning Decal, StorageWarning Decal, Storage
-
0435219903132 Caution Decal, SecurityCaution Decal, Security
-
0450219904254 Decal Warning, Re-boardDecal Warning, Re-board
