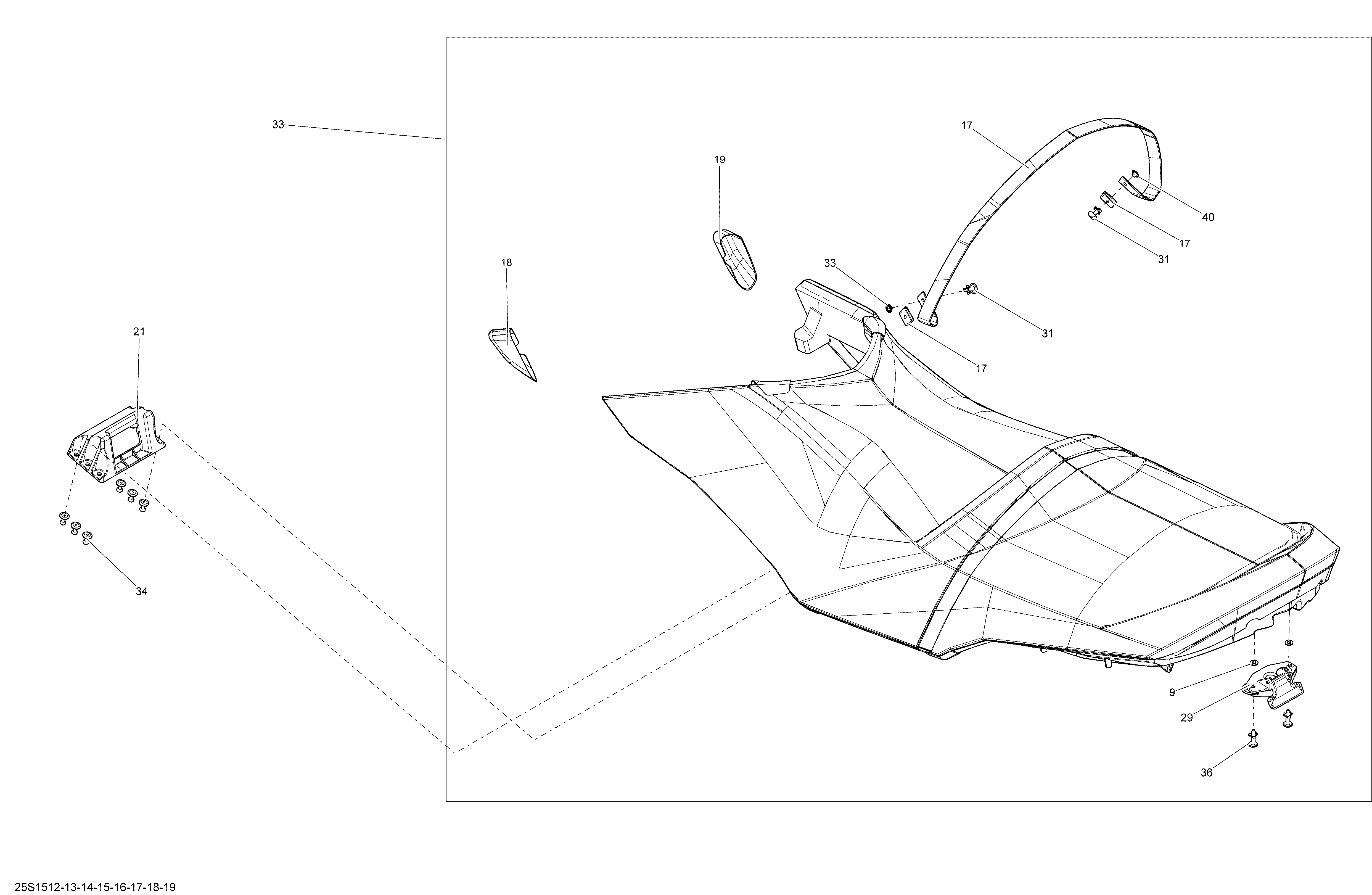

09- Seat _25S1514 для BRP GTI SE 130 - 2015
-
№АртикулНазвание
-
9234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
17269002907 Seat Strap. Blue-ModelsSeat Strap. Blue-Models
-
17269002861 Seat Strap. Green-ModelsSeat Strap. Green-Models
-
18269002844 LH Seat Protector. Blue-ModelsLH Seat Protector. Blue-Models
-
18269002851 LH Seat Protector. Green-ModelsLH Seat Protector. Green-Models
-
19269002845 RH Seat Protector. Blue-ModelsRH Seat Protector. Blue-Models
-
19269002852 RH Seat Protector. Green-ModelsRH Seat Protector. Green-Models
-
21269002151 Seat ReceptacleSeat Receptacle
-
29269700109 Latch Ass'yLatch Ass'y
-
31293150067 RivetRivet
-
33269002829 Seat Ass'y. Blue-ModelsSeat Ass'y. Blue-Models
-
33269002830 Seat Ass'y. Green-ModelsSeat Ass'y. Green-Models
-
33269002915 Seat Ass'y. Black-Orange ModelSeat Ass'y. Black-Orange Model
-
34293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293150151 Rivet 1/4''Rivet 1/4''
-
40293720067 GrommetGrommet
