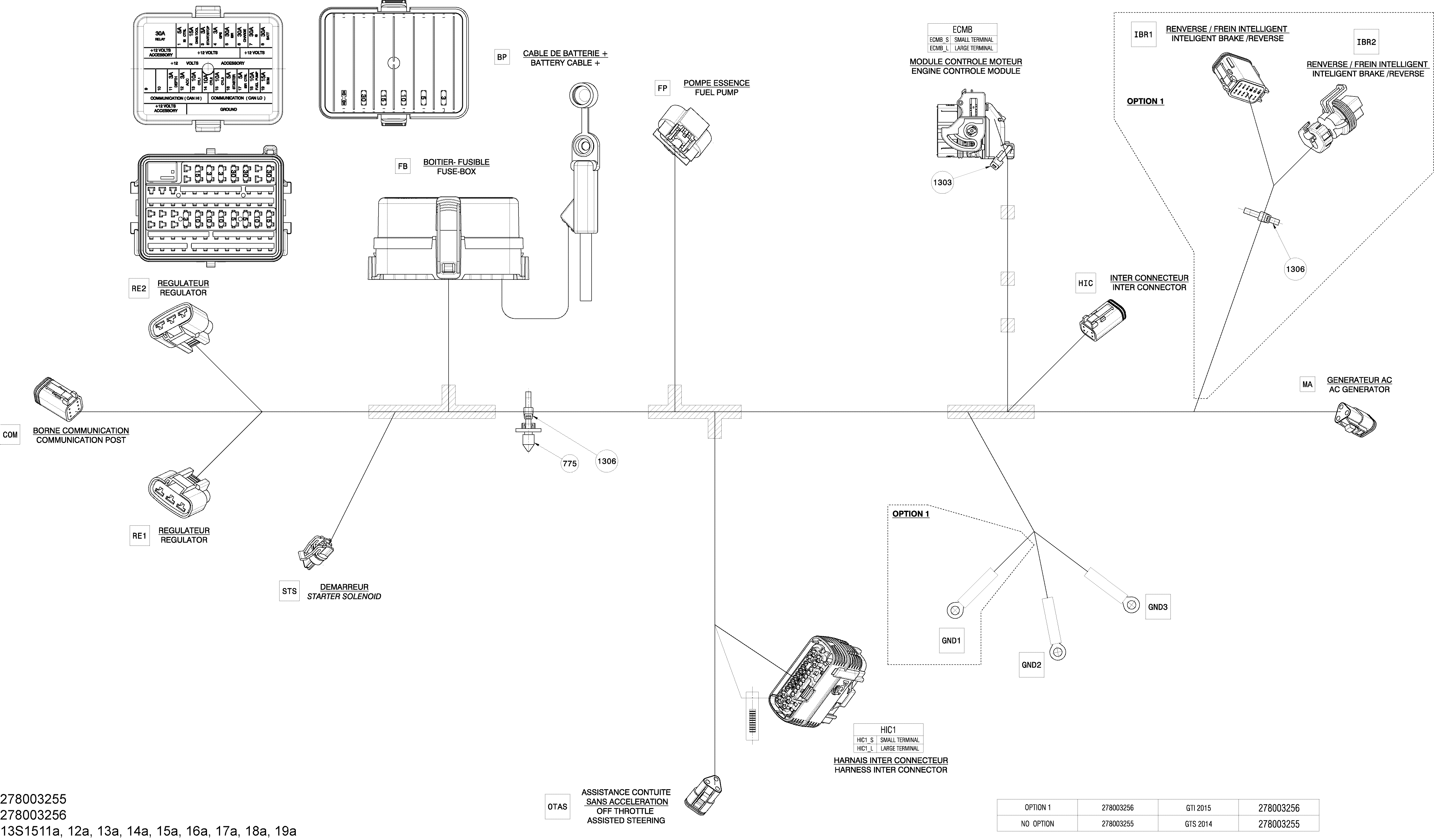

10- Electrical Harness _13S1514a для BRP GTI SE 130 - 2015
-
№АртикулНазвание
-
1278003256 Main Harness Ass'yMain Harness Ass'y
-
BP278002815 Battery CableBattery Cable
-
COM278000632 Female TerminalFemale Terminal
-
COM278001665 Female TerminalFemale Terminal
-
COM278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COVER710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
COVER710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
COVER710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
COVER710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
COVER710001008 Little Fuse, 3 AMPLittle Fuse, 3 AMP
-
ECMB_L710001590 Female TerminalFemale Terminal
-
ECMB_L710001593 PlugPlug
-
ECMB_L710001727 Female TerminalFemale Terminal
-
ECMB_S710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
ECMB_S710001589 Female TerminalFemale Terminal
-
ECMB_S710001591 CoverCover
-
ECMB_S710001592 PlugPlug
-
FB278000218 Wire SealWire Seal
-
FB278001065 Wire SealWire Seal
-
FB278002165 Bus BarBus Bar
-
FB278002182 Buss BarBuss Bar
-
FB278002348 Junction Bar, 8 PositionJunction Bar, 8 Position
-
FB278002578 TerminalTerminal
-
FB278002596 Junction Bar (4 Pins)Junction Bar (4 Pins)
-
FB278002822 Relay 30 Amp.Relay 30 Amp.
-
FB278002823 Fuse CoverFuse Cover
-
FB278002880 Seal PlugSeal Plug
-
FB278002946 Fuse Base Ass'yFuse Base Ass'y
-
FB710000048 Wire SealWire Seal
-
FB710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FB710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FB710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FB710000890 Female TerminalFemale Terminal
-
FB710000918 Female TerminalFemale Terminal
-
FB710001008 Little Fuse, 3 AMPLittle Fuse, 3 AMP
-
FB710001008 Little Fuse, 3 AMPLittle Fuse, 3 AMP
-
FB710001008 Little Fuse, 3 AMPLittle Fuse, 3 AMP
-
FP278002185 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
FP278002186 Wire SealWire Seal
-
FP278002187 Female TerminalFemale Terminal
-
GND2278001392 Open BarrelOpen Barrel
-
GND3278001392 Open BarrelOpen Barrel
-
HIC278000632 Female TerminalFemale Terminal
-
HIC515175672 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
HIC515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
HIC1_L278002455 Female TerminalFemale Terminal
-
HIC1_S278002451 HousingHousing
-
HIC1_S278002453 Female TerminalFemale Terminal
-
HIC1_S278002642 Female TerminalFemale Terminal
-
MA278001276 Female TerminalFemale Terminal
-
MA515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
MA515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
OTAS278001665 Female TerminalFemale Terminal
-
OTAS278002375 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
OTAS409207200 Female LockFemale Lock
-
RE1710000877 TerminalTerminal
-
RE1710000880 Housing, 3 CircuitsHousing, 3 Circuits
-
RE1710000881 SealSeal
-
RE2710000877 TerminalTerminal
-
RE2710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RE2710000881 SealSeal
-
RE2710000882 CapCap
-
STS515177192 Female HousingFemale Housing
-
STS710001163 Wire SealWire Seal
-
STS710001164 Female TerminalFemale Terminal
