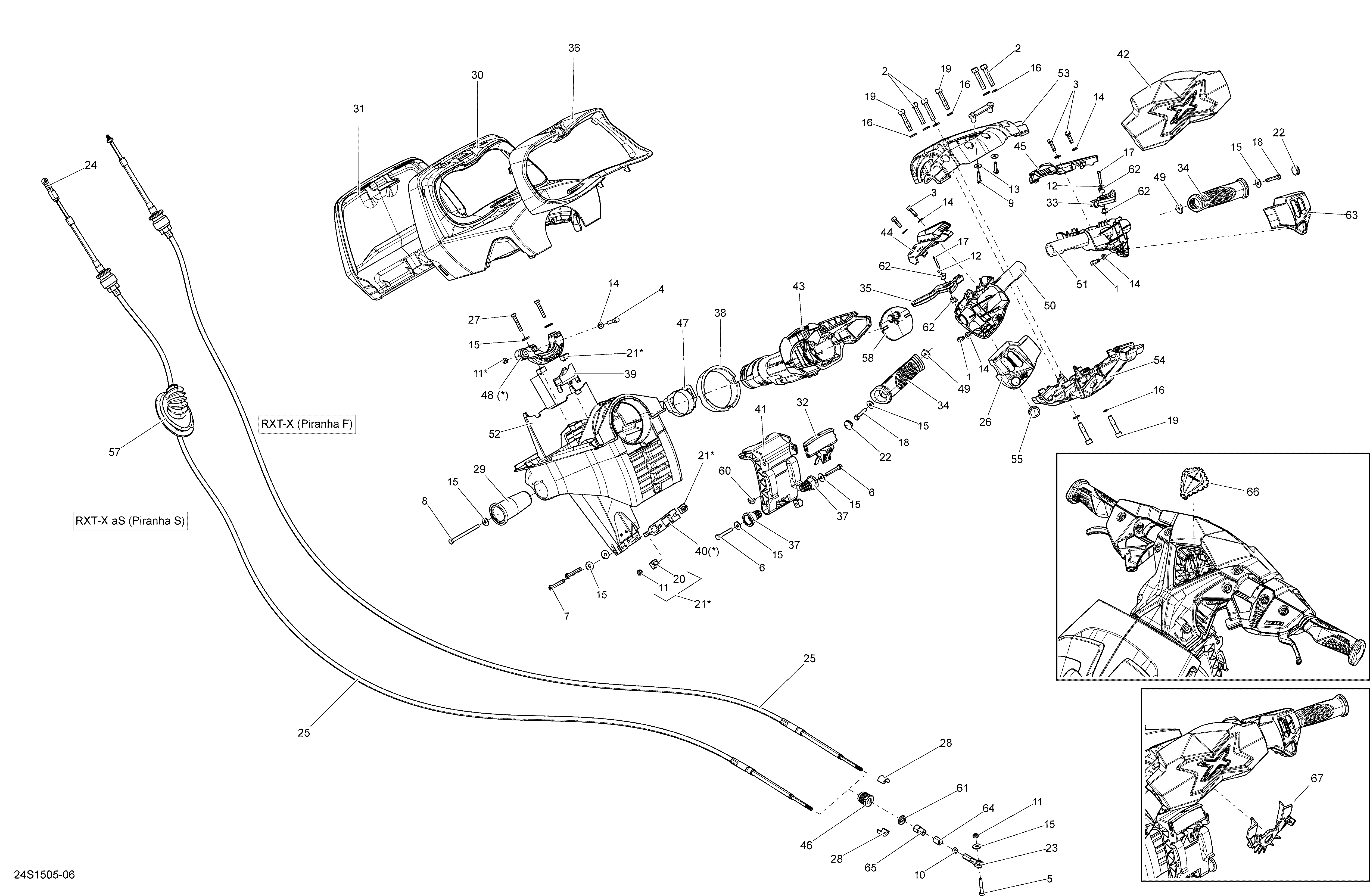

07- Steering 24S1506 для BRP RXT-X 260 & RS. 2015 - 2015
-
№АртикулНазвание
-
1205061660 Socket Screw M6 X 16Socket Screw M6 X 16
-
2205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
4207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
5207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
6207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
7207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
8207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
9211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
10211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
11232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
12234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
13234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
14234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
15234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
16234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
17241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
18250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
19250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
20269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
21269501166 Nut Housing Ass'yNut Housing Ass'y
-
22277000203 Cap, BlackCap, Black
-
23277000775 Ball JointBall Joint
-
24277001180 Ball JointBall Joint
-
25277001602 Steering CableSteering Cable
-
26277001794 LH Housing CoverLH Housing Cover
-
27207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
28277001527 Half RingHalf Ring
-
29277001605 Steering Support PivotSteering Support Pivot
-
30277001612 Gauge SupportGauge Support
-
31277001613 Gauge Support CoverGauge Support Cover
-
32277001616 LockLock
-
33277001944 Throttle HandleThrottle Handle
-
34277001624 Handle GripHandle Grip
-
35277001945 Reverse HandleReverse Handle
-
36277001630 Gauge Trim, BlackGauge Trim, Black
-
37277001652 PivotPivot
-
38277001653 Wear RingWear Ring
-
39277001654 SpacerSpacer
-
40277001655 Thrust Support Ass'yThrust Support Ass'y
-
41277001658 Handle Ass'yHandle Ass'y
-
42277001683 Handle PadHandle Pad
-
43277001807 Steering ColomnSteering Colomn
-
44277001686 LH Upper HousingLH Upper Housing
-
45277001688 RH Upper HousingRH Upper Housing
-
46277001729 Steering Cable LockSteering Cable Lock
-
47277001741 Wear RingWear Ring
-
48277001779 Support Ass'ySupport Ass'y
-
49277001863 Insert Grip HandleInsert Grip Handle
-
50277001950 LH Lower HousingLH Lower Housing
-
51277001951 RH Lower HousingRH Lower Housing
-
52277001942 Steering SupportSteering Support
-
53277001909 Front Extension BlocFront Extension Bloc
-
54277001926 Rear Extension BlockRear Extension Block
-
55277001887 Knob Switch, RedKnob Switch, Red
-
58293720086 GrommetGrommet
-
60293830005 Rubber BumperRubber Bumper
-
61293830063 Rubber WasherRubber Washer
-
62293900091 BushingBushing
-
63277001718 RH Housing CoverRH Housing Cover
-
64277001582 Small BootSmall Boot
-
65277001583 Large BootLarge Boot
-
66277001919 Aesthetic CapAesthetic Cap
-
67277001920 Radio Frequency Key SupportRadio Frequency Key Support
