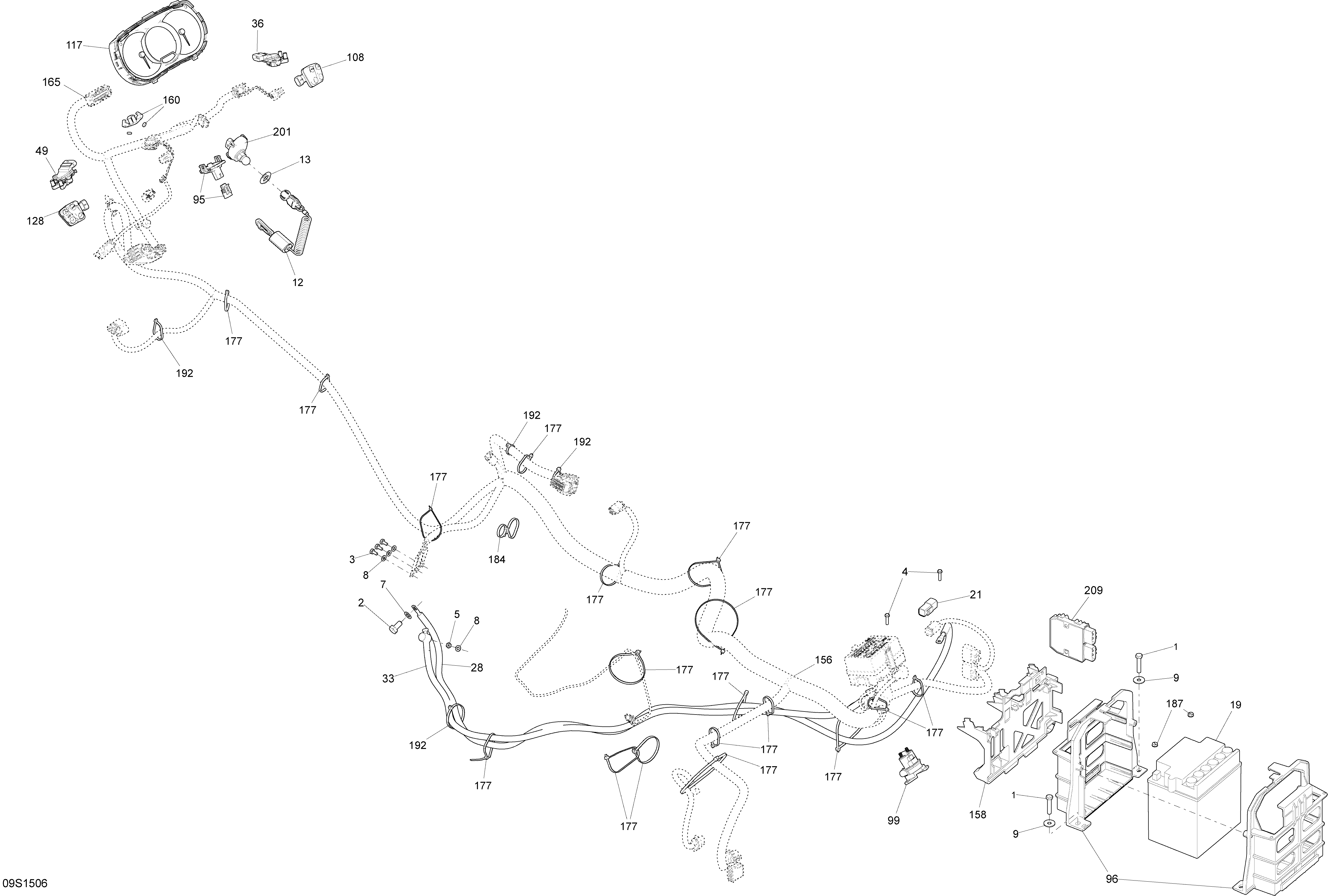

10- Electrical System _09S1506 для BRP RXT-X 260 & RS. 2015 - 2015
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
5232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12278003092 Anti-Theft Tether CordAnti-Theft Tether Cord
-
12278003093 Learning Tether CordLearning Tether Cord
-
13278002963 Safety NutSafety Nut
-
19278001882 Battery 30 AMPBattery 30 AMP
-
21278002704 Diagnostic ConnectorDiagnostic Connector
-
28278003269 Battery Ground CableBattery Ground Cable
-
33278003267 Starter HarnessStarter Harness
-
36278002283 RH Throttle SensorRH Throttle Sensor
-
49278002284 LH Throttle SensorLH Throttle Sensor
-
95278003009 O.T.A.S. Sensor Ass'yO.T.A.S. Sensor Ass'y
-
96278002339 Battery SupportBattery Support
-
99278003012 Starter RelayStarter Relay
-
108278002602 SwitchSwitch
-
117278003220 Central Information Cluster XCentral Information Cluster X
-
128278002767 SwitchSwitch
-
156278003253 Main Harness (Fixed)Main Harness (Fixed)
-
158278003048 SupportSupport
-
160278003053 O.T.A.S ActuatorO.T.A.S Actuator
-
165278003266 Steering Harness Ass'ySteering Harness Ass'y
-
177293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
184293750053 Tie Rap 300mmTie Rap 300mm
-
187250000282 Battery Bolt KitBattery Bolt Kit
-
192414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
201515177458 SwitchSwitch
-
209710001103 Voltage RegulatorVoltage Regulator
