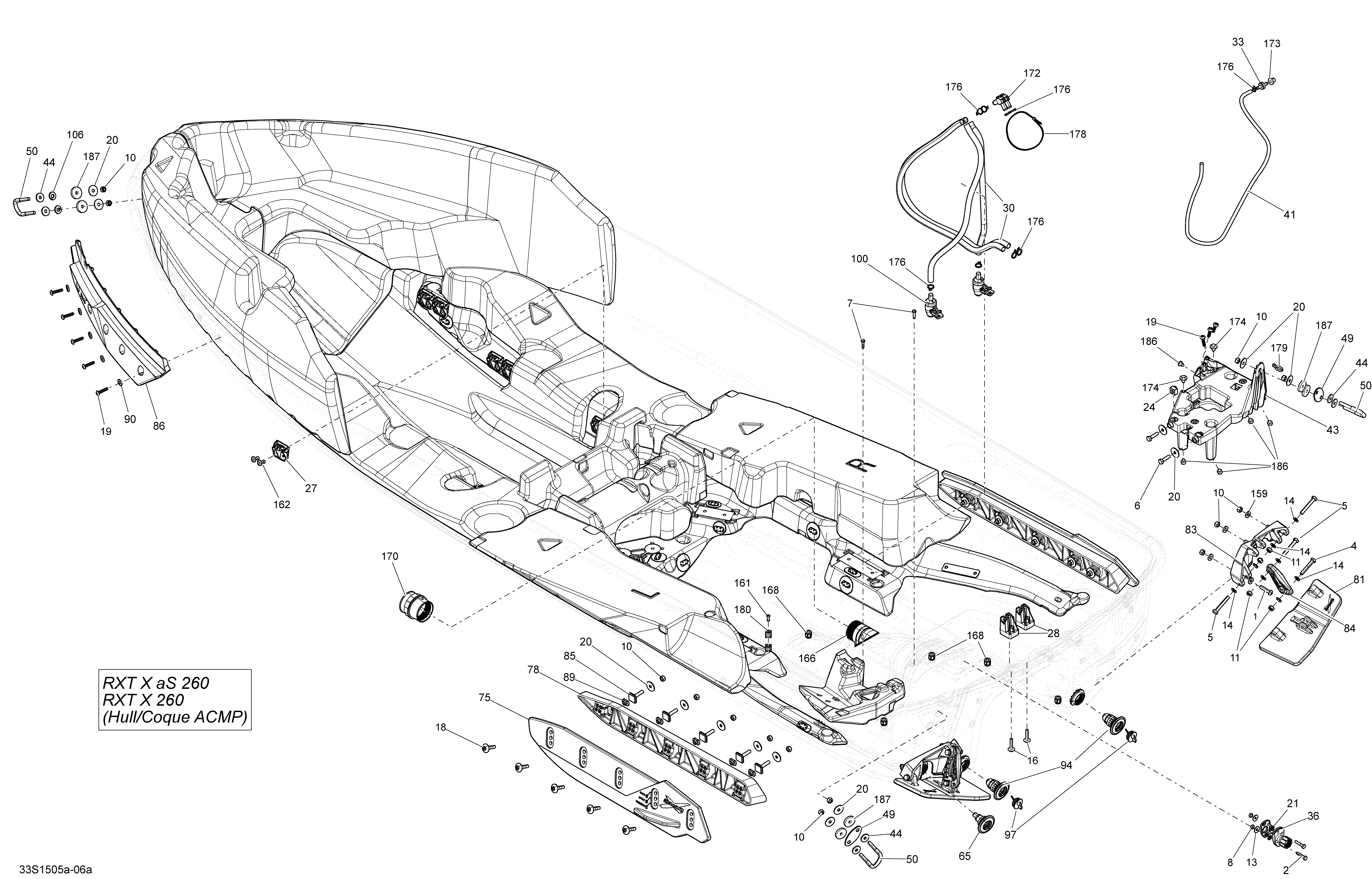

09- Hull ACMP_33S1506a для BRP RXT-X 260 & RS. 2015 - 2015
-
№АртикулНазвание
-
2207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
6207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
7211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
8232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
10232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
11232581600 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
13234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
16250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
18250000572 Torx-Head Screw M8 X 35Torx-Head Screw M8 X 35
-
19250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
20250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21250200114 Sealing WasherSealing Washer
-
24269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
27270000933 Strap RetainingStrap Retaining
-
28270000953 Strap RetainingStrap Retaining
-
30275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
33275500499 Check ValveCheck Valve
-
36277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
41275500446 Hose 6 mmHose 6 mm
-
43278003273 Battery Base Ass'yBattery Base Ass'y
-
44279000164 Flat WasherFlat Washer
-
49291001386 Finition Plate, BlackFinition Plate, Black
-
50292000933 U-ClampU-Clamp
-
65292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
65a292001825 Plastic NutPlastic Nut
-
75292001426 RH SponsonRH Sponson
-
75292001427 LH SponsonLH Sponson
-
78292001428 RH Stabilizer SpacerRH Stabilizer Spacer
-
78292001429 LH Stabilizer SpacerLH Stabilizer Spacer
-
85292001471 Square Head StudSquare Head Stud
-
89292001503 Push NutPush Nut
-
94292001580 Drain Ass'yDrain Ass'y
-
94a292001825 Plastic NutPlastic Nut
-
97292001583 Plug Ass'yPlug Ass'y
-
100292001636 Bailer Pick-up Ass'yBailer Pick-up Ass'y
-
106292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
161293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
162293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
166293450309 Outer Hull InsertOuter Hull Insert
-
170293450355 Hull InsertHull Insert
-
172293710152 Fitting Elbow 90°Fitting Elbow 90°
-
173293720029 GrommetGrommet
-
174293730040 Mount DartMount Dart
-
176293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
178293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
179414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
180293750026 Tie Rap MountTie Rap Mount
-
186293830005 Rubber BumperRubber Bumper
-
187293830037 Rubber WasherRubber Washer
