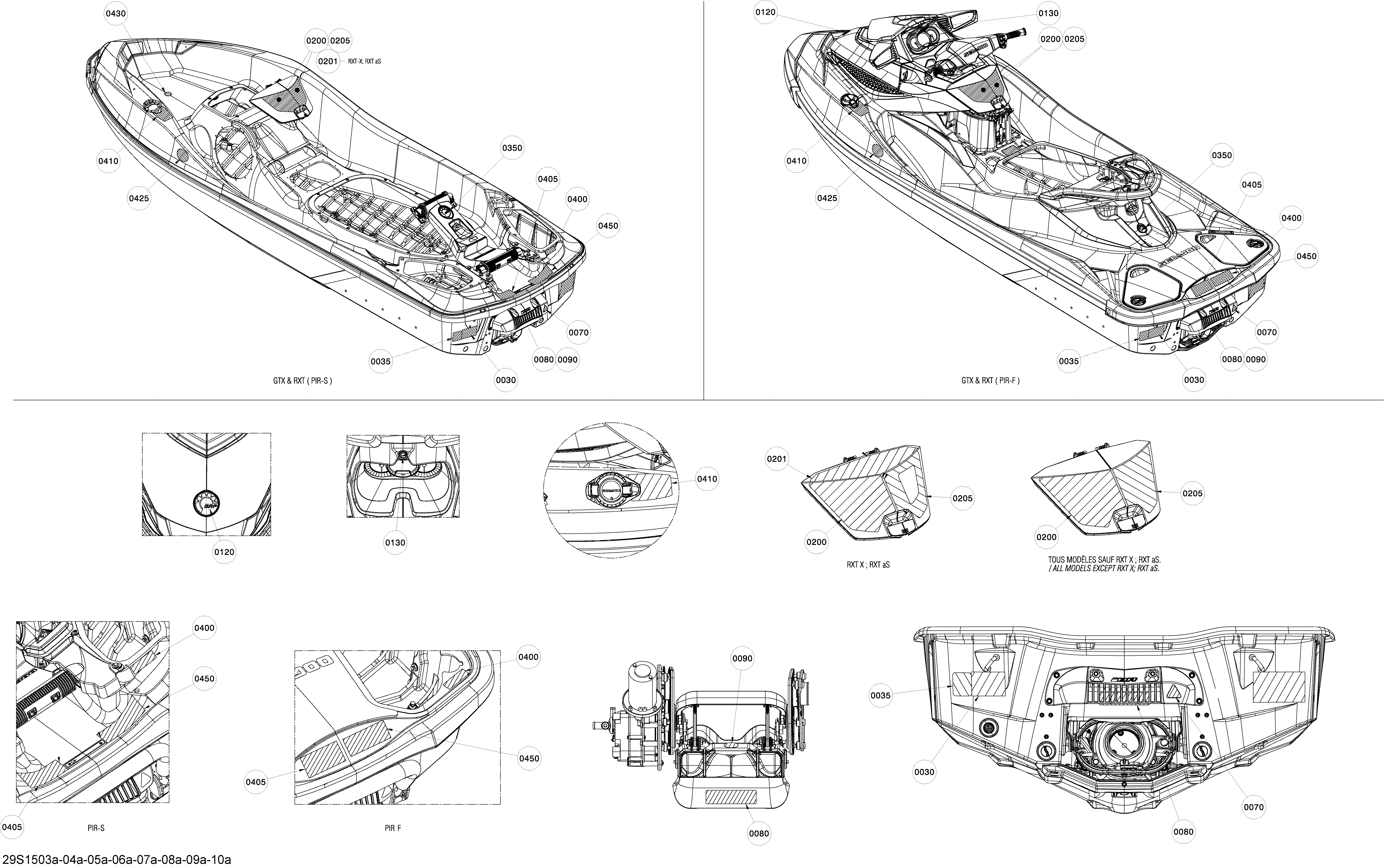

09- Decals _29S1506a для BRP RXT-X 260 & RS. 2015 - 2015
-
№АртикулНазвание
-
0030219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
0035219904387 Notice Decal, RinceNotice Decal, Rince
-
0070219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
0080219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
0090219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
0120704904613 BRP Logo, 68 mmBRP Logo, 68 mm
-
0130704904616 BRP Logo, 20mmBRP Logo, 20mm
-
0200219904548 LH Warning Decal, PrincipalLH Warning Decal, Principal
-
0201219904040 Warning Label Sport Model, EnglishWarning Label Sport Model, English
-
0205219904653 RH Sport Model Label, EnglishRH Sport Model Label, English
-
0350704904612 BRP Logo, 48 mmBRP Logo, 48 mm
-
0400219903082 Warning Decal, BatteryWarning Decal, Battery
-
0405219903510 Decal, ExemptionDecal, Exemption
-
0410219903495 Warning Decal, Gasoline/OctaneWarning Decal, Gasoline/Octane
-
0425219902679 Decal, Emission ControlDecal, Emission Control
-
0450219904252 Warning LabelWarning Label
Все узлы модели:
- 00- Model Numbers _00S1506
- 01- Cooling System _14S1506
- 01- Crankshaft, Pistons And Balance Shaft 1_02R1531
- 01- Cylinder Head _03R1531
- 01- Engine _07S1506
- 01- Engine Block 1_01R1531
- 01- Exhaust System _37S1506
- 02- Air Intake Manifold And Throttle Body 1_18R1531
- 02- Fuel System _17S1506
- 02- Oil Separator _15R1531
- 02- Supercharger _38R1531
- 03- PTO Cover And Magneto _04R1531
- 05- Propulsion _21S1506
- 05- Pump _35S1506
- 05- Reverse _31S1506
- 07- Steering 24S1506
- 09- Body _34S1506
- • 09- Decals _29S1506a
- 09- Decals _29S1506b
- 09- Front Cover _26S1506
- 09- Hull ACMP_33S1506a
- 09- Hull LFI_33S1506b
- 09- Seat _25S1506
- 09- Storage Compartments _44S1506
- 09- Ventilation _36S1506
- 10- Electrical Harness _13S1506a
- 10- Electrical Harness Steering_13S1506b
- 10- Electrical System _09S1506
- 10- Engine Harness _46R1531
