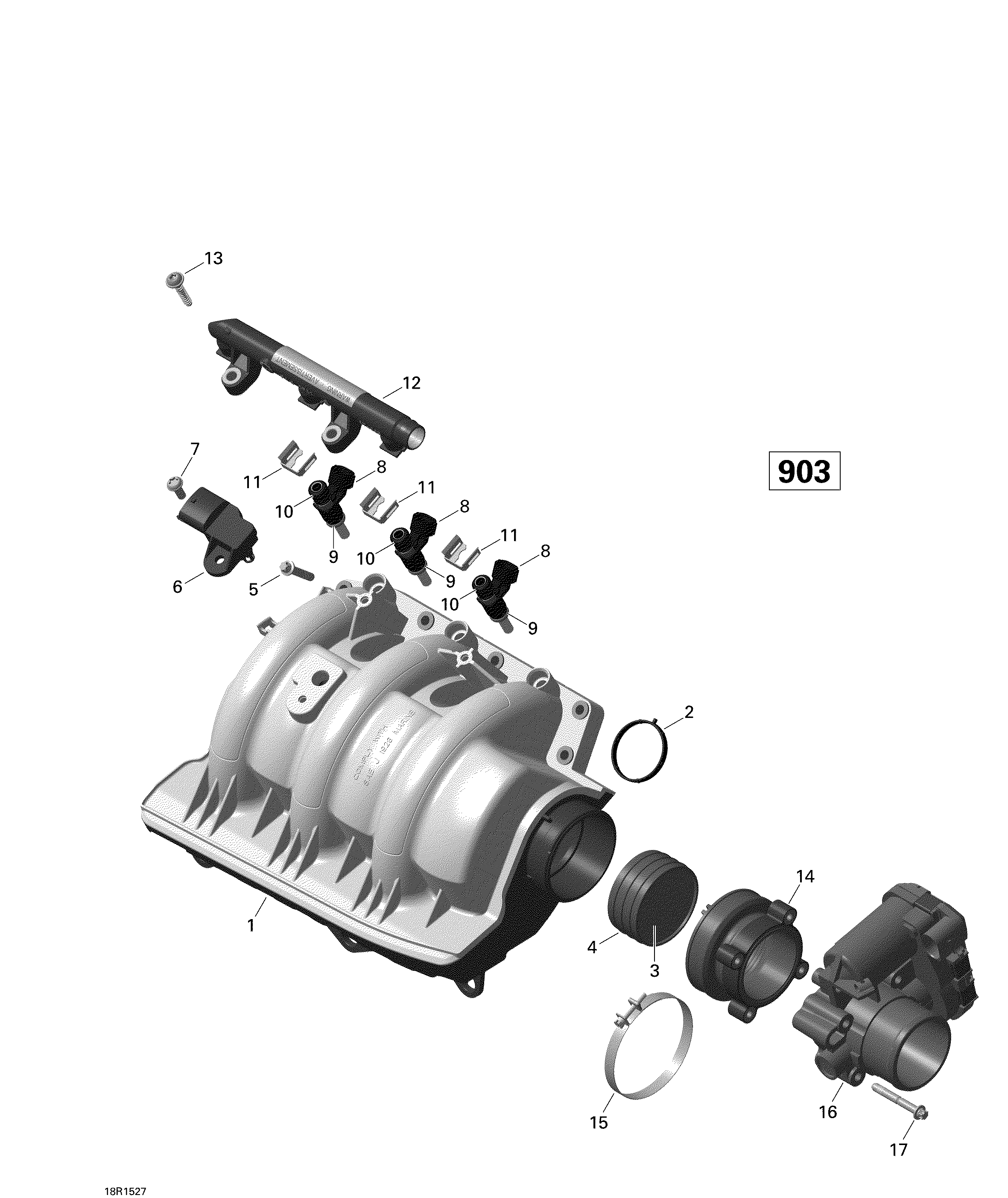

02- Air Intake Manifold And Throttle Body _18R1527 для BRP SPARK ACE 900 (2up) - 2015
-
№АртикулНазвание
-
1420867365 Air Intake Manifold Ass'y. Includes 1 to 4Air Intake Manifold Ass'y. Includes 1 to 4
-
2420431662 GasketGasket
-
3420667710 Flame ArrestorFlame Arrestor
-
4420201210 Profile RingProfile Ring
-
5420840663 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
6707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
7420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
8420874838 Injection Valve Ass'y. Includes 8 to 10Injection Valve Ass'y. Includes 8 to 10
-
9420431890 O-RingO-Ring
-
10420631220 O-RingO-Ring
-
11420853030 ClipClip
-
12420874965 Fuel RailFuel Rail
-
13420441573 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
14420867090 ConnectorConnector
-
15420251483 Hose ClampHose Clamp
-
16420893144 Throttle BodyThrottle Body
-
17420441588 Flanged Torx Screw M6 X 50Flanged Torx Screw M6 X 50
