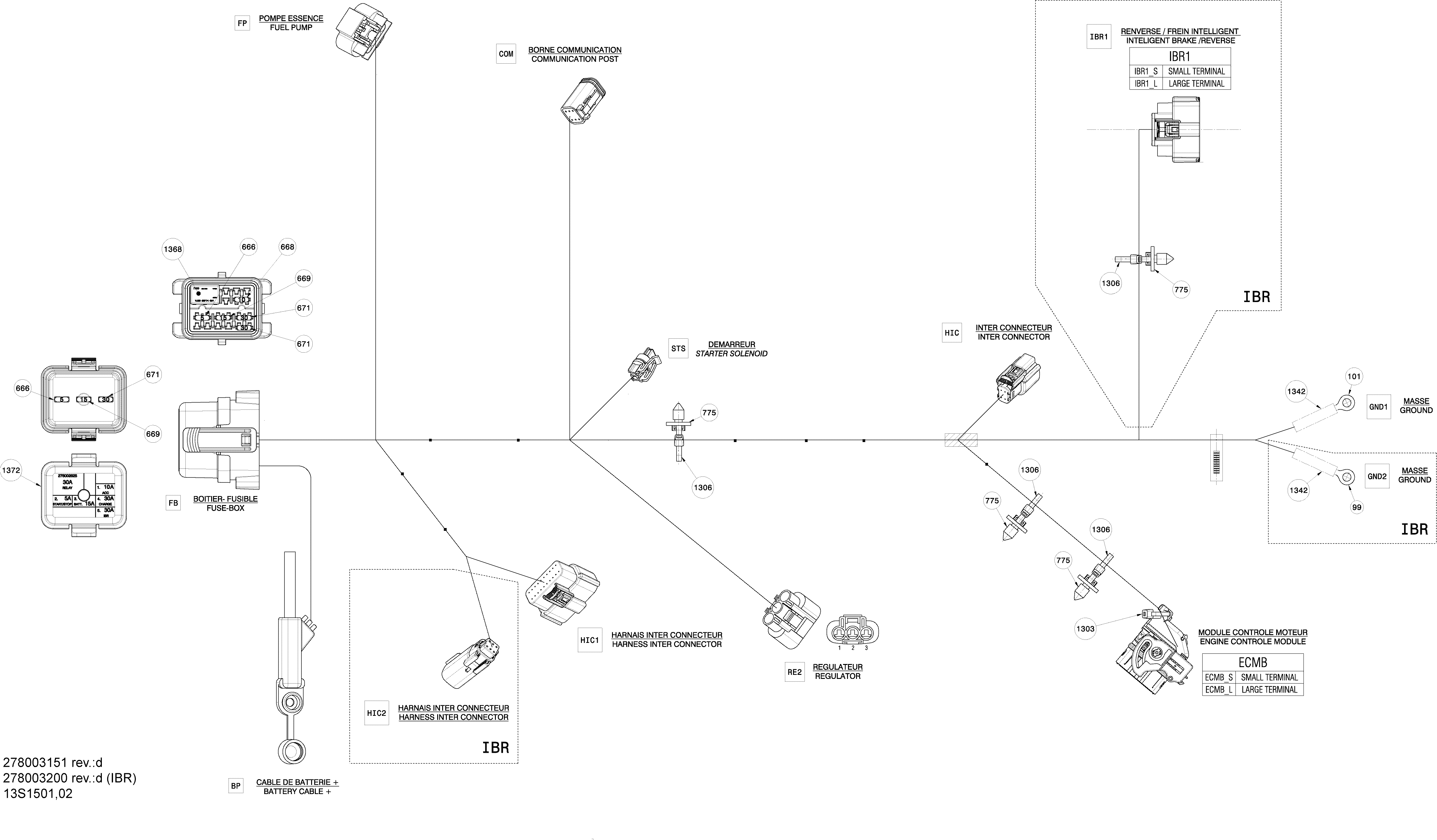

10- Electrical Harness Main_13S1501 для BRP SPARK ACE 900 (2up) - 2015
-
№АртикулНазвание
-
1278003151 Main Harness Ass'yMain Harness Ass'y
-
775293730040 Mount DartMount Dart
-
BP278002765 Battery CableBattery Cable
-
COM278001665 Female TerminalFemale Terminal
-
COM278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COVER710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
COVER710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
COVER710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
ECMB_L710001590 Female TerminalFemale Terminal
-
ECMB_L710001593 PlugPlug
-
ECMB_L710001727 Female TerminalFemale Terminal
-
ECMB_S710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
ECMB_S710001589 Female TerminalFemale Terminal
-
ECMB_S710001591 CoverCover
-
ECMB_S710001592 PlugPlug
-
FB278000218 Wire SealWire Seal
-
FB278001065 Wire SealWire Seal
-
FB278002578 TerminalTerminal
-
FB278002822 Relay 30 Amp.Relay 30 Amp.
-
FB278002824 Case Ass'yCase Ass'y
-
FB278002825 Fuse CoverFuse Cover
-
FB278002880 Seal PlugSeal Plug
-
FB710000048 Wire SealWire Seal
-
FB710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FB710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FB710000890 Female TerminalFemale Terminal
-
FB710000918 Female TerminalFemale Terminal
-
FP278002185 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
FP278002186 Wire SealWire Seal
-
FP278002187 Female TerminalFemale Terminal
-
GND1278001392 Open BarrelOpen Barrel
-
HIC278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
HIC278002453 Female TerminalFemale Terminal
-
HIC278002854 Housing, 4 CircuitsHousing, 4 Circuits
-
HIC1278002453 Female TerminalFemale Terminal
-
HIC1278002457 Seal PlugSeal Plug
-
HIC1278002858 Housing, 20 CircuitsHousing, 20 Circuits
-
RE2710000877 TerminalTerminal
-
RE2710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RE2710000881 SealSeal
-
RE2710000882 CapCap
-
STS515177192 Female HousingFemale Housing
-
STS710001163 Wire SealWire Seal
-
STS710001164 Female TerminalFemale Terminal
