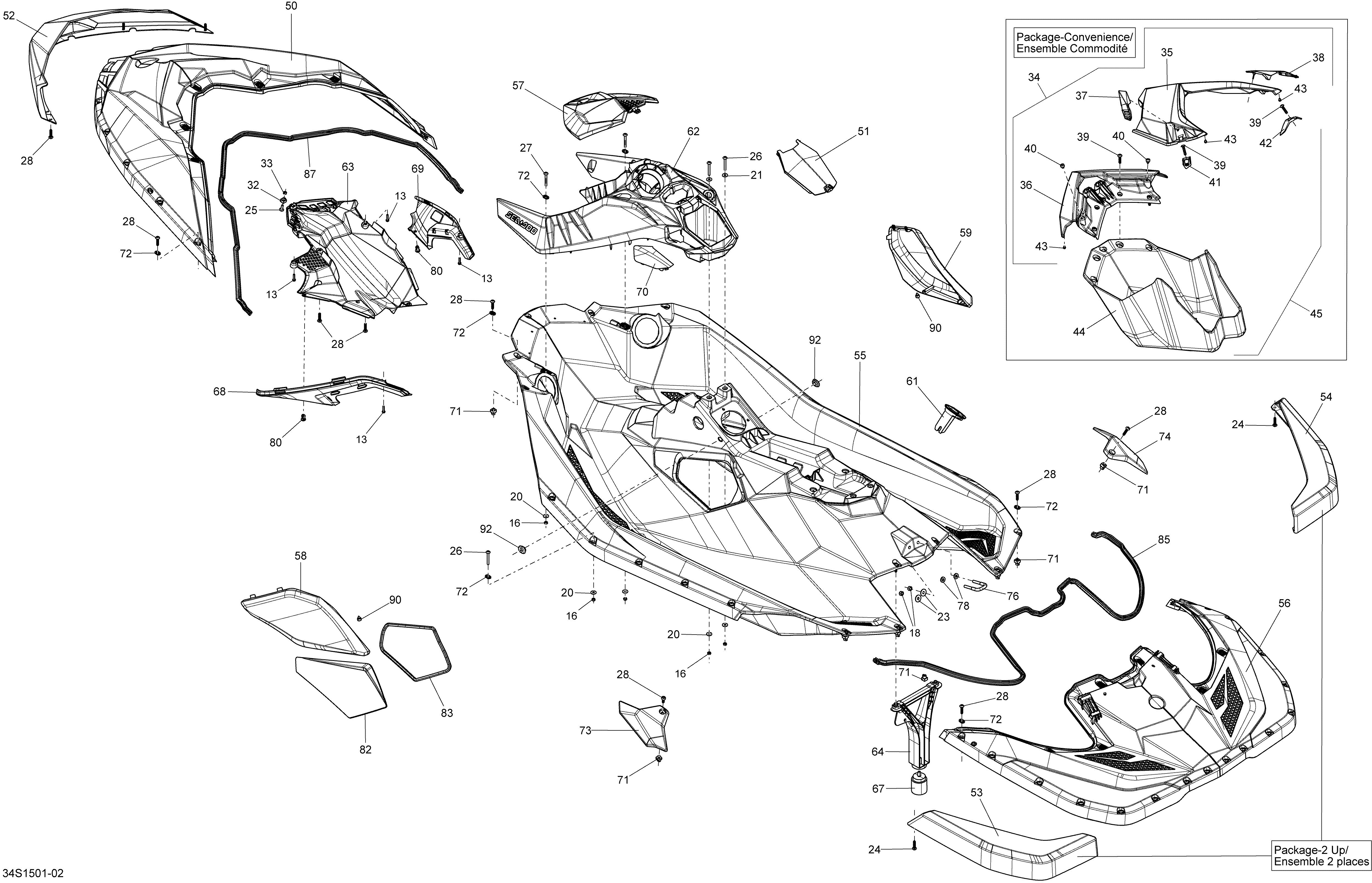

09- Body _34S1501 для BRP SPARK ACE 900 (2up) - 2015
-
№АртикулНазвание
-
13211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
16232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
18232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
20234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
21250200150 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
24250000709 Torx Screw M6.81 X 30. Package-2 upTorx Screw M6.81 X 30. Package-2 up
-
25250000711 Torx Screw M6 X 20Torx Screw M6 X 20
-
26250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
27250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
28250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
32269501166 Nut Housing Ass'y. Includes 33Nut Housing Ass'y. Includes 33
-
33232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
34295100553 Front Deflector Kit. Package-Convenience, Includes 35 to 43Front Deflector Kit. Package-Convenience, Includes 35 to 43
-
37269800472 LH Retaining Strap. Package-ConvenienceLH Retaining Strap. Package-Convenience
-
38269800498 RH Retaining Strap. Package-ConvenienceRH Retaining Strap. Package-Convenience
-
39250000709 Torx Screw M6.81 X 30. Package-ConvenienceTorx Screw M6.81 X 30. Package-Convenience
-
40293830005 Rubber Bumper. Package-ConvenienceRubber Bumper. Package-Convenience
-
41269800541 LH Hook. Package-ConvenienceLH Hook. Package-Convenience
-
42269800542 RH Hook. Package-ConvenienceRH Hook. Package-Convenience
-
43269800662 Rubber Bumper. Package-ConvenienceRubber Bumper. Package-Convenience
-
45295100504 Storage Bin Kit. Package-Convenience, Includes 35 to 44Storage Bin Kit. Package-Convenience, Includes 35 to 44
-
50291003377 Grey Front Deck. Model-Gray-WhiteGrey Front Deck. Model-Gray-White
-
50291003819 Yellow Front Deck. Model-Yellow-WhiteYellow Front Deck. Model-Yellow-White
-
50291003820 White Front Deck. Model-White-WhiteWhite Front Deck. Model-White-White
-
50291003821 Magenta Front Deck. Model-Magenta-WhiteMagenta Front Deck. Model-Magenta-White
-
50291003822 Orange Front Deck. Model-Orange-WhiteOrange Front Deck. Model-Orange-White
-
51291003378 Glove Box CoverGlove Box Cover
-
52291003379 Front BumperFront Bumper
-
53291003380 LH Rear Bumper. Package-2 upLH Rear Bumper. Package-2 up
-
54291003381 RH Rear Bumper. Package-2 upRH Rear Bumper. Package-2 up
-
55291003382 Center BodyCenter Body
-
56291003383 Grey Rear Deck. Model-Gray-WhiteGrey Rear Deck. Model-Gray-White
-
56291003823 Yellow Rear Deck. Model-Yellow-WhiteYellow Rear Deck. Model-Yellow-White
-
56291003824 White Rear Deck. Model-White-WhiteWhite Rear Deck. Model-White-White
-
56291003825 Magenta Rear Deck. Model-Magenta-WhiteMagenta Rear Deck. Model-Magenta-White
-
56291003826 Orange Rear Deck. Model-Orange-WhiteOrange Rear Deck. Model-Orange-White
-
57291003386 Grey Trim. Model-Gray-WhiteGrey Trim. Model-Gray-White
-
57291003827 Yellow Trim. Model-Yellow-WhiteYellow Trim. Model-Yellow-White
-
57291003828 White Trim. Model-White-WhiteWhite Trim. Model-White-White
-
57291003829 Magenta Trim. Model-Magenta-WhiteMagenta Trim. Model-Magenta-White
-
57291003830 Orange Trim. Model-Orange-WhiteOrange Trim. Model-Orange-White
-
58291003387 LH Knee PadsLH Knee Pads
-
59291003388 RH Knee PadsRH Knee Pads
-
61291003390 Rear Access CoverRear Access Cover
-
62291003404 ConsoleConsole
-
63291003439 CoverCover
-
64291003440 Rear SupportRear Support
-
67291003694 Rear Support MountRear Support Mount
-
68291003696 LH Panel TrimLH Panel Trim
-
69291003697 RH Panel TrimRH Panel Trim
-
70291003702 CapCap
-
71291003793 InsertInsert
-
72291003880 Oval WasherOval Washer
-
73291003883 LH Rear Panel TrimLH Rear Panel Trim
-
74291003884 RH Rear Panel TrimRH Rear Panel Trim
-
76292000933 U-ClampU-Clamp
-
78293050001 Flat WasherFlat Washer
-
80293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
82291004155 Front Access Cover. Includes 83Front Access Cover. Includes 83
-
83293300121 O-RingO-Ring
-
85293250340 Seal JointSeal Joint
-
87293250341 Seal JointSeal Joint
-
90293830005 Rubber BumperRubber Bumper
-
90293830005 Rubber BumperRubber Bumper
-
92705000321 Oval WasherOval Washer
