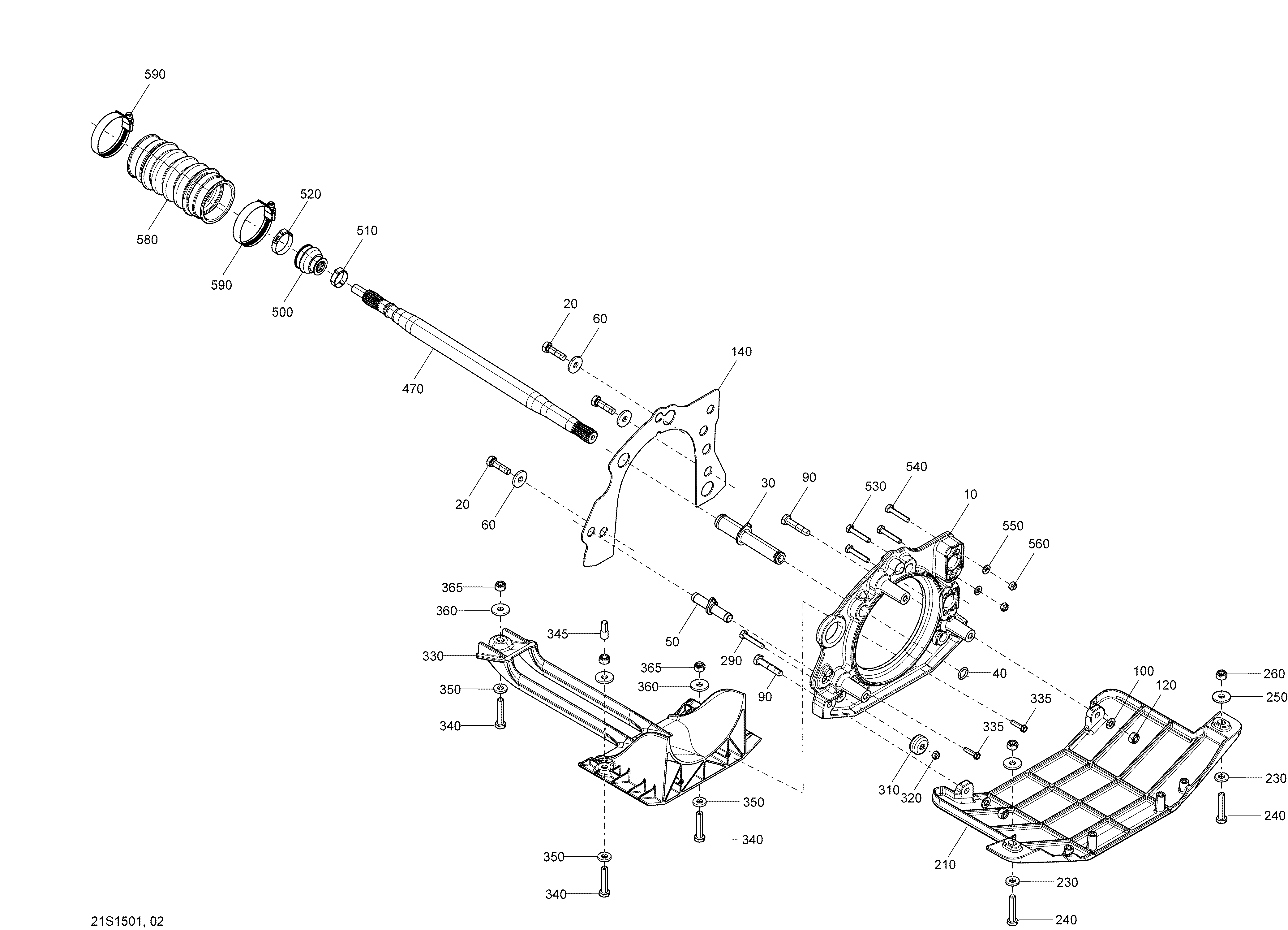

05- Propulsion _21S1501 для BRP SPARK ACE 900 (2up) - 2015
-
№АртикулНазвание
-
10271001886 Pump SupportPump Support
-
20250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
30271001818 Water Straight Fitting, InWater Straight Fitting, In
-
40293300006 O-RingO-Ring
-
50271001817 Water Straght Fitting, OutWater Straght Fitting, Out
-
60279000164 Flat WasherFlat Washer
-
90250000230 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
100234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
120232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
140271001811 Watertight SealWatertight Seal
-
210271001840 Riding PlateRiding Plate
-
230293050001 Flat WasherFlat Washer
-
240207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
250279000164 Flat WasherFlat Washer
-
260232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
290207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
310271001920 Anode ZincAnode Zinc
-
320232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
330271001804 Pump GratePump Grate
-
335211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
340207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
345293000105 Cap PlugCap Plug
-
350293050001 Flat WasherFlat Washer
-
360279000164 Flat WasherFlat Washer
-
365232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
470271001923 Drive ShaftDrive Shaft
-
500295501148 Protector Sleeve kit. Include 510 + 520Protector Sleeve kit. Include 510 + 520
-
510509000442 Oetiker Gear ClampOetiker Gear Clamp
-
520509000181 Oetiker Gear ClampOetiker Gear Clamp
-
530207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
540207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
550234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
560232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
580271001921 BellowBellow
-
590293650079 Norma ClampNorma Clamp
