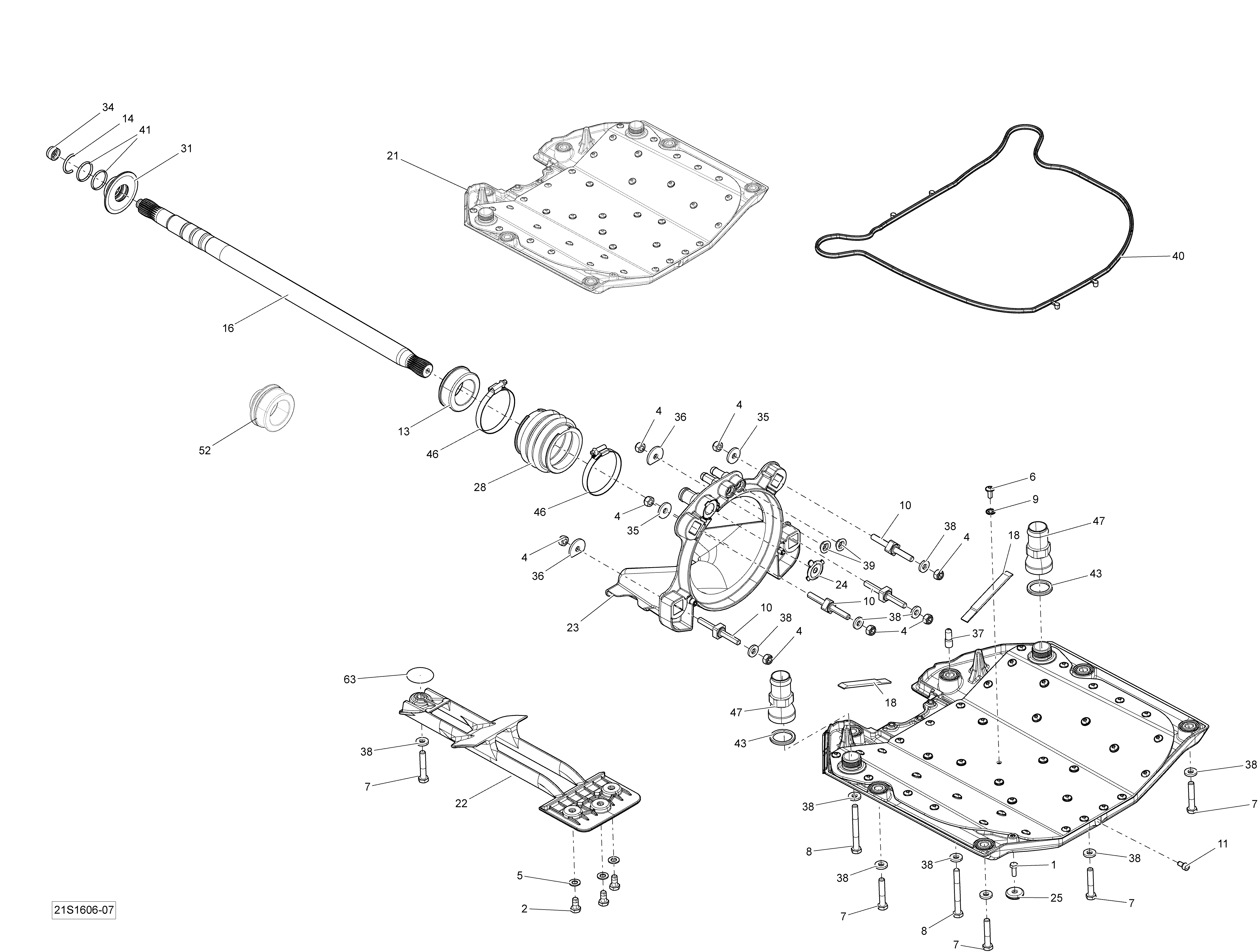

05- Propulsion для BRP GTI-GTR-GTS - 2016
-
№АртикулНазвание
-
1207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
2207381660 Hex. Screw M8 X 16, Scotch GripHex. Screw M8 X 16, Scotch Grip
-
4232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
5234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
7250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
8250000812 Hexagonal Head Cap Screw M8 X 75Hexagonal Head Cap Screw M8 X 75
-
9250200114 Sealing WasherSealing Washer
-
10250300046 Square StudSquare Stud
-
11250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
14271001575 C-Clip. Except Engine 215C-Clip. Except Engine 215
-
14271001577 C-Clip. Engine 215C-Clip. Engine 215
-
16271001719 Drive Shaft. Engine 215Drive Shaft. Engine 215
-
16271001724 Drive Shaft. Except Engine 215Drive Shaft. Except Engine 215
-
18293250087 Gasket, NeopreneGasket, Neoprene
-
21271001860 Riding Plate Ass'yRiding Plate Ass'y
-
22271001763 Pump GratePump Grate
-
23271001964 Pump SupportPump Support
-
24271001903 ReducerReducer
-
25271001920 Anode ZincAnode Zinc
-
28271001933 BellowBellow
-
31295501152 Carbon Ring Kit. Except Engine 215Carbon Ring Kit. Except Engine 215
-
31295501153 Carbon Ring Kit. Engine 215Carbon Ring Kit. Engine 215
-
34272000173 Drive Shaft PlugDrive Shaft Plug
-
35279000164 Flat WasherFlat Washer
-
36279000326 Flat WasherFlat Washer
-
37293000105 Cap PlugCap Plug
-
38293050001 Flat WasherFlat Washer
-
39293250084 Watertight SealWatertight Seal
-
40293250235 SealSeal
-
41293300044 O-Ring. Except Engine 215O-Ring. Except Engine 215
-
41293300107 O-Ring. Engine 215O-Ring. Engine 215
-
43293300121 O-RingO-Ring
-
46293650079 Norma ClampNorma Clamp
-
47293710111 Straight Plastic FittingStraight Plastic Fitting
-
52295501152 Carbon Ring Kit. Except Engine 215Carbon Ring Kit. Except Engine 215
-
52295501153 Carbon Ring Kit. Engine 215Carbon Ring Kit. Engine 215
-
63293830047 Protector DiskProtector Disk
