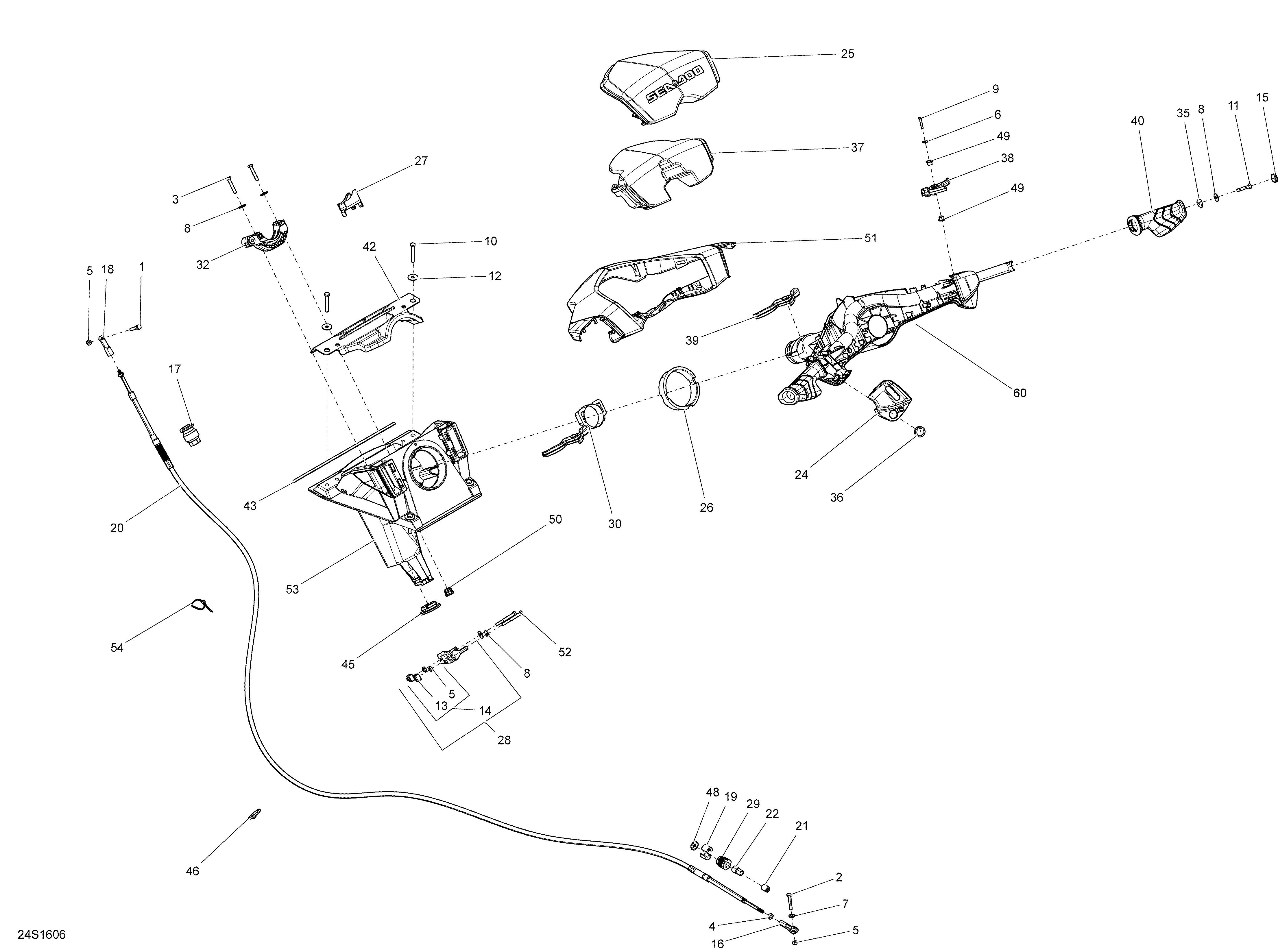

07- Steering для BRP GTI-GTR-GTS - 2016
-
№АртикулНазвание
-
1207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
3207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
4211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
5232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
6234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
10245064560 Hex Cap Screw M6X1.0X45 S.GripHex Cap Screw M6X1.0X45 S.Grip
-
11250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
12250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
13269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
14269501166 Nut Housing Ass'yNut Housing Ass'y
-
15277000203 Cap, BlackCap, Black
-
16277000775 Ball JointBall Joint
-
17277000782 Ajustment KnobAjustment Knob
-
18277001180 Ball JointBall Joint
-
19277001527 Half RingHalf Ring
-
20277001578 Steering Cable Ass'ySteering Cable Ass'y
-
21277001582 Small BootSmall Boot
-
22277001583 Large BootLarge Boot
-
24277001625 RH Housing Cover. GTI LTDRH Housing Cover. GTI LTD
-
24277001755 RH Housing Cover. GTI Package SERH Housing Cover. GTI Package SE
-
24277001755 RH Housing Cover. GTI Package STDRH Housing Cover. GTI Package STD
-
24277001755 RH Housing Cover. GTRRH Housing Cover. GTR
-
24277001861 RH Housing Cover. GTSRH Housing Cover. GTS
-
24277001626 LH Housing Cover. GTI LTDLH Housing Cover. GTI LTD
-
24277001626 LH Housing Cover. GTRLH Housing Cover. GTR
-
24277001860 LH Housing Cover. GTI Package SELH Housing Cover. GTI Package SE
-
24277001860 LH Housing Cover. GTI Package STDLH Housing Cover. GTI Package STD
-
24277001860 LH Housing Cover. GTSLH Housing Cover. GTS
-
25277001769 White Steering PadWhite Steering Pad
-
25277001769 White Steering PadWhite Steering Pad
-
25277001622 Silver Steering PadSilver Steering Pad
-
25277001622 Silver Steering PadSilver Steering Pad
-
25277001904 Black Steering PadBlack Steering Pad
-
25277001904 Black Steering PadBlack Steering Pad
-
25277001904 Black Steering PadBlack Steering Pad
-
26277001653 Wear RingWear Ring
-
27277001654 SpacerSpacer
-
28277001655 Thrust Support Ass'yThrust Support Ass'y
-
29277001729 Steering Cable LockSteering Cable Lock
-
30277001741 Wear RingWear Ring
-
32277001779 Support Ass'ySupport Ass'y
-
35277001863 Insert Grip HandleInsert Grip Handle
-
36277001887 Knob Switch, RedKnob Switch, Red
-
36277001888 Knob Switch, GreyKnob Switch, Grey
-
37277001921 Handle Bar FoamHandle Bar Foam
-
38277001944 Throttle HandleThrottle Handle
-
39277001945 Reverse HandleReverse Handle
-
39277001945 Reverse HandleReverse Handle
-
40277001946 Handle Grip RHHandle Grip RH
-
40277001958 Handle Grip LHHandle Grip LH
-
42293000116 DeflectorDeflector
-
43293250008 GasketGasket
-
45293720090 Cable GrommetCable Grommet
-
46293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
48293830063 Rubber WasherRubber Washer
-
49293900091 BushingBushing
-
50517302716 CapCap
-
51277001969 Steer. Cover. GTISteer. Cover. GTI
-
51277001969 Steer. Cover. GTRSteer. Cover. GTR
-
51277001970 Steer. Cover. GTSSteer. Cover. GTS
-
52207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
53277001971 Support-AssSupport-Ass
-
54414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
60277001963 SteeringSteering
