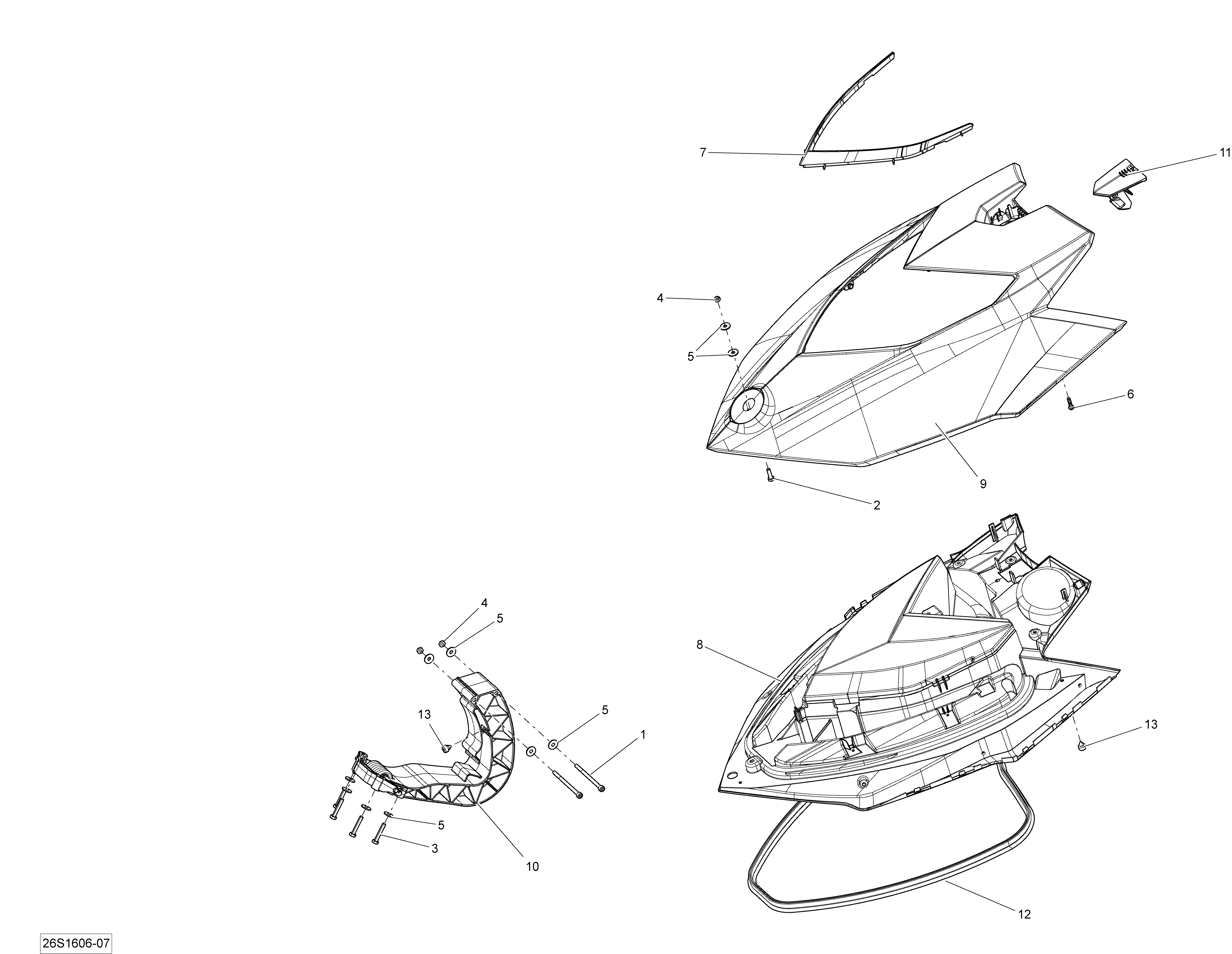

09- Front Cover для BRP GTI-GTR-GTS - 2016
-
№АртикулНазвание
-
1205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
2207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
3207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
7269501860 Front Moulding, ChromeFront Moulding, Chrome
-
7269502067 Manta Green Front MouldingManta Green Front Moulding
-
7269502067 Manta Green Front MouldingManta Green Front Moulding
-
7269502159 Bright Yellow Front CosmeticBright Yellow Front Cosmetic
-
7269501859 Black Front MouldingBlack Front Moulding
-
7269501859 Black Front MouldingBlack Front Moulding
-
7269501859 Black Front MouldingBlack Front Moulding
-
8269502196 Storage CoverStorage Cover
-
9269502042 Black Storage CoverBlack Storage Cover
-
9269502042 Black Storage CoverBlack Storage Cover
-
9269502042 Black Storage CoverBlack Storage Cover
-
9269502042 Black Storage CoverBlack Storage Cover
-
9269502043 White Storage CoverWhite Storage Cover
-
9269502043 White Storage CoverWhite Storage Cover
-
9269502065 Blue Storage CoverBlue Storage Cover
-
9269502158 Deep Pewter Storage CoverDeep Pewter Storage Cover
-
10269501944 Hinge Ass'yHinge Ass'y
-
11269700142 Latch LeverLatch Lever
-
12293250047 Neoprene SealNeoprene Seal
-
13293830005 Rubber BumperRubber Bumper
