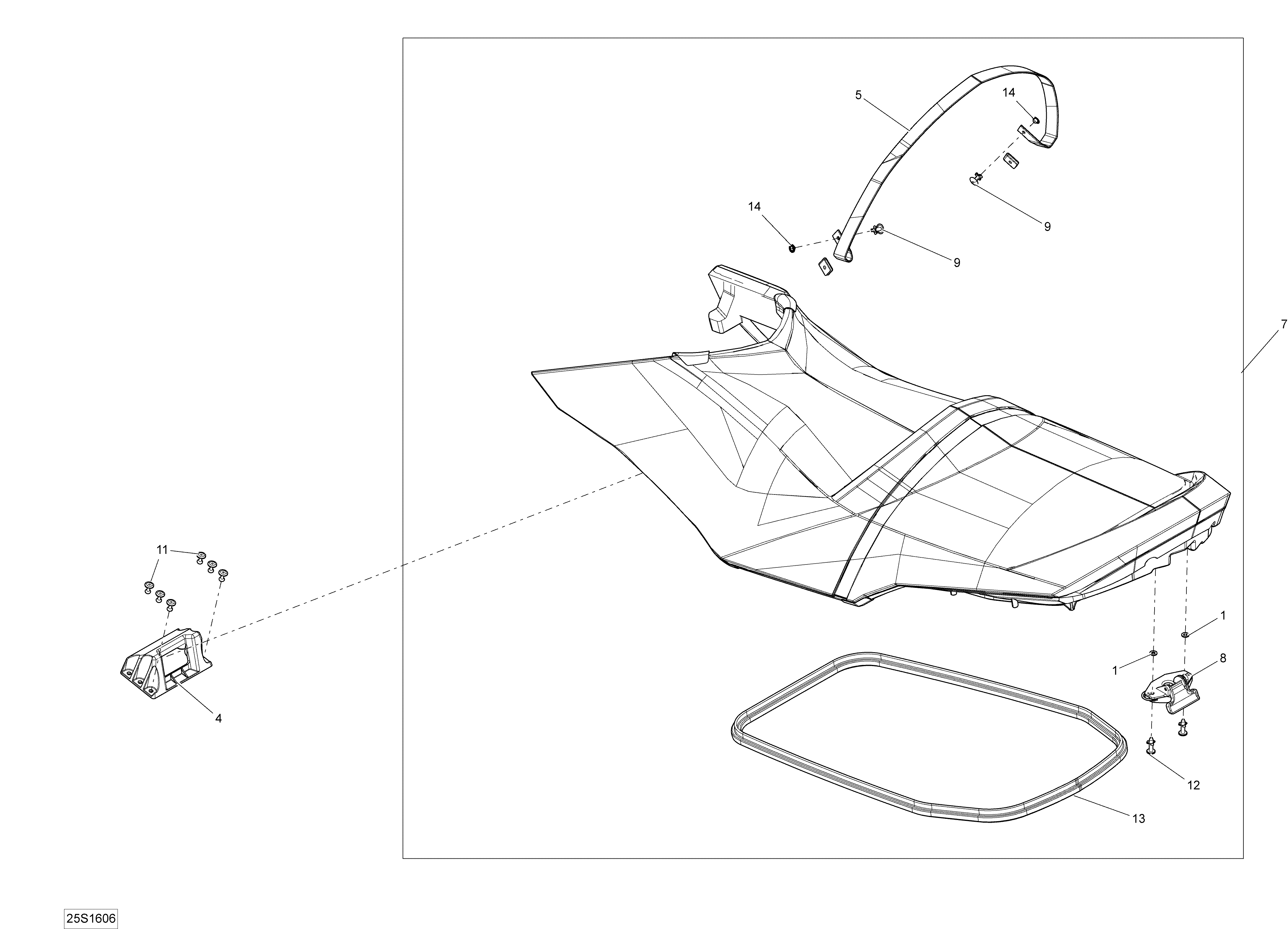

09- Seat для BRP GTI-GTR-GTS - 2016
-
№АртикулНазвание
-
1234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3269002350 RH Seat ProtectorRH Seat Protector
-
4269002151 Seat ReceptacleSeat Receptacle
-
5269001916 White Seat Strap. Model GTI Package STD Model White/ Orange crushWhite Seat Strap. Model GTI Package STD Model White/ Orange crush
-
5269002842 Blue Seat Strap. Model GTI Package STD White/ Blue MaldivesBlue Seat Strap. Model GTI Package STD White/ Blue Maldives
-
5269002849 Green Seat Strap. Model GTI Package STD White/ Manta GreenGreen Seat Strap. Model GTI Package STD White/ Manta Green
-
5269002087 Silver Seat Strap. Model GTI Package SE Model White/ Orange crushSilver Seat Strap. Model GTI Package SE Model White/ Orange crush
-
5269002907 Blue Seat Strap. Model GTI Package SE White/ Blue MaldivesBlue Seat Strap. Model GTI Package SE White/ Blue Maldives
-
5269002526 Gray Seat Strap. Model GTI Package LTDGray Seat Strap. Model GTI Package LTD
-
5269002863 Black Seat Strap. Model GTRBlack Seat Strap. Model GTR
-
7269002987 Seat Ass'y. Model GTSSeat Ass'y. Model GTS
-
7269002987 Seat Ass'y. Model GTI Package STD Model White/ Orange crushSeat Ass'y. Model GTI Package STD Model White/ Orange crush
-
7269002981 Seat Ass'y. Model GTI Package STD White/ Blue MaldivesSeat Ass'y. Model GTI Package STD White/ Blue Maldives
-
7269002983 Seat Ass'y. Model GTI Package STD White/ Manta GreenSeat Ass'y. Model GTI Package STD White/ Manta Green
-
7269002984 Seat Ass'y. Model GTI Package SE White/ Blue MaldivesSeat Ass'y. Model GTI Package SE White/ Blue Maldives
-
7269002985 Silver Seat Ass'y. Model GTI Package SE Model White/ Orange crushSilver Seat Ass'y. Model GTI Package SE Model White/ Orange crush
-
7269002985 Silver Seat Ass'y. Model GTI Package SE Black/WhiteSilver Seat Ass'y. Model GTI Package SE Black/White
-
7269002921 Seat Ass'y. Model GTI Package LTDSeat Ass'y. Model GTI Package LTD
-
7269002986 Seat Ass'y. Model GTRSeat Ass'y. Model GTR
-
8269700109 Latch Ass'yLatch Ass'y
-
9293150067 RivetRivet
-
11293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
12293150151 Rivet 1/4''Rivet 1/4''
-
13293200124 SealSeal
-
14293720067 GrommetGrommet
