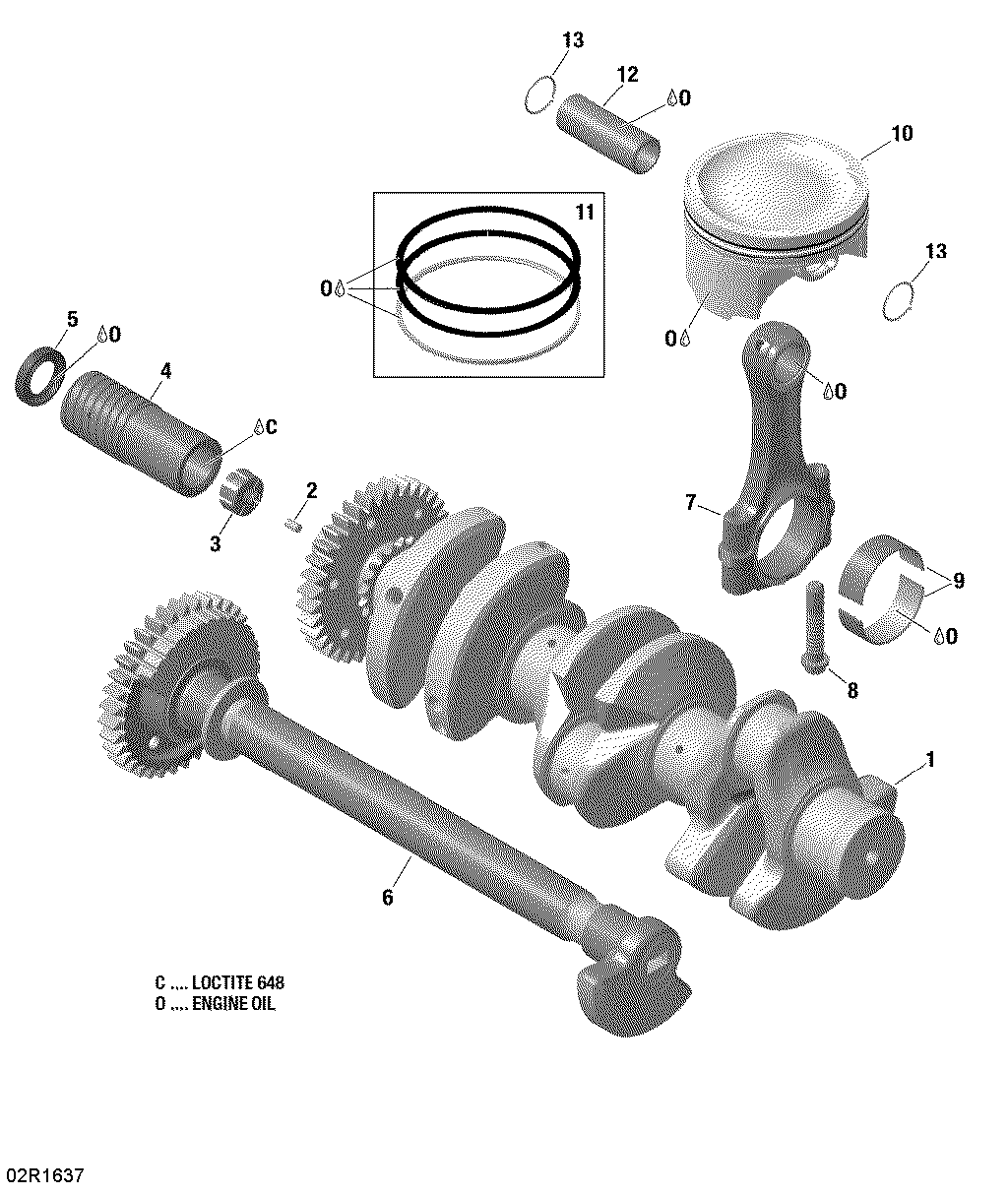

01- Crankshaft, Pistons And Balance Shaft - 300 для BRP RXP - 2016
-
№АртикулНазвание
-
1>2420819495 Crankshaft Ass'yCrankshaft Ass'y
-
2420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
3420660280 Stop SleeveStop Sleeve
-
4420947770 Output SleeveOutput Sleeve
-
5420630551 Sealing RingSealing Ring
-
6420820275 Balance Shaft Ass'yBalance Shaft Ass'y
-
7>8420917757 Connecting Rod Ass'yConnecting Rod Ass'y
-
8420640990 Connecting Rod ScrewConnecting Rod Screw
-
9420933523 Half-BearingHalf-Bearing
-
10>11420892738 Piston Ass'y, 99.94 mmPiston Ass'y, 99.94 mm
-
11420890385 Piston Set Ring, StandardPiston Set Ring, Standard
-
12420916472 Piston PinPiston Pin
-
13420245436 Piston CirclipPiston Circlip
