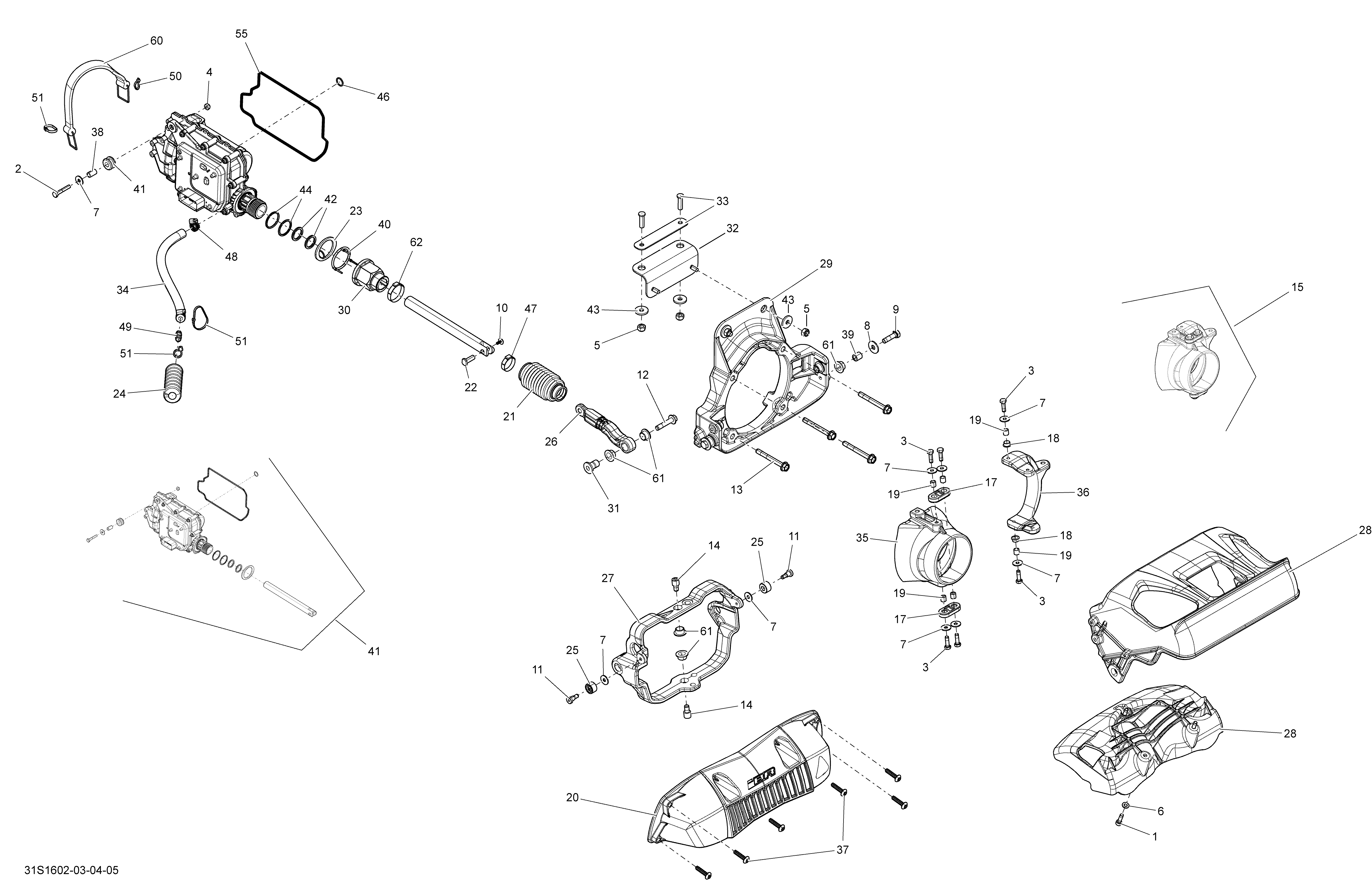

05- Reverse для BRP RXP - 2016
-
№АртикулНазвание
-
1205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
2207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
3207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
6234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
10250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
11250000775 Screw-Socket Shoulder M8X8Screw-Socket Shoulder M8X8
-
12250000834 Screw-Hex.Flange DIN.6921 S.GripScrew-Hex.Flange DIN.6921 S.Grip
-
13250000835 Screw-Hex.Flange DIN.6921 S.GripScrew-Hex.Flange DIN.6921 S.Grip
-
14250000837 Screw Socket S.GripScrew Socket S.Grip
-
15267000905 Nozzle Ass'yNozzle Ass'y
-
17268000058 Direction Lever ArmDirection Lever Arm
-
18268000059 BushingBushing
-
19268000060 SpacerSpacer
-
20268000162 GuardGuard
-
21268000186 BootBoot
-
22268000207 Shoulder PinShoulder Pin
-
23268000208 GasketGasket
-
24268000211 Inner BootInner Boot
-
25295501160 Roller Bushing KitRoller Bushing Kit
-
26268000256 Linkage ArmLinkage Arm
-
27268000247 Trimming RingTrimming Ring
-
28268000296 Gate Reverse Ass'y. Trim Ramp Kit 295501168Gate Reverse Ass'y. Trim Ramp Kit 295501168
-
29268000266 BracketBracket
-
30268000267 Ibr NutIbr Nut
-
31268000269 BushingBushing
-
32268000270 Ass'y BracketAss'y Bracket
-
33268000271 Ass'y BracketAss'y Bracket
-
34509000407 Hose 8 mmHose 8 mm
-
35267000727 Jet Pump NozzleJet Pump Nozzle
-
36268000148 Nozzle Lever, BlackNozzle Lever, Black
-
37250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
38271001020 SpacerSpacer
-
39271001039 SpacerSpacer
-
40277001977 Rubber GasketRubber Gasket
-
41278003292 Cal ActuatorCal Actuator
-
42279000108 O-RingO-Ring
-
43279000164 Flat WasherFlat Washer
-
44293300107 O-RingO-Ring
-
46293300187 O-RingO-Ring
-
47293650099 Crimp ClampCrimp Clamp
-
48293650171 Tridon Gear ClampTridon Gear Clamp
-
49293710157 Fitting-StraigFitting-Straig
-
50293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
51293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
60293850123 Strap-Fuel TankStrap-Fuel Tank
-
61293900007 Venturi BushingVenturi Bushing
-
62509000529 Oetiker Gear ClampOetiker Gear Clamp
