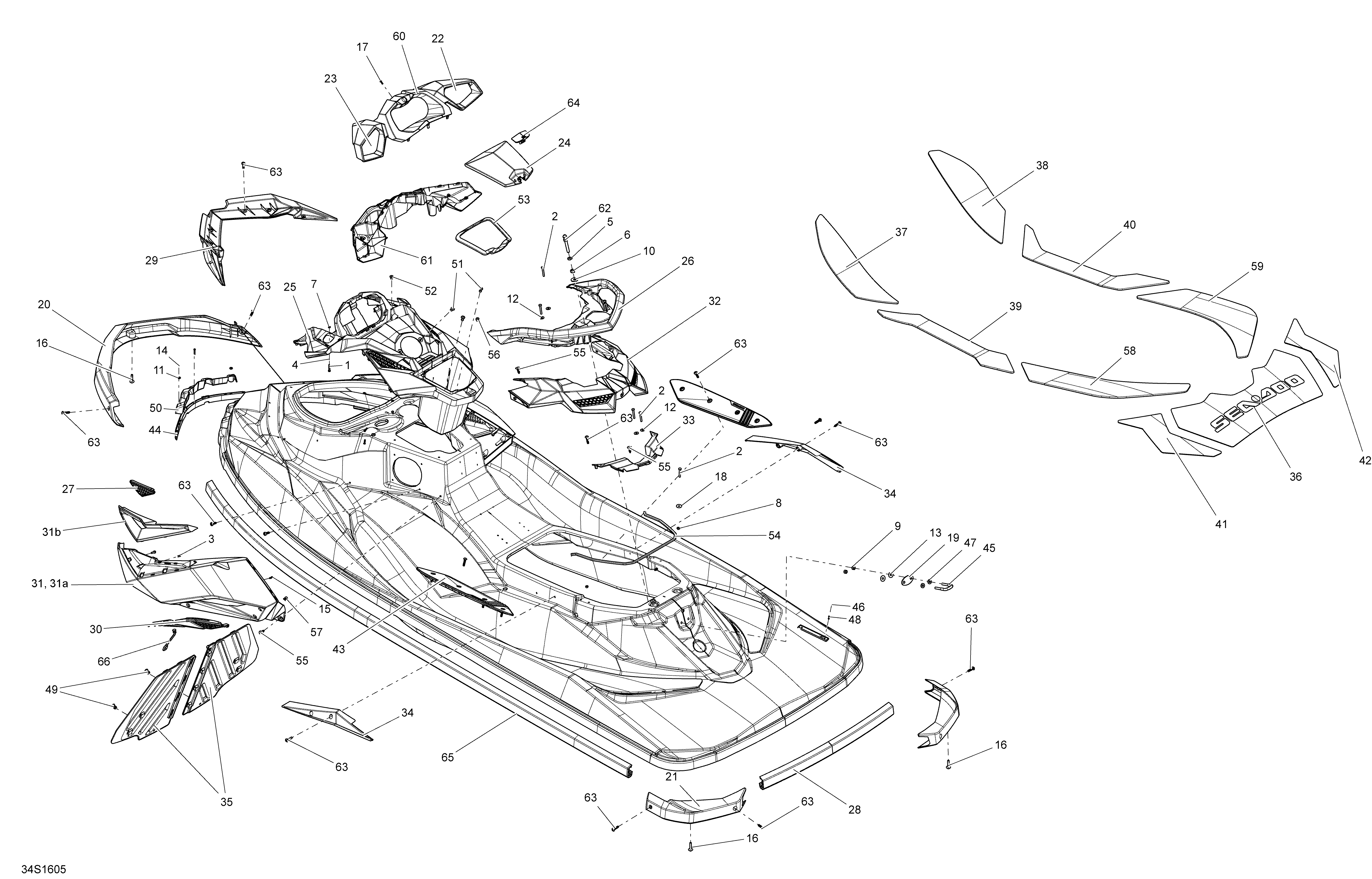

09- Body для BRP RXP - 2016
-
№АртикулНазвание
-
1207153060 Hex. Flanged Screw M5 X 30Hex. Flanged Screw M5 X 30
-
2207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
3211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
4211200035 Flat WasherFlat Washer
-
5232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
6232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
7232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
8232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
9232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
11234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
12234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
15250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
16250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
17250000735 Torx Screw K40 X 16Torx Screw K40 X 16
-
18250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
19291001386 Finition Plate, BlackFinition Plate, Black
-
20291004277 Front BumperFront Bumper
-
21291004278 LH Corner BumperLH Corner Bumper
-
21291004279 RH Corner BumperRH Corner Bumper
-
22291003090 RH MirrorRH Mirror
-
23291003091 LH MirrorLH Mirror
-
24291003331 Glove Box DoorGlove Box Door
-
25291004282 ConsoleConsole
-
26291003338 Black Rear Grab HandleBlack Rear Grab Handle
-
26291004414 White Rear Grab HandleWhite Rear Grab Handle
-
27291003344 RH Front GrillRH Front Grill
-
27291003343 LH Front GrillLH Front Grill
-
28291004304 BumperBumper
-
29291004367 DeflectorDeflector
-
30291003349 RH Side GrillRH Side Grill
-
30291003348 LH Side GrillLH Side Grill
-
31a291004314 Black LH Lateral Cosmetic. Model Color Red/BlackBlack LH Lateral Cosmetic. Model Color Red/Black
-
31b291004368 Red LH Front Cosmetic. Model Color Red/BlackRed LH Front Cosmetic. Model Color Red/Black
-
31a291004316 Black RH Lateral Cosmetic. Model Color Red/BlackBlack RH Lateral Cosmetic. Model Color Red/Black
-
31b291004369 Red RH Front Cosmetic. Model Color Red/BlackRed RH Front Cosmetic. Model Color Red/Black
-
31291004415 Silver LH Cosmetic Ass.. Model Color White Incl 30Silver LH Cosmetic Ass.. Model Color White Incl 30
-
31291004418 Silver RH Cosmetic Ass.. Model Color White, Incl 30Silver RH Cosmetic Ass.. Model Color White, Incl 30
-
32291004365 Cosmetic Ass.Cosmetic Ass.
-
33291003372 Vent CoverVent Cover
-
34291004431 Yellow RH Cosmetic. Model Color WhiteYellow RH Cosmetic. Model Color White
-
34291004428 Yellow LH Cosmetic. Model Color WhiteYellow LH Cosmetic. Model Color White
-
34291004363 Red LH Cosmetic. Model Color Red/BlackRed LH Cosmetic. Model Color Red/Black
-
34291004364 Red Cosmetic RH. Model Color Red/BlackRed Cosmetic RH. Model Color Red/Black
-
35291003391 Divider Ass'yDivider Ass'y
-
36291003586 Platform CarpetPlatform Carpet
-
37291003587 LH Front CarpetLH Front Carpet
-
38291003588 RH Front CarpetRH Front Carpet
-
39291003589 LH Center Front CarpetLH Center Front Carpet
-
40291003591 RH Center Front CarpetRH Center Front Carpet
-
41291003593 LH Rear CarpetLH Rear Carpet
-
42291003594 RH Rear CarpetRH Rear Carpet
-
43291004317 RHFootrestRHFootrest
-
43291004319 LH FootrestLH Footrest
-
44291003897 Deck NoseDeck Nose
-
45292000933 U-ClampU-Clamp
-
46293000014 Black Snap CapBlack Snap Cap
-
47293050001 Flat WasherFlat Washer
-
48293150016 Rivet 1/8''Rivet 1/8''
-
49293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
50291003704 Bumper SupportBumper Support
-
51293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
52293150186 Pop Rivet 3/16Pop Rivet 3/16
-
53293250265 Urethane SealUrethane Seal
-
54293250289 SealSeal
-
55293730006 Black DartBlack Dart
-
56293830005 Rubber BumperRubber Bumper
-
57414644300 DartDart
-
58291003577 LH Center Rear CarpetLH Center Rear Carpet
-
59291003578 RH Center Rear CarpetRH Center Rear Carpet
-
60291004261 Bezel Ass'yBezel Ass'y
-
61291004271 Mirror SupportMirror Support
-
62291003877 Stud SeatStud Seat
-
63250000710 Torx Screw M6 X 3Torx Screw M6 X 3
-
63250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
64264000091 Latch, BlackLatch, Black
-
65291004304 BumperBumper
-
66269502111 Holding StrapHolding Strap
